CIS Talkback System Master Station P-3101

P-3101

Item Number: 4000016774

CIS Talkback Master Station

  • Complies with IEC 60945 Standard for Marine Equipment
  • DNV Type Approval
  • CCS Type Approval
Marine 40x40 ico Onboard communication

CIS Talkback Master Station P-3101

Enhanced Maritime Communication with the P-3101

The CIS Talkback Master Station P-3101 strengthens maritime operations through a comprehensive communication system. Designed to facilitate seamless communication, this unit connects with up to 10 substations/loudspeaker lines, ensuring broad coverage across the vessel.

Features include:

  • 10 Substation/Loudspeaker Lines: Expands communication reach onboard.
  • 4 Control Outputs: For external call signal devices, compatible with substation types P-9003, P-9016, P-9135.
  • Dual 12W Output Power: Offers robust sound clarity, further expandable with line amplifiers.
  • Integrated Audio Controls: Includes an integrated microphone and loudspeaker, plus connections for gooseneck or handheld microphones and additional external speakers.

Designed for operational efficiency and safety, the P-3101 supports critical communication needs with point-to-point, group, and all-call functionality alongside emergency Public Address capabilities.

Mechanical

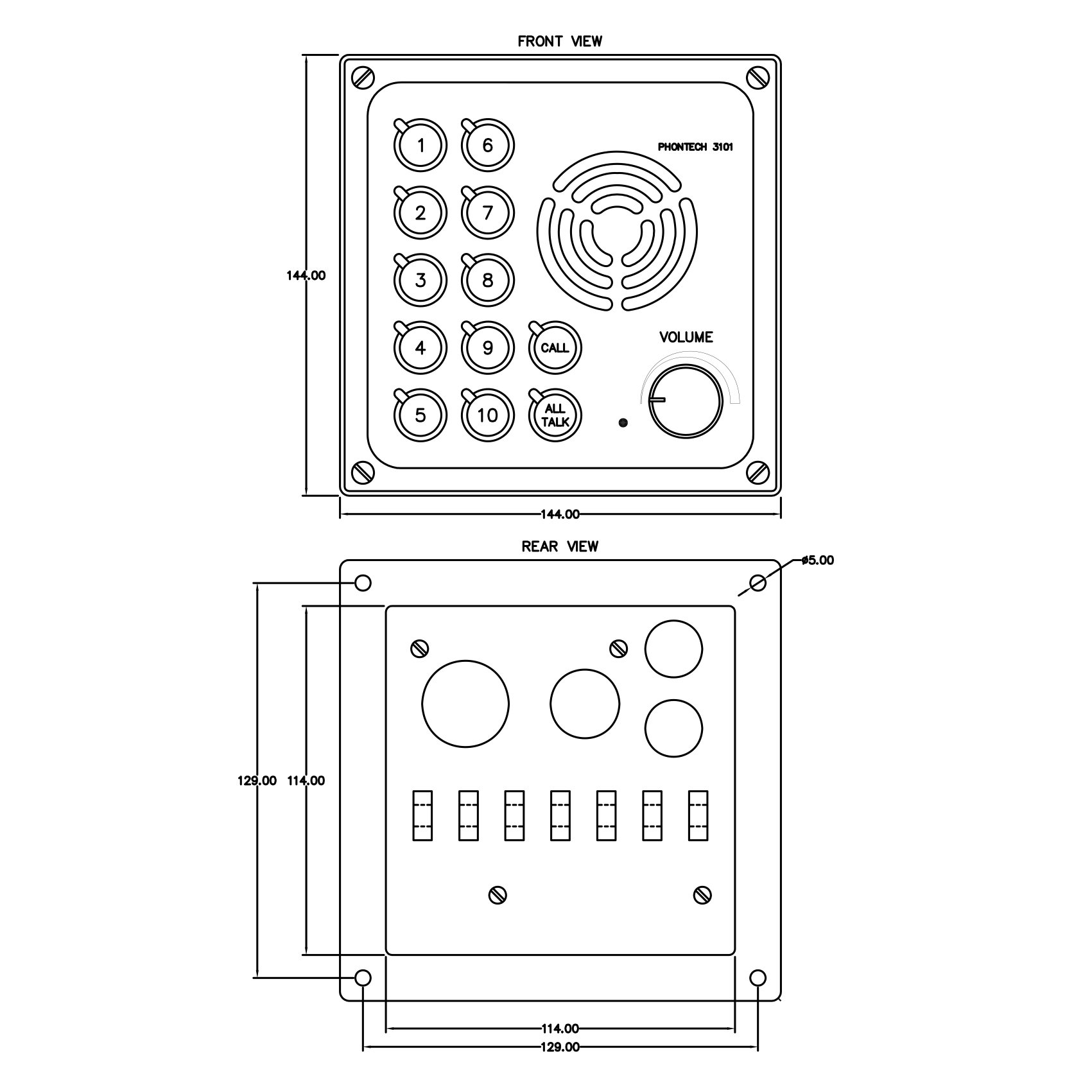

Dimensions (WxHxD) 144x144x100 mm
Weight 2.5 kg
Color RAL 9005
Material Aluminium / PC
Mounting Flush / Console
Fixing 4 x M4 bolts
Access Front
Cable Entry Rear
Electrical
Power Supply 24 VDC (22-32 VDC)
Power Consumption 45W (peak), 5W (typical)
Fuse 5x20 mm, 2A T
Heat Dissipation (typical/max) < 5W / 20W
Termination Screw terminals ≤ 1.5mm2
Compass Safe Distance > 2.2 m
Amplifier(s)
Frequency Range 300-3400 Hz
Power Output 2 x 10W / 4Ω (Substation Lines 1-5 and 6-10)
Environmental
Temperature -15°C to +55°C
Humidity +93% (at +40°C)
Ingress Protection Rating IP-22

P-9029

Headset with boom mic, headband, and 10m cable

P-9026

Dimmer module for CIS P-31XX Master Stations

Date Name Category Size Document
18.12.2024 A100K12298 CIS P-3101 Quick Guide_WEB_1.pdf Manual 420.26 KB Login to download
8.11.2024 CCS TA Certificate - CIS 31xx - 2029.08.26 - BG24PTA00002_03.pdf Certificate 310.58 KB Download
2.01.2024 4000016774 P-3101 CAD Drawing CAD 2D 935.58 KB Login to download
21.08.2023 CIS DNV Type approval - Rev.2 Certificate 467.33 KB Download
9.08.2023 MD-SDoC-4000016774-IHM-8003-41772-78438 Declaration 72.17 KB Login to download
