Goose Neck Microphone, 30 cm

Item Number: 4000017343

Additional gooseneck microphone for CIS Talkback Master Stations

  • Additional microphone for CIS 31xx Master Stations
  • 30 cm
  • Flexible positioning
  • Dynamic microphone
  • Noise Cancelling



Marine 40x40 ico Onboard communication





General

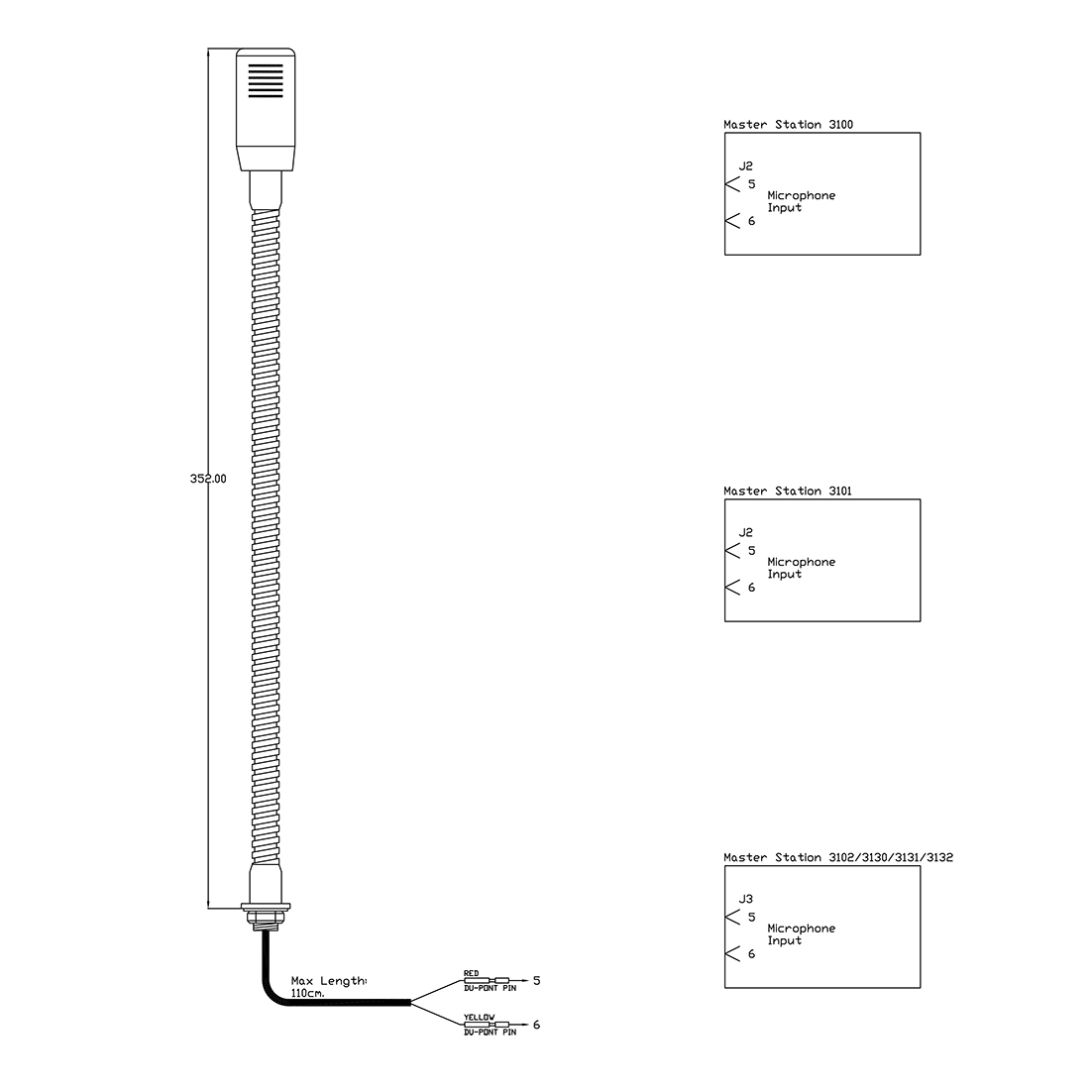

Length Apprx. 35 cm (incl. microphone capsule)
Termination Prepared for J2 (P-3100/P-3101) /J3 (P-3102/P-3130/P-3132)
Microphone 220 Ω ±30 %, sensitivity -57 dB ±3 dB/ 0 dB=1v/pa at 1kHz, frequency response: 50Hz-6KHz
Temperature -15 to +55 C
Humidity < 90%
Protection IP-20
Weight 0.3 kg
Mouning hole Ø: 10mm
Panel Thickness <3 mm
