CIS Talkback System Master Station P-3132

P-3132

Item Number: 4000016787

Remote Talkback Master Station

  • Complies with IEC 60945 Standard for Marine Equipment
  • DNV Type Approval
  • CCS Type Approval
Marine 40x40 ico Onboard communication

CIS Remote Talkback Master Station P-3132

Enhanced Maritime Communication Compliance: The P-3132

The CIS Remote Talkback Master Station P-3132 is a robust solution for maritime communication, complying with IEC 60945 Standard for Marine Equipment and featuring DNV type approval and NORSOK compatibility. This unit supports up to 15 substations and offers versatile control for comprehensive onboard communication strategies.

Highlights include:

  • Comprehensive Communication Network: Supports communication with the master station and 3 other remote control units.
  • Integrated Audio: Features both an integrated microphone and loudspeaker, with additional connections for enhanced audio options.
  • Volume Control & Power: Front volume control with 12W output power for clear sound across all environments.
  • IEC 60945 Compliance: Meets strict standards for marine equipment, ensuring reliability and safety.

Designed for advanced communication needs, the P-3132 supports direct communication with the P-3130 and other remote stations, offering point-to-point, group, and all calls, along with emergency Public Address capabilities.

Mechanical

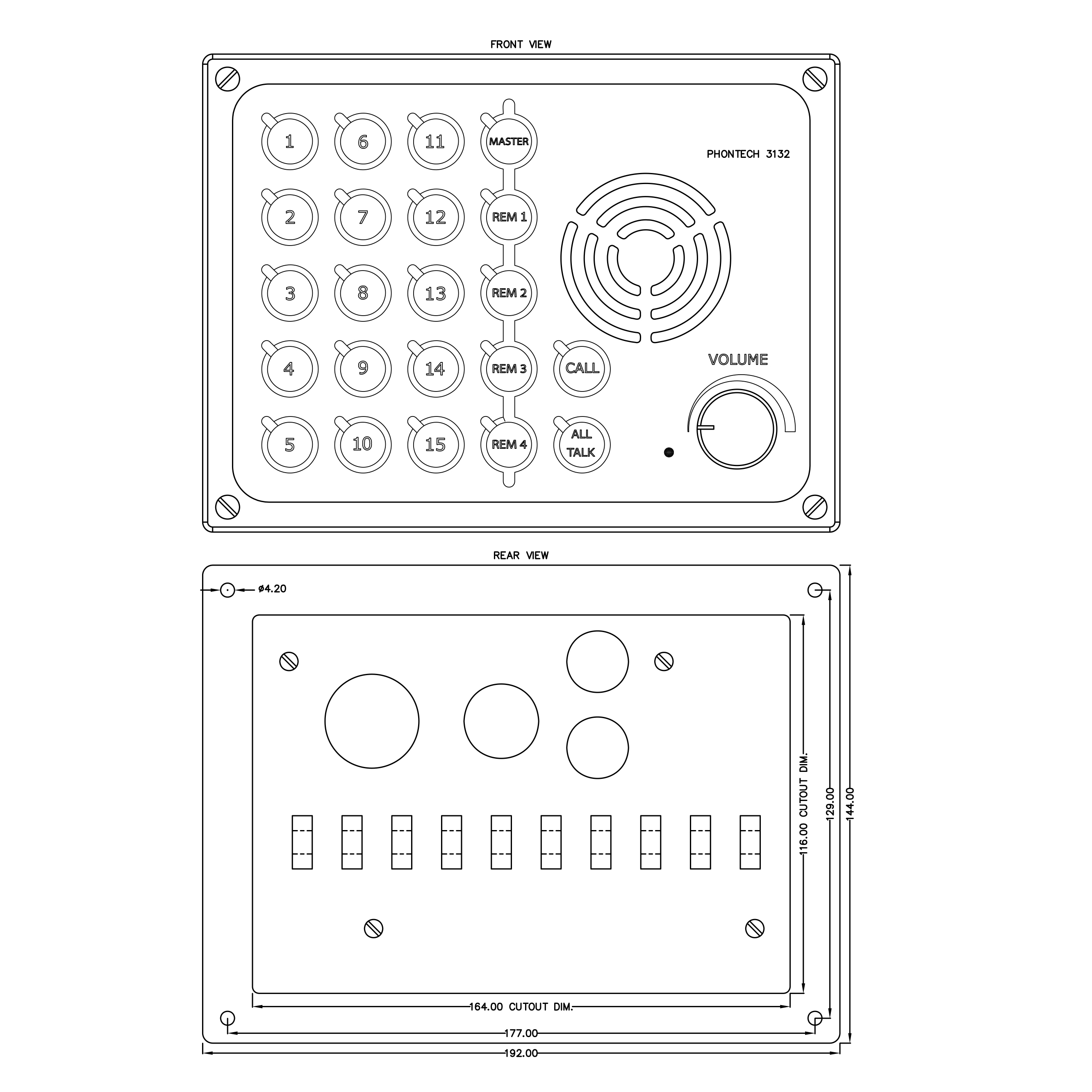

Dimensions (WxHxD) 192x144x100 mm
Weight 1.5 kg
Color RAL 9005
Material Aluminium / PC
Mounting Flush / Console
Fixing 4 x M4 bolts
Access Front
Cable Entry Rear
Electrical
Power Supply 24 VDC (22-32 VDC)
Frequency Range 300-3400 Hz
Power Consumption 25W (peak), 3W (typical)
Fuse 5x20 mm, 2A T
Heat Dissipation (typical/max) < 3W / 10W
Termination Screw terminals ≤ 1.5mm2
Compass Safe Distance > 2.2 m
Environmental
Temperature -15°C to +55°C
Humidity +93% (at +40°C)
Ingress Protection Rating IP-22



P-9029

Headset with boom mic, headband, and 10m cable

P-9026

Dimmer module for CIS P-31XX Master Stations
