P-3131

Item Number: 4000016789

Remote Talkback Master Station

  • Complies with IEC 60945 Standard for Marine Equipment
  • DNV Type Approval
  • CCS Type Approval
Marine 40x40 ico Onboard communication

CIS Remote Talkback Master Station P-3131

Streamlined Maritime Communication: The P-3131

The CIS Remote Talkback Master Station P-3131 enhances the Command Intercom System with its watertight design and remote operation capabilities. Designed for seamless integration with the Master Station P-3130, it enables clear communication across 15 substations and direct interaction with Master and Remote Master Stations (type P-3132).

Key features include:

  • 15 Substation/Loudspeaker Lines: For extensive communication reach.
  • Remote Operation: Communicate directly with the P-3130 and P-3132 units.
  • Dedicated Control Outputs: For external call signal devices.
  • Flexible Audio Setup: Integrated microphone with connections for handheld microphones and additional external loudspeakers.

Practical for various maritime settings, the P-3131 facilitates essential communication functions, including point-to-point, group, and all calls, plus emergency Public Address, requiring an external loudspeaker for optimal operation.

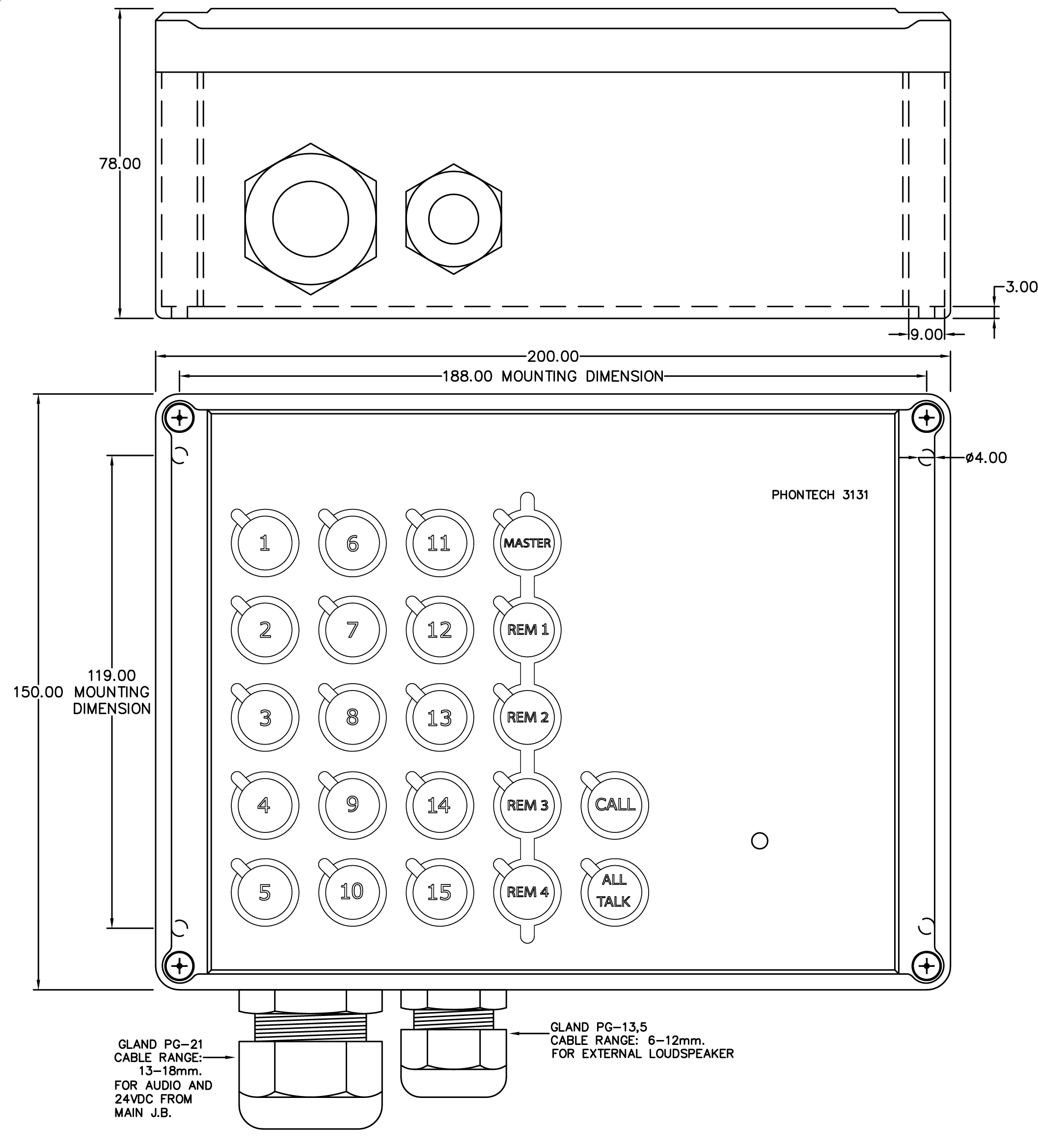

Mechanical
Dimensions (WxHxD) 200x150x78 mm
Weight 0.75 kg
Color RAL 7035/9005
Material Polycarbonate
Mounting Bulkhead
Fixing 4 x M4 bolts
Access Front
Cable Entry Bottom
Gland Type 1x PG 21 / 1x PG 13.5
Electrical
Power Supply 24 VDC (22-32 VDC)
Frequency Range 300-3400 Hz
Power Consumption 25W (peak), 3W (typical)
Fuse 5x20 mm, 2A T
Heat Dissipation (typical/max) < 3W / 10W
Termination Screw terminals ≤1.5 mm2
Compass Safe Distance > 5 m
Environmental
Temperature -15°C to +55°C
Humidity +93% (at +40°C)
Ingress Protection Rating IP-55

Date Name Category Size Document
8.11.2024 CCS TA Certificate - CIS 31xx - 2029.08.26 - BG24PTA00002_03.pdf Certificate 310.58 KB Download
21.08.2023 CIS DNV Type approval - Rev.2 Certificate 467.33 KB Download
9.08.2023 MD-SDoC-4000016789-IHM-8003-41808-90431 Declaration 72.19 KB Login to download
24.02.2023 4000016789 P-3131 CAD Drawing.zip CAD 2D 841.01 KB Login to download
17.11.2022 CIS_31xx_DoC_11.11.2022 Declaration 82.25 KB Download
