P-9217

Item Number: 4000014199

Handheld Microphone

  • Dynamic Omnidirectional Microphone
  • PTT
  • Curled cable and plug
  • Saltwater resistant
  • Weatherproof
  • Complies with IEC 60945 Marine Equipment

The P-9217 is a weatherproof handheld microphone. The unit comes with a plug for easy connection and an omnidirectional saltwater resistant microphone.

Mechanical
Microphone type Dynamic Omnidirectional

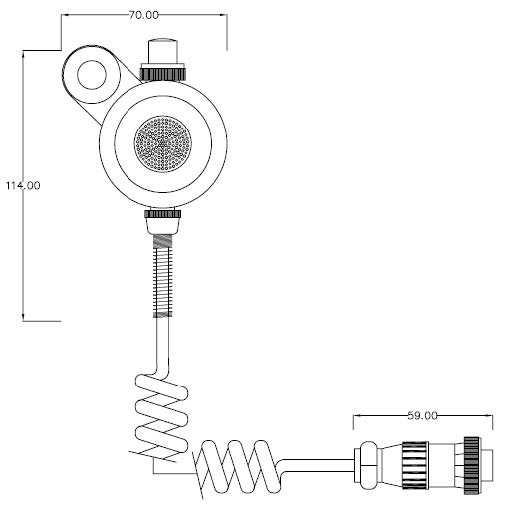

Dimensions (WxHxD) 70x114x37 mm
Weight 0.25 kg
Color Black
Material Shock-proof plastic housing
Fixing Suspension eye
Electrical
Impedance ~200Ω
Power Supply from Central
Termination Plug, AMP 4-pin
Compass Safe Distance > 5 m
Environmental
Temperature -25°C to +55°C (Storage: -25°C to +70°C)
Humidity +93% (at +40°C)
Ingress Protection Rating IP-47
