2810011077-CAB-AVF-S-115

CAB-AVF-S-115

Item Number: 2810011077

Active ventilation for CABxx with a steel door, 115 VAC

  • The package consists of:
    • Fan-and-Filter Unit: front-door mounting, 148.5x148.5 mm, 115 VAC
    • Internal Thermostat (with mounting plate)
    • Roof Air Outlet (non-powered)
  • IP22

The CAB-AVF-S-115 active ventilation package is a cost-effective solution designed for the CABxx series steel-door cabinets. It offers easy installation and simple maintenance, making it suitable for both new and existing enclosures. The fan-and-filter unit supports multiple mounting positions—front, side, or rear—allowing flexible integration based on airflow needs. This package provides reliable airflow management and helps maintain stable operating temperatures inside the different cabinets.

Note: For CAB24-FWD-V2, please add one additional fan:

  • 2810011033 - Fan-and-Filter Unit: front-door mounting, 148.5x148.5 mm, 115 VAC





GENERAL (Fan-and-Filter unit)
Rated operating voltage 115 V, 1~, 50/60 Hz
Power consumption At 50 Hz: 15.4 W / At 60 Hz: 15.8 W
Rated current max. At 50 Hz: 0.2 A / At 60 Hz: 0.21 A
Air throughput, unimpeded airflow (with chopped-fibre filter) At 50 Hz: 53 m³/h / At 60 Hz: 64 m³/h
Air throughput, unimpeded airflow (with pleated filter) At 50 Hz: 63 m³/h / At 60 Hz: 72 m³/h
Air throughput with matching outlet filter including chopped-fibre filter At 50 Hz: 40 m³/h / At 60 Hz: 46 m³/h
Pre-fuse Miniature circuit-breaker/fuse: 4 A
IP protection category to IEC 60 529 IP 54-56 (depending on filter type)

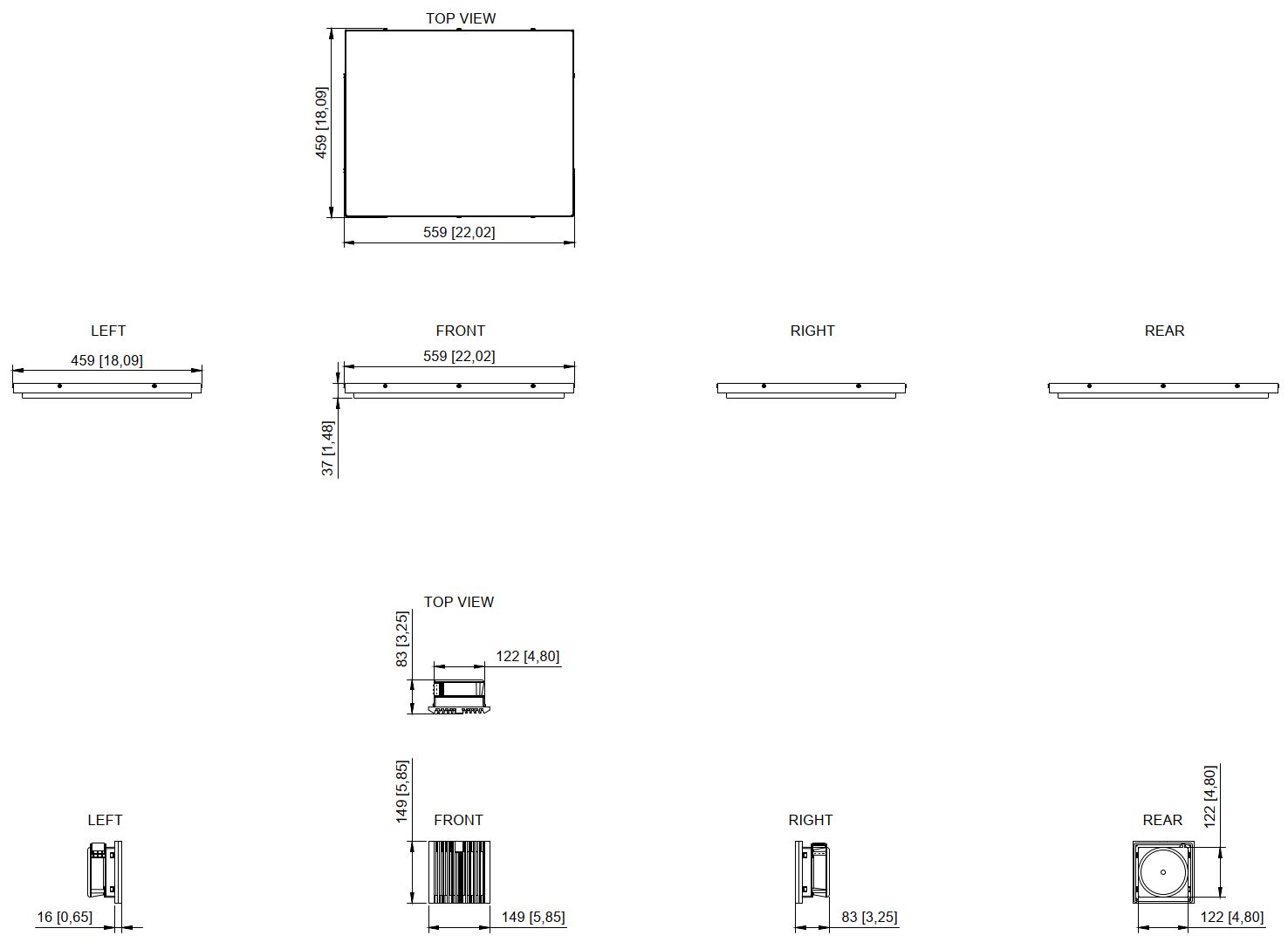

Dimensions W x D x H 148.5 x 82.5 x 148.5 mm
Installation depth 64 mm
Weight 0.859 kg
GENERAL (Internal Thermostat)
Rated operating voltage 24-230 VAC, 1~ / 24-60 VDC
Dimensions W x D x H 71 x 33.5 x 71 mm
Weight 0.12 kg
GENERAL (ROOF AIR OUTLET)
Dimensions W x D x H 559 x 37 x 459 mm
IP Protection IP22
2810010113-CA42F-V2-Image

CAB42F-V2

Floor cabinet 19" 42HU 600x600x2000mm fixed frame

2810010114-CAB42FW-V2-Image

CAB42FW-V2

Floor cabinet 19" 42HU 800x600x2000mm fixed frame

2810010121-CAB42FD-V2-Image

CAB42FD-V2

Floor cabinet 19" 42HU 600x800x2000mm fixed frame

42 units high cabinet which is 800mm wide and 1000mm deep

CAB42FWDD

Floor cabinet 19" 42HU 800x1000x2000mm fixed frame

Date Name Category Size Document
CAB-AVF-S-115_Declaration_of_conformity Declaration 176.78 KB Download
2810011077 - CAB-AVF-S-115_rev01 CAD 2D 260.94 KB Login to download
MD-SDoC-2810011077-IHM-8003-70767-154316 Declaration 53.83 KB Login to download
