CAB-AVT-W-115-230

CAB-AVT-W-115-230

Item Number: 2810011078

Active ventilation for CABxx with glass door, 115-230VAC

  • A fan in the cabinet top (Top fan unit 550x340x42mm 280m3/h)
  • Enclosure internal thermostat
  • Thermostat Mounting plate
  • Air inlet
  • IP20

CAB-AVT-W-115-230 is active ventilation for CABxx with a glazed door. It operates on voltages between 100 V - 240 V, 1~, 50 Hz/60 Hz.

The top ventilation unit is equipped with 2 fan units and ensures 280 m³/h of air throughput.



ELECTRICAL DATA
Rated operating voltage 100 V - 240 V, 1~, 50 Hz/60 Hz
Rated current max. At 50 Hz: 0.7 A
At 60 Hz: 0.69 A
Air throughput, unimpeded air flow 280 m³/h

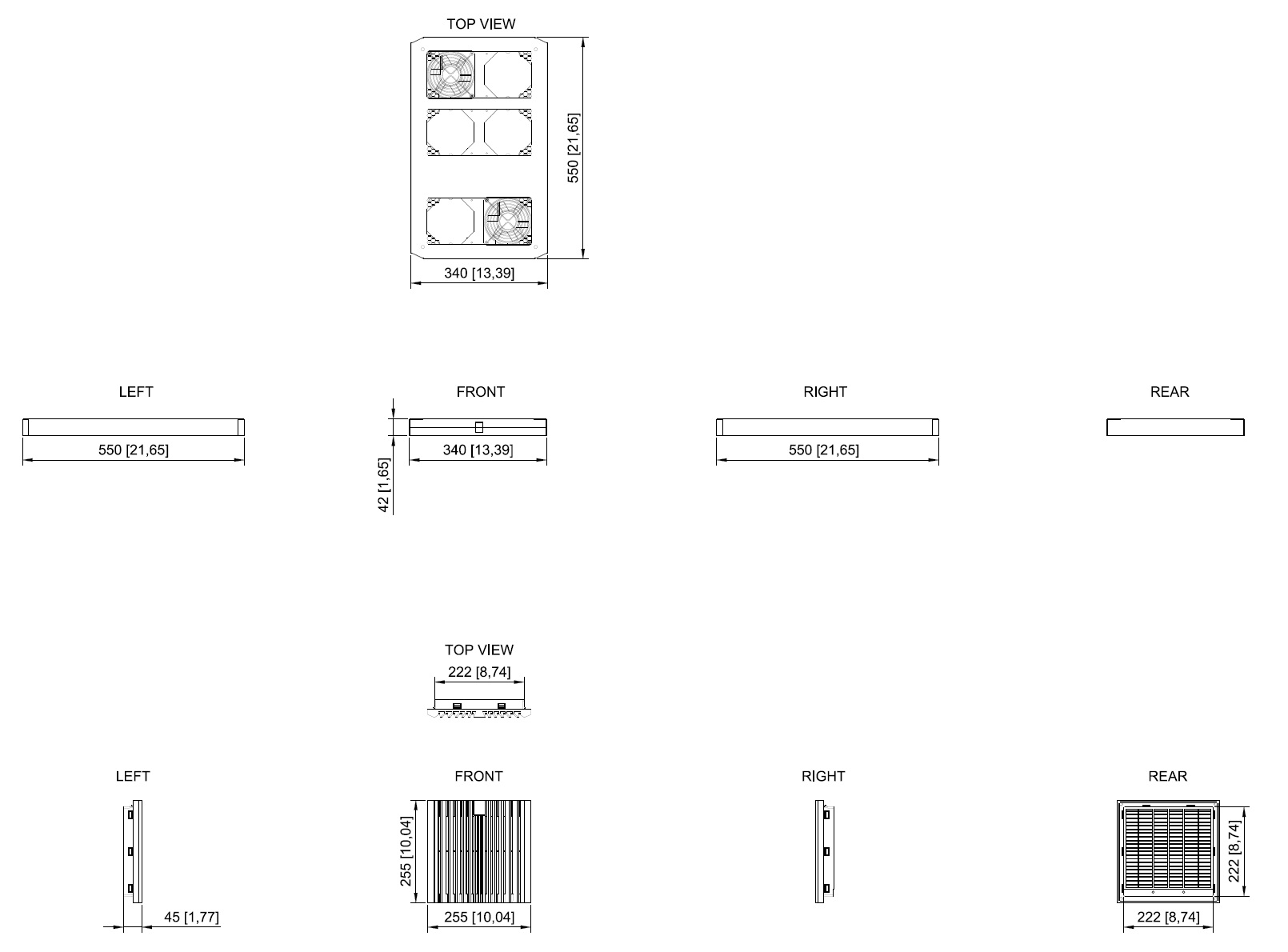

DIMENSIONS & WEIGHT
Roof air outlet dimensions (W x H x D) 550x42x340mm
Air inlet fan dimensions (W x H x D) 255x255x25mm

2810011078 - CAB-AVT-W-115-230
