CAB24SW-V2

Item Number: 2810010117

Floor-mounted 24HU cabinet - 800x1200x600mm (WxHxD) swing frame

  • Front metal door
  • Front door handle: Double-bit lock
  • Includes rear and 2x side steel sheet panels
  • Including 4x eyebolts for crane transportation
  • The door hinged on the right,   may be swapped to the left
  • Base/plinth not included, can be ordered separately
  • 19-inch swing frame for up to 22 HU



Our all-new series of multi-use cabinets are designed to be used in a marine environment. This floor-mounted 24HU cabinet is DNV-GL type approved and perfect for installing our 19'' system components to create a complete system for your installation.

The cabinet has a front metal door hinged on the right, and it can be swapped to the left if needed. The rear side of the cabinet is covered with a fixed metal plate and can be replaced with rear doors if required. Cabinet variant 24 HU, 800 wide, and 600 deep. Internal 19-inch swing frame for up to 24 HU. Includes the choice of DIN rail mounting in the bottom, prepared for optional power switch-over modules and terminals. It has 3 fixed door plates, front doors,  and chassis ground.

By default, the cabinet is IP55 but the final IP rating will depend on the chosen ventilation options.

This cabinet is suitable for:

  • ACM Advanced modules
  • SPA-V2 Public Address
  • EXIGO Public Address
  • Radio
  • LAN
  • CCTV
  • IPTV
  • DECT
  • Paging
  • Masterclock
  • UPS (small)



GENERAL

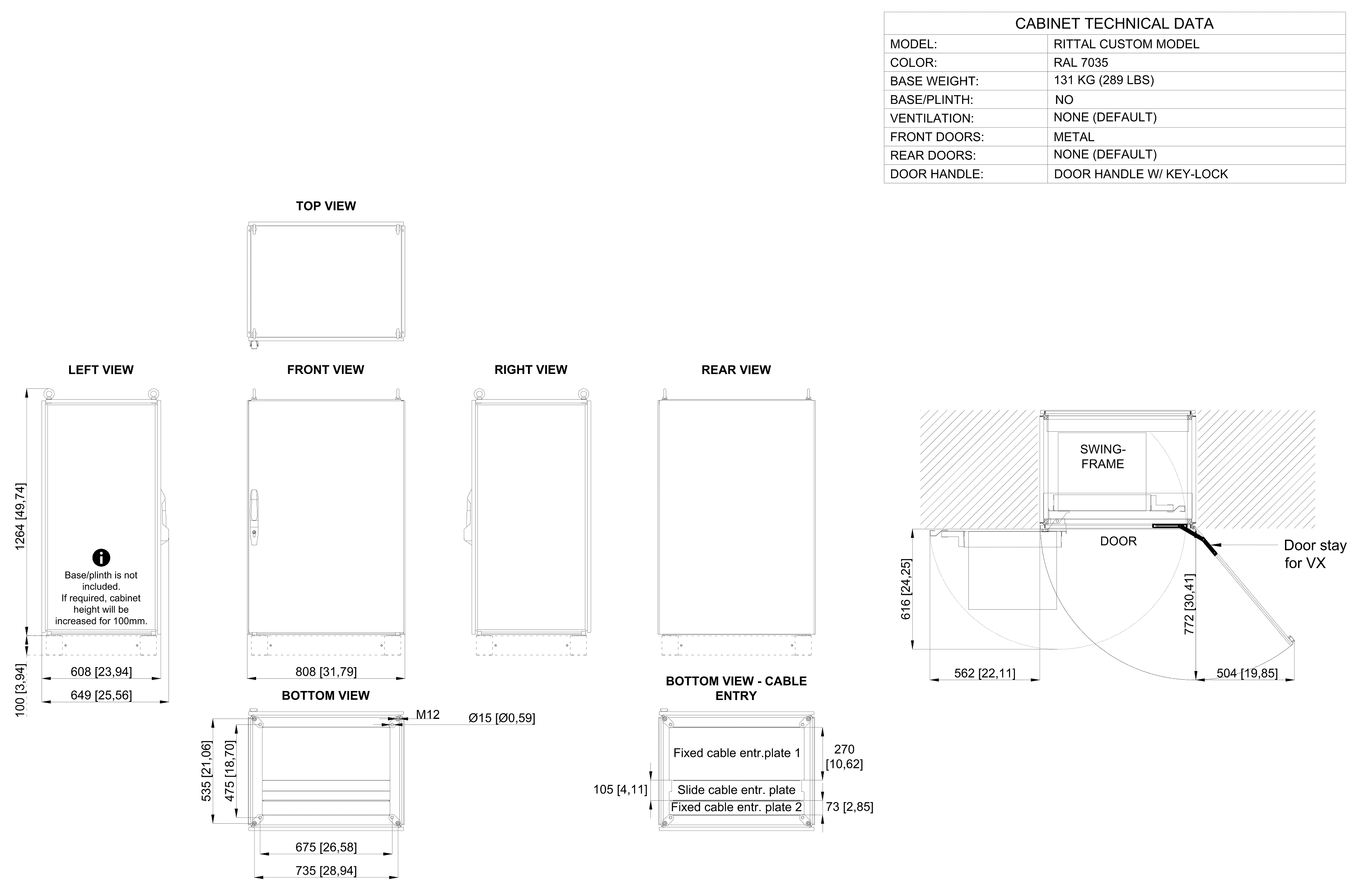

Dimensions (WxHxD) 808x1264x649mm
Color RAL 7035
Material Steel
Ingress grade IP-55 (or less, based on selected ventilation)
Mounting Floor mounted
Cable inlet Bottom (top available on request)
Environmental Condition Protected

2810011064_Door_handle_wPush-button_wpad-lock-Image

CAB-DH-PP

Door handle with push-button & pad-lock for CABxx

2810011049_CAB-CE-L-Image

CAB-CE-L

Cable entry gland 2xM25/32/40, 1xM32/40/50, 2xM40/50/160

2810011050_CAB-CE-S-Image

CAB-CE-S

Cable entry gland w/sealing membranes Ø7 to 26mm

2810011059_-_CABxx_LED-Image

CAB-LED

CABxx LED System light w/sensor 100-240VAC, w/connection cable

2810010115 - CAB42FWD-V2 - Image

CAB42SWD-V2

Floor-mounted 42HU swing frame cabinet - 800x2000x800mm (WxHxD)

Date Name Category Size Document
19.02.2024 2810010117-420_CAB24SW-V2_Dimensions CAD 2D 2.33 MB Login to download
19.12.2022 VX - Lloyds Register of Shipping Certificate.pdf Certificate 548.09 KB Download
19.12.2022 VX - Bureau Veritas Certificate.pdf Certificate 573.52 KB Download
5.10.2022 DNV-GL Type Approval Certificate TAE00003JN_1.pdf Certificate 62.94 KB Download
