CAB-AVIP55-115/230

CAB-AVIP55-230

Item Number: 2810011067

Active ventilation unit IP55 for CABxx, 133mm heigh, 230VAC

  • Roof-mounted fan 220V-240V, 133 mm height
  • Enclosure internal thermostat
  • Thermostat Mounting plate
  • Outlet filter Standard (255x255mm)

CAB-AVIP55-230  is an active ventilation unit intended to be used with the CABxx cabinet range. With   IP55 protection, it is intended to be used even in environmentally demanding areas.  It can also be used on glazed door cabinets where an air inlet can be mounted on the side or on the back of the cabinet.

*Includes filter mat for IP55 protection and internal thermostat with mounting plate, 417 m³/h

ELECTRICAL DATA
Rated operating voltage 220 V - 240 V, 1~, 50 Hz/60 Hz
Power consumption At 50 Hz: 51 W
At 60 Hz: 62 W
Air throughput, unimpeded air flow At 50 Hz: 417 m³/h
At 60 Hz: 446 m³/h
IP protection IP 55 including filter mat

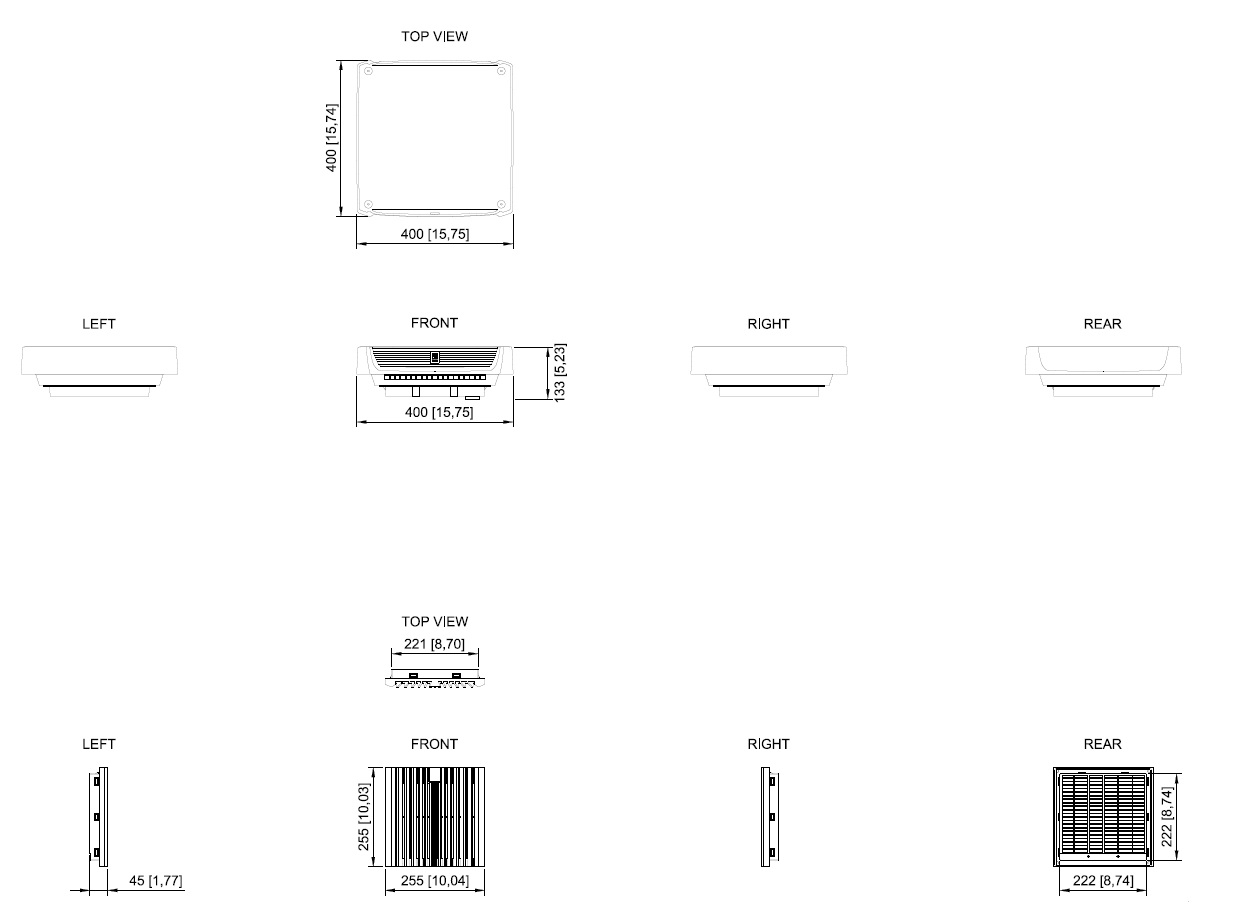

DIMENSIONS & WEIGHT
Roof mounted fan dimensions (W x H x D) 400x133x400mm
Roof mounted fan mounting cut-out 258x258mm
Roof mounted fan installation depth 34.6 mm
Inlet filter dimensions (W x H x D) 255x255x25mm
Inlet filter mounting cut-out 224x224mm
Weight 5.76kg
