CAB-AVIP55-115

Item Number: 2810011068

Active IP55 ventilation for CABxx, 133 mm height, 115 VAC

  • The package consists of:
    • Roof-mounted fan with a high protection category and flexible installation from the inside or outside, 115 V, 133 mm height
    • Internal Thermostat (with mounting plate)
    • Outlet filter 255x255 mm
  • IP55

CAB-AVIP55-115 is an active enclosure cooling solution that features a next-generation roof-mounted fan designed to fit multiple cabinet sizes with a single cut-out, delivering high efficiency and reliable IP55 protection. An internal thermostat ensures precise temperature control, while the outlet filter works together with the fan-and-filter unit to safely dissipate heat, provide consistent ventilation, and protect temperature-sensitive components by supplying cooler ambient air into the enclosure.

GENERAL (ROOF-MOUNTED FAN)
Rated operating voltage 115 V, 1~, 60 Hz
Power consumption At 60 Hz: 65 W
Rated current max. At 60 Hz: 0.56 A
Air throughput, unimpeded air flow (without filter mats) At 50 Hz: 525 m³/h
Air flow (with pleated filter in roof-mounted fan) with outlet filter including chopped-fibre filter mat 1x outlet filter: 360/382 m³/h / 2x outlet filter: 410/440 m³/h
Air flow (without filter in roof-mounted fan) with outlet filter including chopped-fibre filter mat 1x outlet filter: 360/373 m³/h
Pre-fuse Miniature circuit-breaker/fuse: 3 A
IP protection category to IEC 60 529 IP 21 without filter mat / IP 54 including pleated filter / IP 55 including chopped-fibre filter
Dimensions W x D x H 400 x 400 x 133 mm
Mounting cut-out 258 x 258 mm
Installation depth 34.6 mm
Weight 5.865 kg
GENERAL (Internal Thermostat)
Rated operating voltage 24-230 VAC, 1~ / 24-60 VDC
Dimensions W x D x H 71 x 33.5 x 71 mm
Weight 0.12 kg
GENERAL (OUTLET FILTER)
Dimensions W x D x H 255 x 45.2 x 255 mm
Mounting cut-out 224 x 224 mm
IP protection category to IEC 60 529 IP 54-56 (depending on filter type)
Weight 0.67 kg

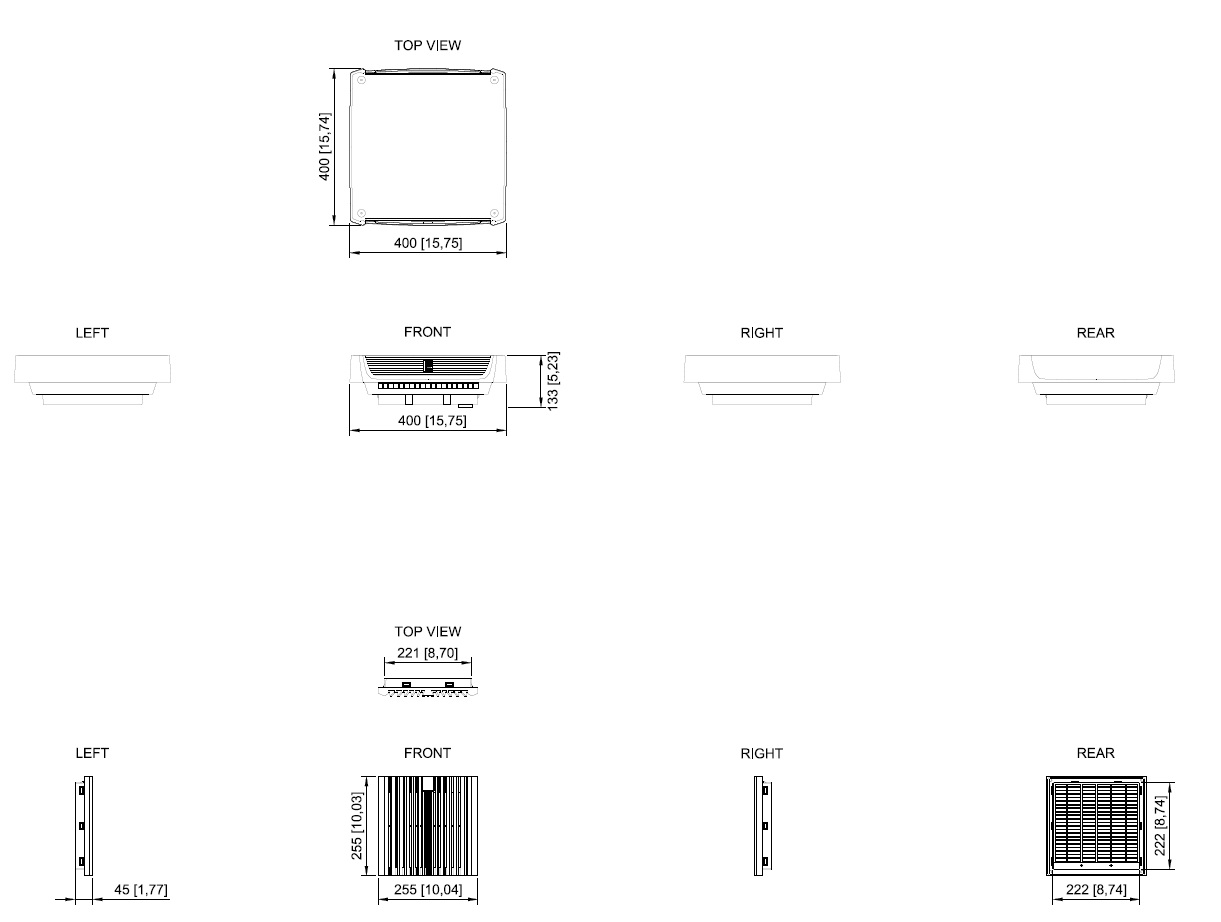

2810011068_CAB-AVIP55-115_Dimensional_Drawing
