CAB-BASE-86

Item Number: 2810011084

Base / plinth for 800x600mm cabinets

  • For 800x600mm cabinets
  • 100mm height

This item has been replaced with 2810011090

CAB-BASE-86 is base / plinth for 800x600mm cabinets.

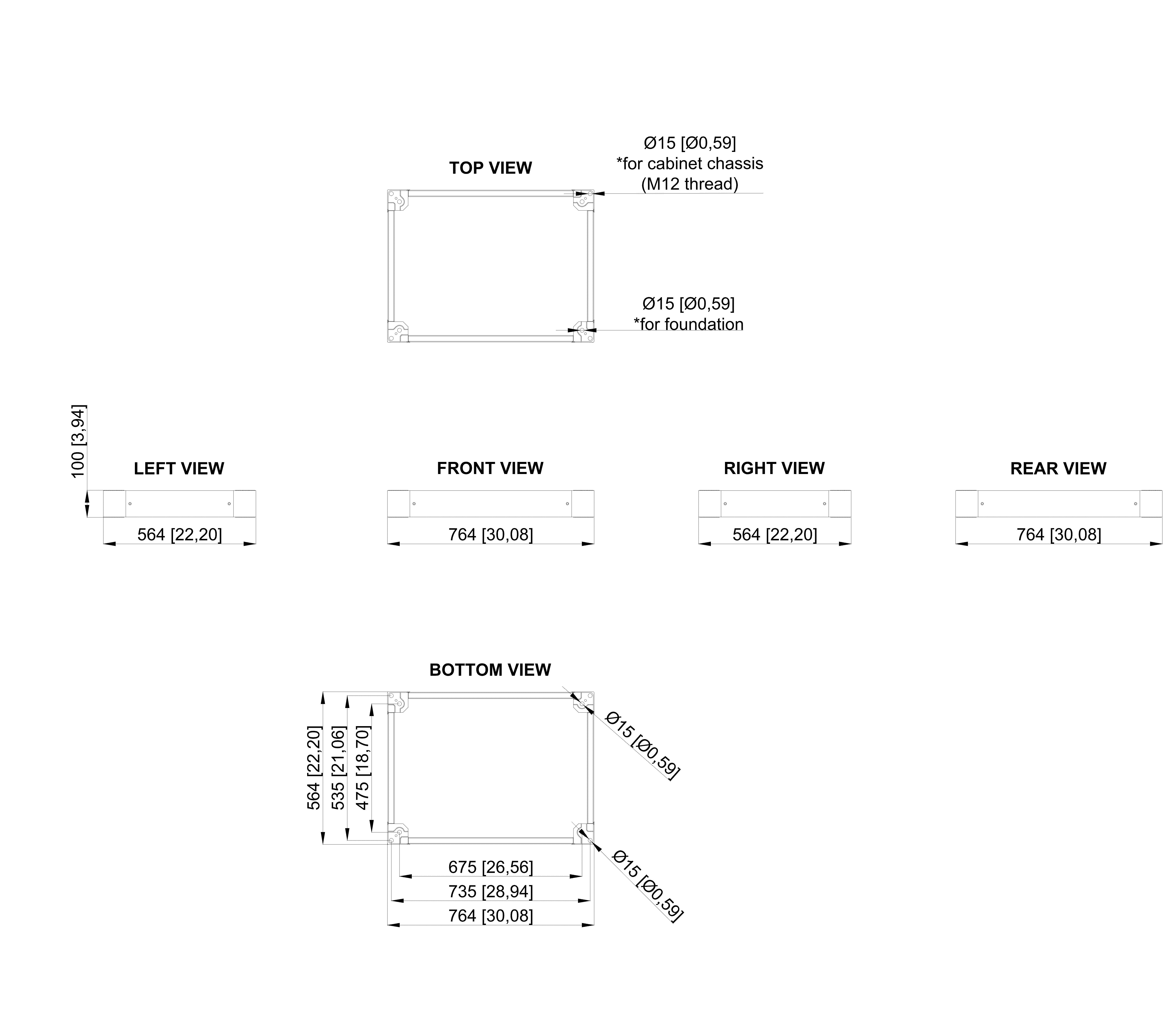

The base / plinth can be used when there is a need for extra space for cables incoming from the bottom. It has 2xØ15 holes;one should be used for mounting the base to the floor foundation and another one for the cabinet. Cabinet hasØ15 and M12 threaded holes available for securing it to the base / plinth.

Depending on the application, base / plinth corner pieces with moulded self-positioning to the enclosure may be used with or without trim panels. Large openings in the base/plinth corner piece may be concealed with a plastic corner and baying cover for optimum access to the screw-fastening point. Front, rear and side plates can be removed to enable transportation of a cabinet with a forklift.







TECHNICAL DATA
Dimensions (WxDxH) 764x564x10mm
Weight 6,96 kg [15,34 lbs]
Cable length RAL 9005
