2810010130 - CAB24-TX-800 - Image

CAB24-TX-800

Item Number: 2810010130

Floor Cabinet, 24HU, 800x800, IP20, w/ventilation & base

  • 24HU floor cabinet
  • 800mm x 1340mm x 850mm
  • Top ventilation
  • Base/plinth with air inlet

Zenitel's 24HU floor cabinet is the ultimate solution for housing essential 19" system components in marine environments. Designed with the unique challenges of onboard installations in mind, this versatile enclosure provides ample 24HU capacity within a compact 800mm x 800mm footprint.

Built to withstand demanding maritime conditions, the cabinet features a sturdy base with air inlet and top-mounted ventilation system to ensure optimal airflow and thermal management for your critical electronics. The cabinet comes with an internal 19" fixed frame, and ground bar, and all cabinet ground wiring is already done.

Whether you're outfitting systems like LAN, CCTV, IPTV, or DECT equipment, the 24HU floor cabinet provides a comprehensive, future-proof solution for your onboard infrastructure needs.

GENERAL
Dimensions (WxHxD) 800x1340x850 mm
Color RAL 7035
Material Steel
Ingress grade IP-20
Mounting Floor mounted
Cable inlet Top or bottom

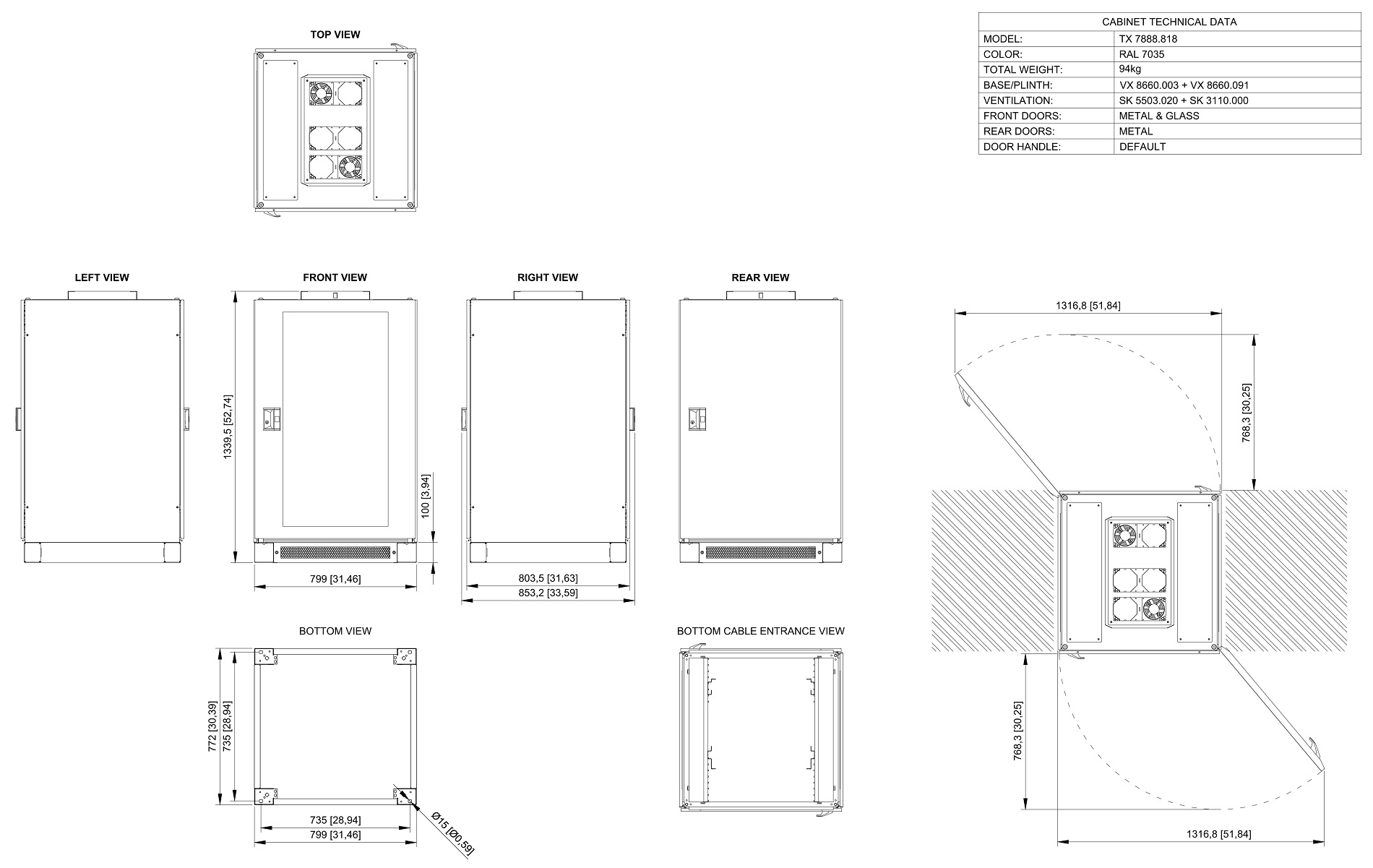

2810010130_CAB24-TX-800_DimDraw

2810010129 - CAB24-TX-600 - Image

CAB24-TX-600

Floor Cabinet, 24HU, 600x600, IP20, w/ventilation & base

Date Name Category Size Document
2.10.2024 2810010130_CAB24-TX-800_Dimensions CAD 2D 727.46 KB Login to download
