CAREEX-6T

Item Number: 2340020068

Ex Loudspeaker Double Faces 6 W

  • Aluminuim double faced loudspeaker
  • Made for cabins, hallways, etc. in hazardous areas
  • 100 V line transformer
  • Adjustable tapping plugs
  • Tapping: 0,3W - 0,5W - 1W - 1,5W - 3W - 6W
  • Fasten loudspeaker to wall or ceiling with four screws by use of the extruded aluminum brackets on each side.
  • Enter the e-chamber by loosening the screws on the lid and terminating the cable in the screw terminal.
  • Fasten lid screws with a torque of 2 – 2,2 Nm to assure the IP rating.
  • For optimum performance, always use the correct voltage/power and operate within the frequency limits as stated.
  • Use only certified/specified cable glands and blanking plugs.
  • Standard model delivered with two M20 Ex-approved plastic blinding plugs.
  • Do not open the loudspeaker when energized.
  • Ex-loudspeakers must be earthed correctly using the specially marked screws.





General
Material / Color Aluminum / anodized
Mounting Foot bracket
Termination E-chamber, screw terminals
Weight (with transformer) 3,6 kg
IP rating (e-chamber) IP-67
Max. / min. amb. temp 40°C / -20°C
Rated / Max power 6 W / 15 W
SPL 1W / 1 m 90 dB
SPL rated power 97 dB
Effective frequency range 160 – 16000 Hz
Dispersion (-6dB) 1kHz / 4kHz 200° / 40°
Environmental Condition Exposed

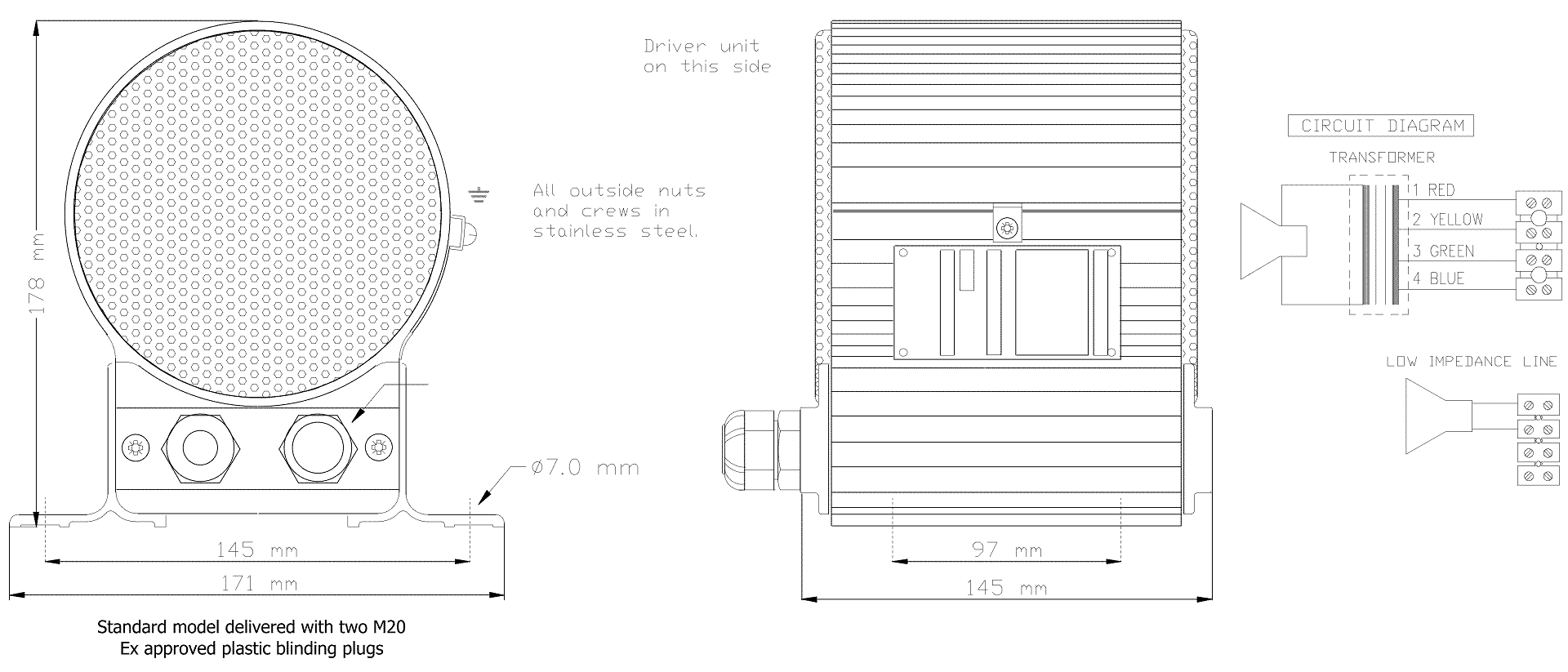

2340020068-CAREEX-6T_DimDraw
