CL-135T-MED

Item Number: 2131000147

5'' Ceiling Speaker 100V, 6W, fire dome

  • MED approved
  • Miniature design
  • Steel back box to reduce fire risk and spread
  • Supports loop wiring with 2 x M20 back box glands
MED EU Certification icon MED Certification

5" miniature speaker for small rooms or where space for mounting speakers is limited.

The speaker has a robust, yet discreet design, and installation is easy with two spring clamps.

General
Dimensions (Diameter x Depth) Ø135 x D82mm
Cut Out Dimension (Dia.) Ø106
Mounting Flush mounted – ceiling or wall by spring clamp
Operating temperature range -20℃ ~ + 70℃
Fuse Thermal fuse
Rated Power 6W
Max Power 10W
Power tappings 6W - 3W - 1.5W
Frequency response 65 Hz - 20 KHz
Sensitivity 83 dB ± 3dB, 1W/1M
Maximum SPL 91 dB
Rated Voltage 100 V
Termination Ceramic Terminal Block With thermal fuse
Baffle Material Steel , RAL 9010
Mesh Grille Steel , RAL 9010
Weight 0,52 kg
Environmental Condition Protected
Compass safe distance 150 cm

Installation and operation:

  1. 1. Mount cable through cable gland and connect cable leads to 100V line in + - terminals
  2. 2. Select required loudspeaker tapping with red cable on the transformer
  3. 3. Fasten the back box onto front of loudspeaker
  4. 4. Fasten cable gland(s) and ensure the cable leads are not placing strain on the terminals
  5. 5. Place the loudspeaker in front of ceiling cut-out. Hold the fastening spring clamps aligned with back box and push loudspeaker into correct position. Make sure front grille is surface with ceiling for correct mounting
  6. 6. Once installed the loudspeaker can be used



Maintenance:

  1. 1. No scheduled maintenance is required
  2. 2. For any kind of maintenance secure loudspeaker is not energized
  3. 3. Loudspeaker is equipped with fuse. If fuse broken pull out loudspeaker from ceiling and remove back box from front loudspeaker to access
Date Name Category Size Document
MD-SDoC-2131000147-IHM-8003-70767-209832 Declaration 53.85 KB Login to download
DNV MER-B - Zenitel CL Speakers - 2030.07.02 - MERB0001N2M Certificate 181.62 KB Download
DNV MED-B - Zenitel CL Speakers - 2030.07.02 - MEDB0000AWT Certificate 171.09 KB Download

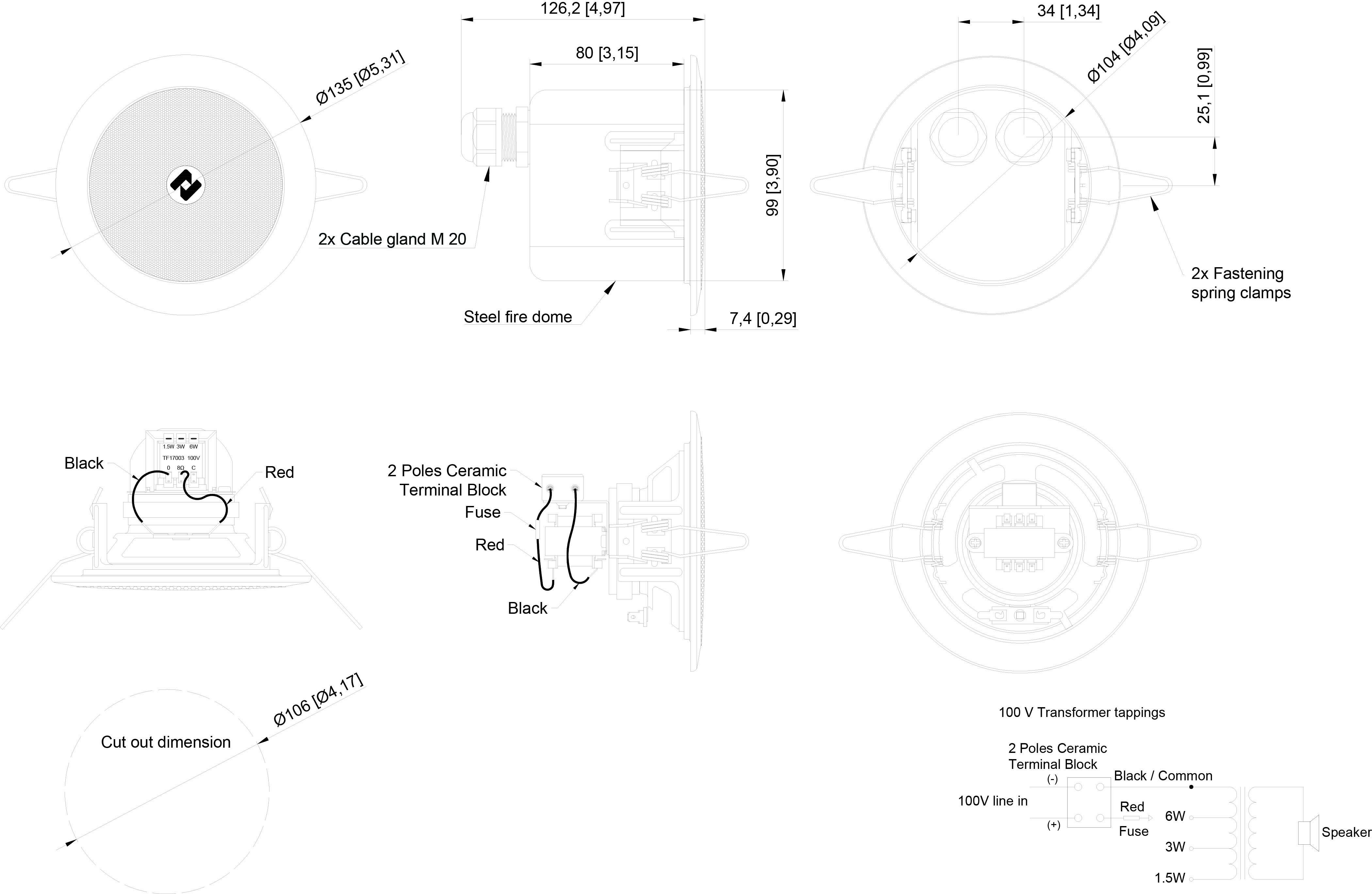

2131000147 - CL-135T-MED - Dimenional Drawing CAD 2D 493.37 KB Login to download
