Compact ICS

Integrated Communication System

  • Integrated Communication System designed for internal/external 2-way communication.
  • The system is optimized for IMO/Solas requirements on both small and medium sized marine vessels.
  • IP-22 Rating
  • Capacity: Up to 72 lines
  • Dual power supply: AC/DC or AC/AC
SIP
Marine 40x40 ico Onboard communication

The Compact ICS provides a flexible, cost-effective solution for analogue intercom, telephony, public addess and loudhailing on small and medium-sized marine vessels. Combining these functions in one compact cabinet, it supports reliable two-way communication for onboard operations. By adding the ICS P-6202 Billing Unit, logging and billing of calls are trackable using PIN and extension registration.

Mechanical
Dimensions (WxHxD) 618x585x470 mm
Weight 30 kg
Product variants
4000019779 Compact ICS 24 lines, AC/DC
4000019780 Compact ICS 24 lines, AC/AC
4000019781 Compact ICS 48 lines, AC/DC
4000019782 Compact ICS 48 lines, AC/AC
4000019823 Compact ICS 72 lines, AC/DC
4000019824 Compact ICS 72 lines, AC/AC

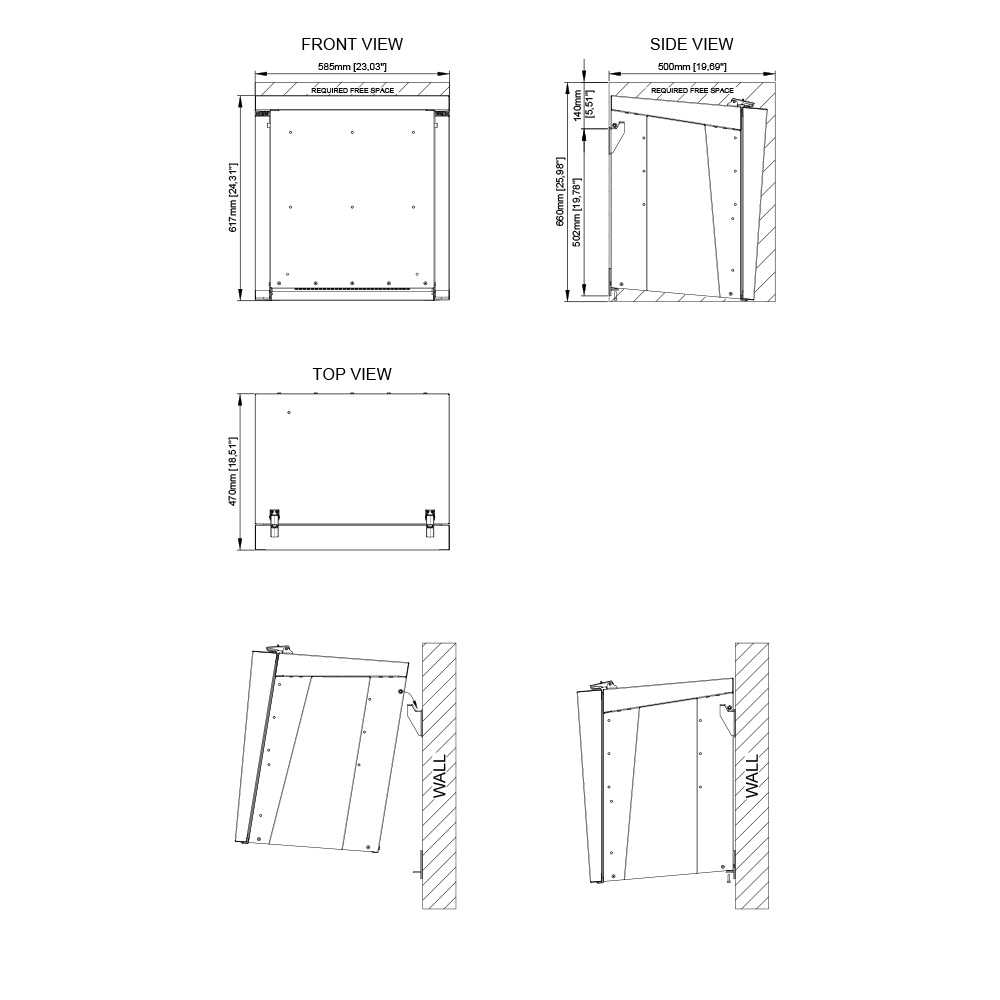

ICS Compact Dimensional Drawing
Date Name Category Size Document
Compact ICS Dimensional Drawing CAD 2D 165.44 KB Download
ICS 6200 DNV Type Approval - TAA00001DC-Rev.3 Certificate 393.74 KB Download
