CST100N2-2048 Joystick Mouse Image

CST100N2-2048 Joystick Mouse

Item Number: 2310120137

Joystick Mouse

  • Flush mount
  • PTZ LED red N2 Push buttons
  • USB Interface
  • IEC 60945 Approved
  • Back box on request

The CST100N2-2048 Joystick Mouse is a dual function joystick unit that provides a combined functionality into one single device. The user can use the unit as a mouse pointer or  the utilize the 3-axis joystick function.





GENERAL
Size (WxHxD) 90 x 130.00 x 114.22
Weight 0.5 kg
Ingress Protection Sealing IP50 / (Sealing Push button switches IP68)

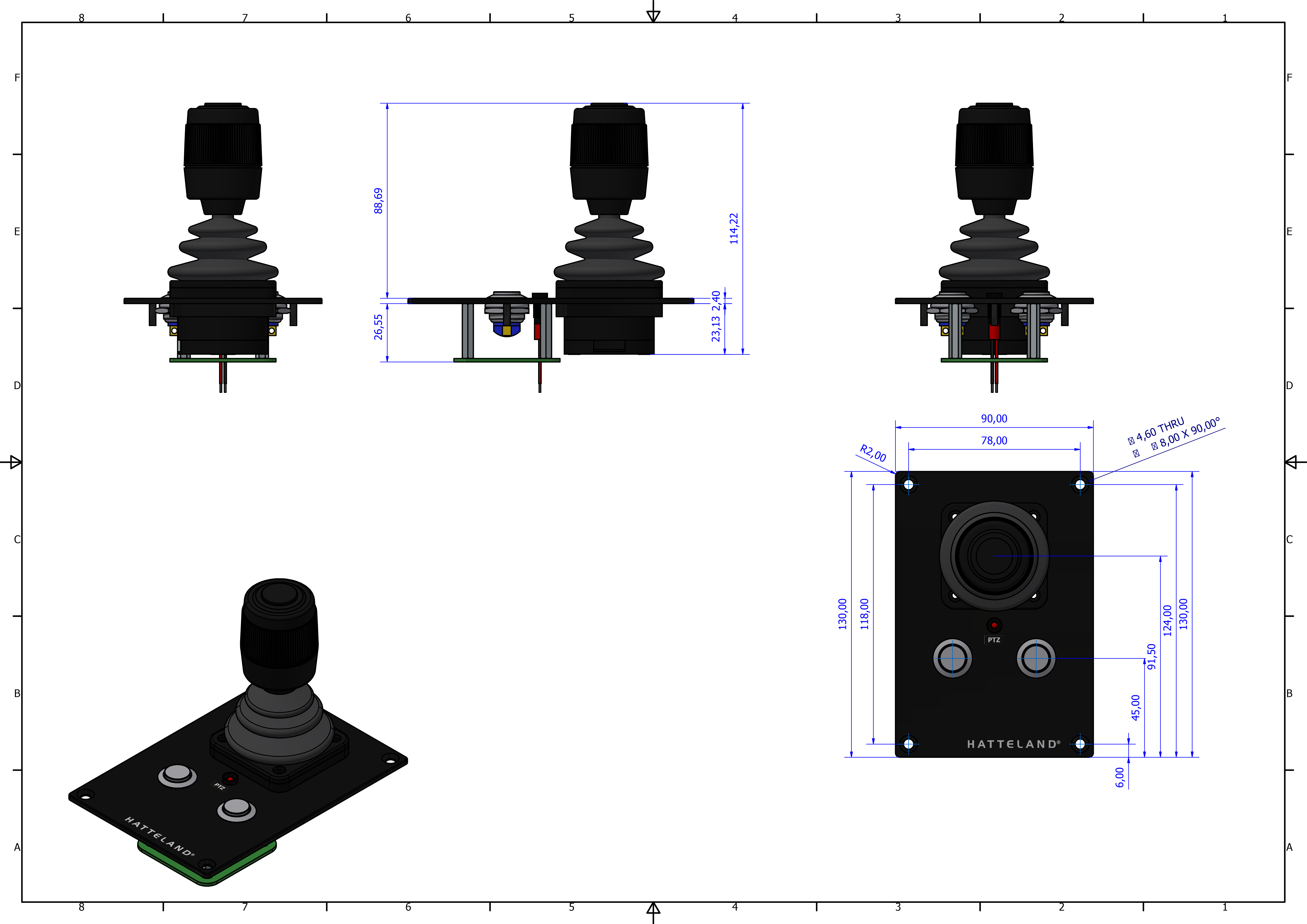

CST100N2-2048 Joystick Dimensional Drawing

Date Name Category Size Document
6.06.2024 MD-SDoC-2310120137-IHM-8003-57862-177320 Declaration 70.91 KB Login to download
