CW-4T/VOF/F

Item Number: 2340000013

Wall Loudspeaker 6W with Volume Control and Override. Failsafe

  • Wall loudspeaker with transformer for accommodation area
  • Volume Control, Override and Fuse
  • Ideal for PA,  intercom and background music
  • With 100V line transformer
  • Failsafe operation. Bypasses volume control when no 24VDC is present

Screw the bracket on the wall, and fasten the cabinet to the bracket with one screw.
For optimum performance, always use the correct voltage/power and operate within the frequency limits as stated.


General
Dimensions (mm) 250W x 170H x 88D
Weight 1.2 kg
Mounting Screws, keyhole
Material/ Color Particle board / White or walnut
Temperature range Max. / min. amb. temp 90°C / -40°C
Max. / min. ambient temperature 90°C / -40°C
Connections Spring clamp
Rated / max. power 6W / 8 W
SPL 1W/1m 90dB
SPL rated power 97dB
Effective freq. range 140 - 20000Hz
Dispersion (-6dB)1kHz / 4kHz 140° / 80°
Relay (PA override) 24VDC. 16.5mA
Environmental Condition Protected
Connections
100V line Terminals: A, B
24VDC relay Terminals: +, -

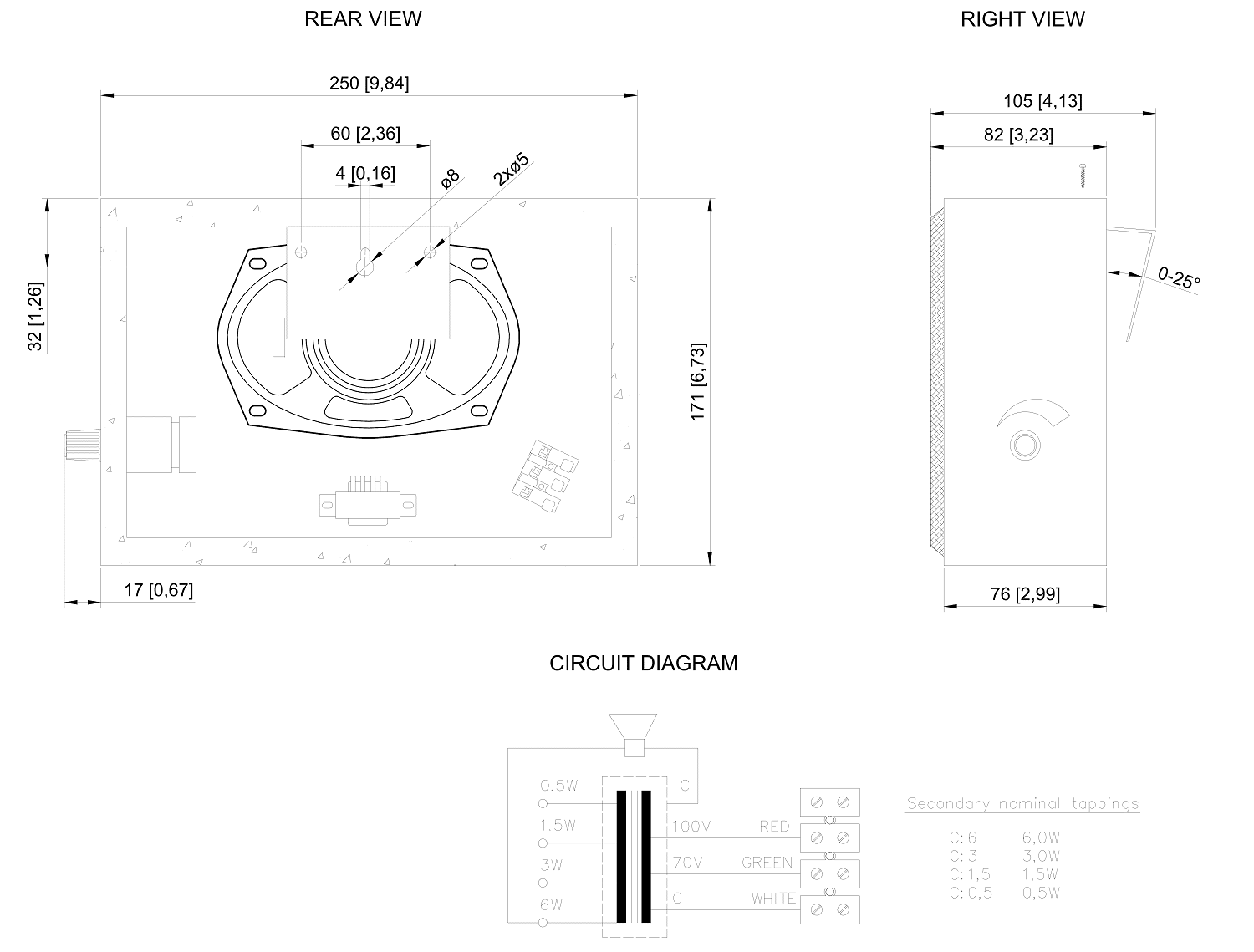

3006100033-2340000013_DimDraw

CW-4T/VOF

Wall Loudspeaker 6W with Volume Control and Override
