Desk/Wall Master Station

Item Number: 1007036210

  • Combined wall and desk master station with full access to all features in Vingtor-Stentofon AlphaCom XE exchange
  • Can be used as wall mounted station using the optional bracket 1008091100
  • 10 programmable single touch keys with name tags
  • Selectable private / open mode
  • Superb audio quality
  • Advanced supervision functions

This combined desktop and wall mount master station has full access to all features of the Vingtor-Stentofon AlphaCom XE exchange of which many are developed specifically to provide critical communications such as group call and call priority.

The station includes programmable single touch keys for fast access to important functions. A private/open switch allows for choosing between direct incoming calls and announcement of incoming calls by a ringing tone.

The station provides high quality hands-free conversations, using the Vingtor-Stentofon superb wideband audio and loud volume. The station can be placed up to 4 km from the AlphaCom exchange without need for any local power source. The station uses the traditional 4-wire interface receiving both power and audio in the same cable.

To provide maximum availability the station comes with advanced supervision functions. The station line test will detect whether there are any faults in the network or station electronics. In addition the station supports tone test, testing the complete transmission path including microphone and speaker. The status of the stations is reported to AlphaWeb as well as to 3rd party management systems using SNMP, Syslog or OPC . Station cables of different lengths, wall sockets and a bracket for wall mounting are available as accessories.

See also: additional documentation on wiki.zenitel.com

MECHANICAL

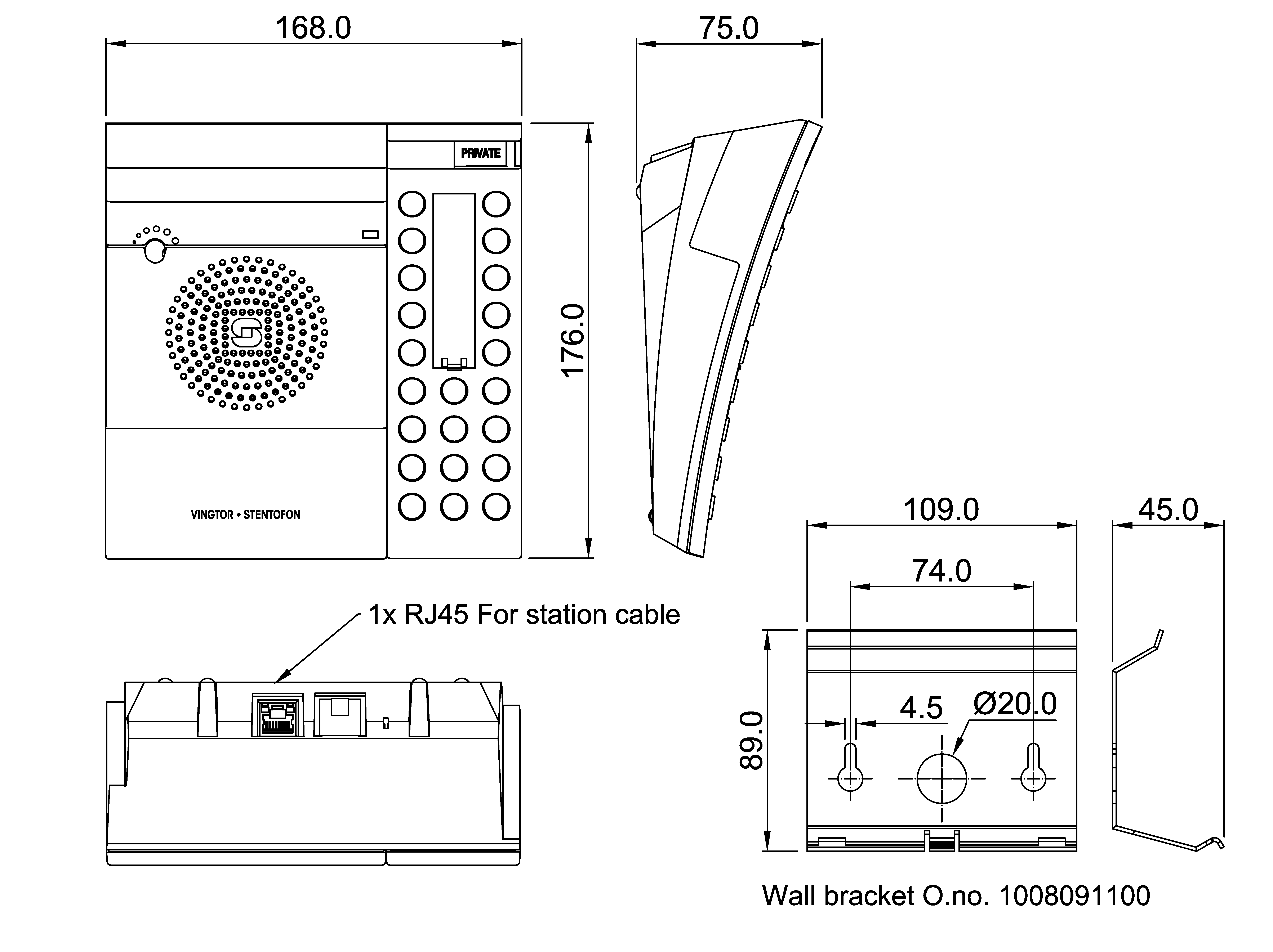

Dimension (WxHxD) 168 x 75 x 176 mm / 8.85 x 2.95 x 6.92 inch.
Weight 0.410 kg / 0.90 lbs
Keypad Full keypad including 10 DAK keys
Mounting Desktop. On wall with optional bracket
Temperature 0 to +50°C
Loudspeaker output Max. 1 W RMS
Frequency range 200 - 10’000 Hz
Connectors RJ45
Wiring 2 twisted pairs
ORDER NUMBER DESCRIPTION SHIP WEIGHT
1007036210 Desk/Wall Master Station, Color grey 0.410 kg/0.90 lbs.
KB171 Wall Socket, RJ45, Surface Mounted
1009800130 3 meters Station Cable with RJ45 Connector
1009800115 0.5 meters Station Cable with RJ45 Connector
1008091100 Wall bracket for Desk/Wall Station
GENERAL
Max cable distance 4.0 km (18 AWG - 0.9 mm). 3.4 km (20 AWG - 0.8 mm). 2.0 km (22 AWG - 0.6 mm). 1.4 km (24 AWG - 0.5 mm).
Power Powered from exchange
Call indication Red call LED
Supervision Line supervision. Tone test (manual and automatic). Station status in AlphaWeb.
Compliance CE and FCC Part 15

Desk Wall Master Station

1007034210 VMP-61

VMP-619

Desk/Wall Master Station with Handset

VMP-D619B

VMP-D619B

Desk/Wall Master Station Display and Handset

Date Name Category Size Document
1.11.2022 RoHS Declaration 2021 Declaration 3.24 MB Download
18.09.2019 1007036210 Desk-Wall Master Station CAD 2D 563.04 KB Login to download
8.11.2017 Declaration of Conformity 1007036210 Desk/Wall Master Station Declaration 119.32 KB Download
8.11.2017 Declaration of Conformity FCC 1007036210 Desk/Wall Master Station Declaration 31.14 KB Download
12.08.2015 MGMRK24980_Index-label_Grey. Station Label 507.99 KB Download
