DS-2TD2466-25Y thermal camera

Item Number: 2310111148

Thermal imaging IP Camera

  • Stainless steel Anti-Corrosion Thermal Camera
  • Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mk (0.04°C), F#=1.0
  • Powerful behavior analysis function, based on deep learning algorithm: Line crossing, Intrusion, Region Entrance Exit
  • Reliable temperature exception alarm function
  • Advanced fire detection algorithm
  • Thermal field of view 24,55 x 19,75 deg
  • 640 × 512 resolution sensor, high sensitivity sensor, support contrast adjustment
  • Shutter adjustment in various modes
  • 3D DNR, 15 palettes of color adjustable, image detail enhancement
  • 24VAC or PoE+ supported (20W)
IP66 IP66

DS-2TD2466-25Y Anti-corrosion Thermal Network Bullet Camera is applied to perimeter defense and fire-prevention purposes in critical infrastructures. For marine applications this might be cargo hold areas, car decks, explosive and flamable areas etc. With the vanadium oxide uncooled focal plane sensor, the thermal camera enhances the thermal image quality. It adopts 316L stainless steel material to meet the requirements of used in anti-corrosion environment.

Smart Function (Thermal Imaging)

  • Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mk (@25°C,F#=1.0)
  • Powerful behavior analysis function based on deep learning algorithm: Line crossing, Intrusion, Region Entrance & Exit
  • Reliable temperature exception alarm function
  • Advanced fire detection algorithm

Thermal Imaging Module Function

  • 640 × 512 resolution sensor, high sensitivity sensor, support contrast adjustment
  • Shutter adjustment in various modes
  • 3D DNR, 15 palettes of color adjustable, image detail enhancement



Description
Main Stream 50fps (640× 512, 384× 288, 352× 288)
Sub Stream 50fps (640× 512, 384× 288, 352× 288)
Third Stream 50fps (640× 512, 384× 288, 352× 288)
Video Compression H.264 (Baseline/Main/High Profile) /MJPEG/H.265, H.264+, H.265+
Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,I GMP,ICMP,DHCP, PPPoE, Bonjour
Simultaneous live view Up to 20-ch
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Alarm Input 2-ch Inputs (0-5V DC)
Alarm Action Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Alarm Output 2-ch Relay Output; Support Alarm Linkage
Audio Input 1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10%
Audio Output Linear Level; Impedance: 600Ω
Ethernet 1x RJ45 10M/100M Self-adaptive Ethernet interface
Analog Video Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Web Browser IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages
Power POE+ (802.3at), 24VAC, 12VDC/3A, 10W (24W with De-icing Heater On)
Working Temperature/ Humidity From -40 °C to 65 °C; Humidity: 90% or Less
Protection Level IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

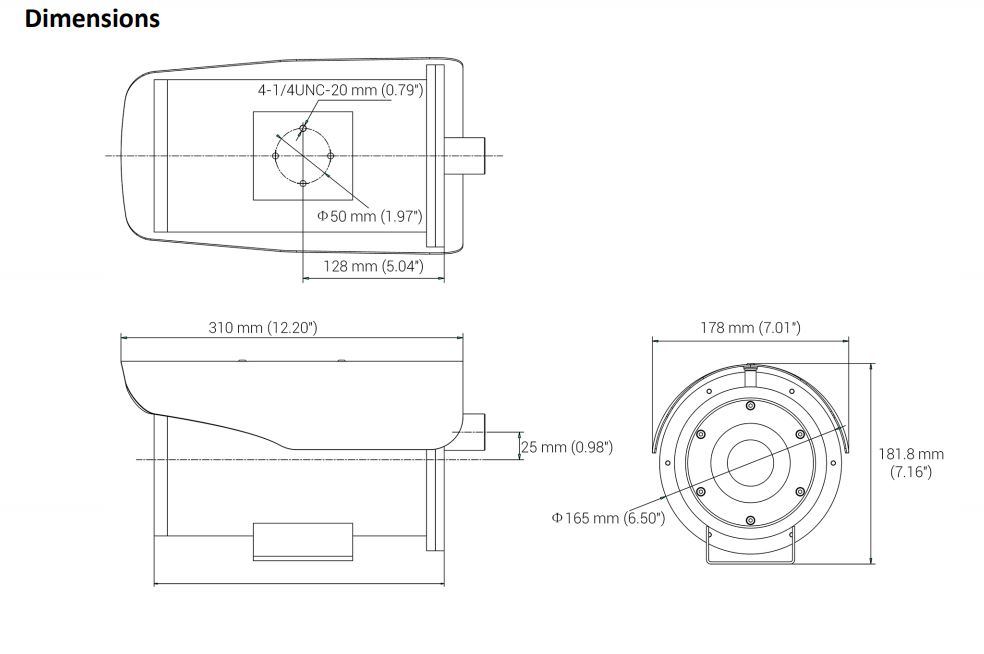

Dimensions 310 mm × 25 mm × 263 mm
Weight 16.86Kg
Thermal Module
Image sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 640x512
Detector Pitch 17um
Response Wavebond 8um to 14um
NETD < 40mk(@25°C,F#=1.0)
Lens (focal length) 25mm
MRAD 0.68 mrad
Field of View 24.55°x 19.75°
Min. Focusing Distance 2m
F number 1.0
Smart Function
VCA Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA rules
Temperature Measurement upport 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line)
Temperature Range -20 °C to 150 °C
Temperature Accuracy ±8 °C
Accessories
2310111122 DS-1701ZJ Wall mount bracket
2310111123 SST 316L Junction box
