23.6 inch Desk Monitor Image

DS-D5024FC 23.6 inch Desk Monitor

Item Number: 2310120130

Desk Monitor

  • LED backlit technology
  • Full HD 1920×1080@60Hz
  • 170°(H)/160°(V)
  • HDMI, VGA, BNC input, BNC output, audio in

The DS-D5024FC 23.6 inch Desk Monitor features LED backlit technology with full HD 1920×1080@60Hz and a wide view angle of 170°(H)/160°(V). The monitor has a multiple interface (HDMI, VGA, BNC input, BNC output, audio in), support analog signal input, and a built-in speaker.

DS-D5024FC 23.6 inch Desk Monitor

The monitor can be used for 24/7 operation and has a VESA stand bracket. It has a green energy feature with the ability to enter standby mode when there is no signal output.

Screen size 23.6 inch
Pixel Pitch 0.2715 mm x 0.2715 mm
Max Resolution 1920 x 1080 @ 60 Hz
Brightness 250 cd/m²
Contrast 1000: 1
Response Time 5 ms
Color 16.7M
Active Area (H × V) 525.22mm(H) × 297.22mm (V)
Viewing Angle Horizontal 170°, vertical 160°
Interfaces HDMI input: 1
VGA input: 1
BNC(in/out): 1 x 1, Out x1
Audio(L/R): In × 1，Out × 1, 3.5 mm mini-jack
Headphone: 1
Power Supply AC 100~240V
Power Consumption ≤30W
Standby Power Consumption ≤ 0.5 W
Loudspeaker 2*2W
Working Temperature 0 to 40 º C
Working Humidity 10 to 85 %
Storage Temperature -20 to 55 º C
Storage Humidity 5 to 95%
Color of Casing Black
VESA M4, 100 mm × 100 mm
Dimensions(W*H*D) 561mm × 338mm × 45mm / 561mm × 339mm × 218.5mm (with base)
Package Dimension (W × H × D) 614mm × 465mm × 109mm
Gross Weight 6Kg
Net Weight 5.1kg

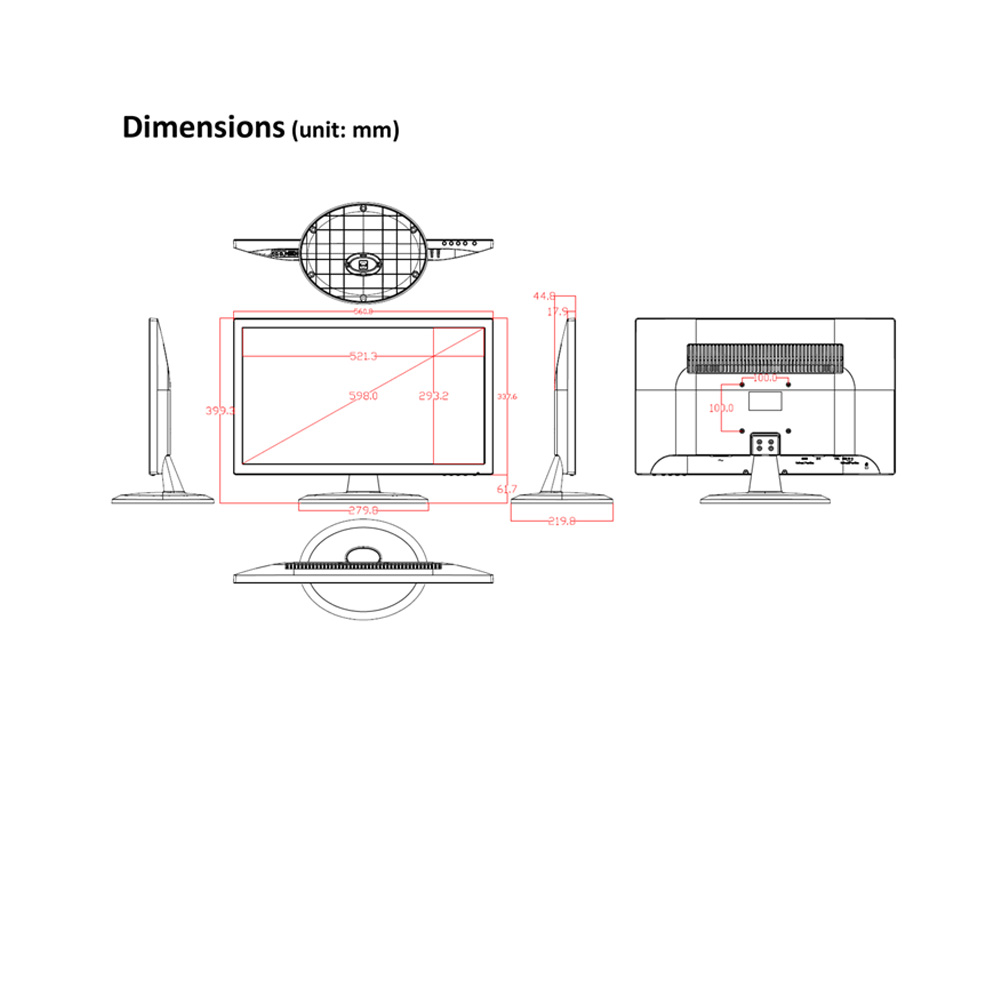

Dimensional Drawing DS-D5024FC 23.6 inch Desk Monitor
