EMBR-2

Item Number: 1023595020

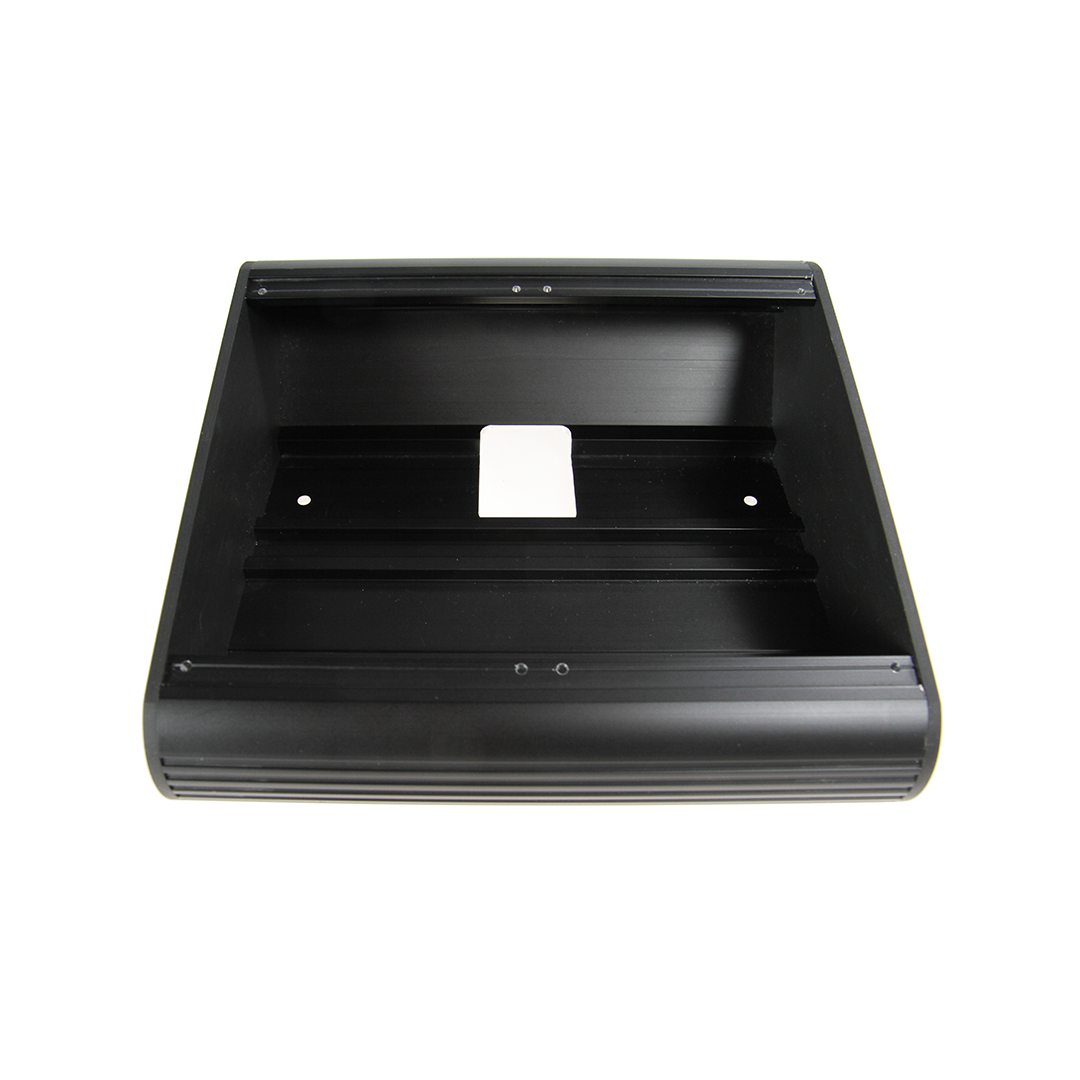

Mounting Box for ECPIR, EAPIR and EBMDR-8 Panels

  • For desktop or on-wall mounting
  • Boxes can be joined to accommodate up to 5 panels using the EMBR-6 kit
  • Indoor use
Specifications

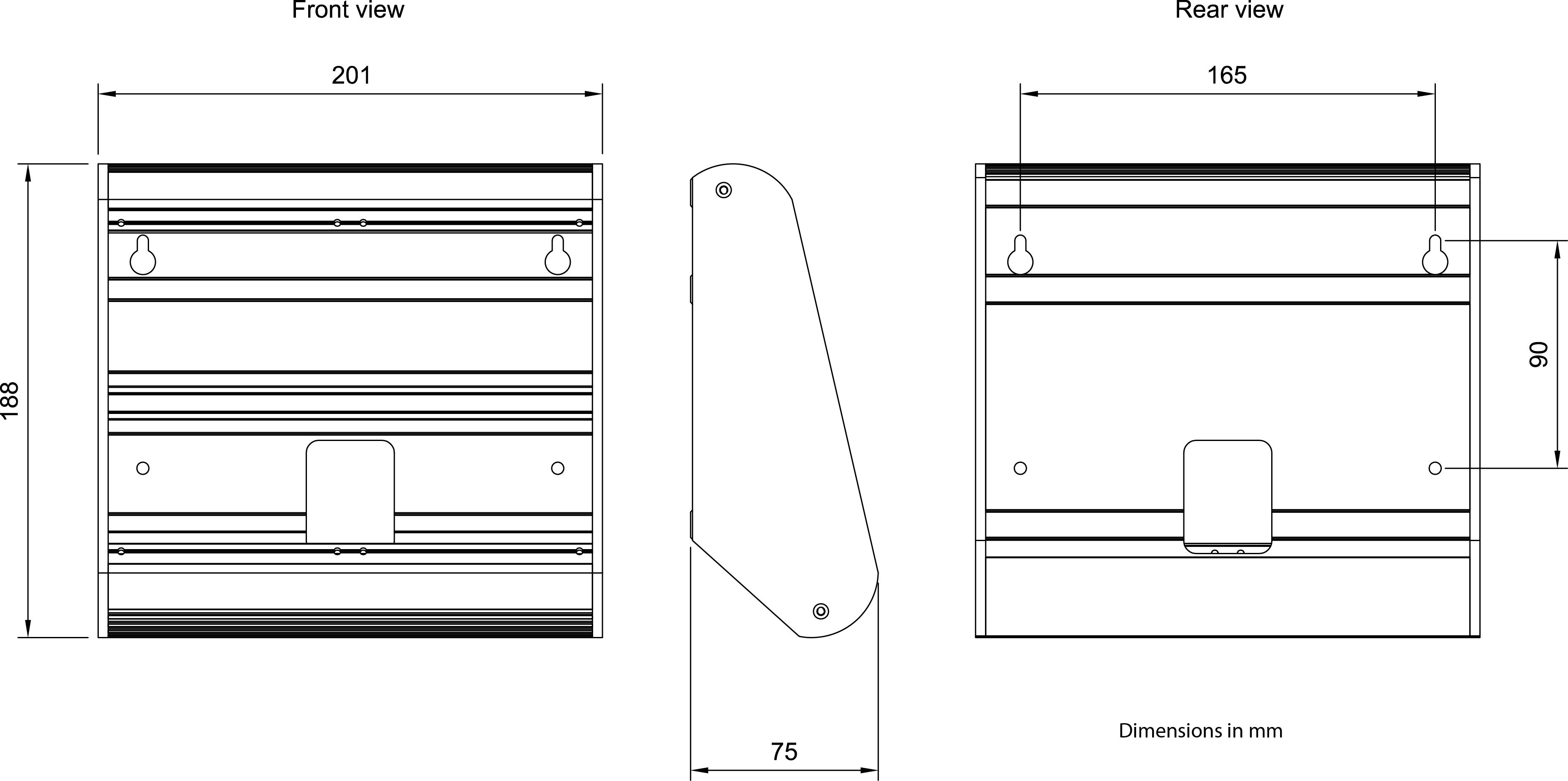

Size WxHXD 201 x 188 x 75 mm
Weight 0.7 kg
Material Anodized Aluminium
Color Black
PRODUCT OPTIONS
1023595060 EMBR-6 Exigo mounting kit for joining boxes

EBMDR-8

Exigo Button Expansion Module, 8 Buttons

EMBR-1

EMBR-1

Mounting Box for ECPIR, EAPIR and EBMDR-8 Panels

Date Name Category Size Document
16.05.2023 MD-SDoC-1023595020-IHM-8003-41773-50187 Declaration 72.17 KB Login to download
1.11.2022 RoHS Declaration 2021 Declaration 3.24 MB Download
18.09.2019 1023595020 EMBR-2 Desktop Mounting Box Two Access Panels CAD 2D 222.31 KB Login to download
