EBMDR-8 Sideview

EBMDR-8

Item Number: 1023253008

Exigo Button Expansion Module, 8 Buttons

  • Button expansion module for ECPIR-x
  • Powered from ECPIR-x
  • Eight programmable buttons with individual labels and status indicators
  • Optional button protection covers
  • Four units can be connected to one access panel
EN 54 Certified
UL Mark UL Certified Intercom
alphacom_40x40 ICX-AlphaCom
EXIGO_40x40 Exigo

The EBMDR-8 button expansion module is developed for expanding the button capacity of the ECPIR-x access panels or intercom. Each button features eight fully programmable buttons that can be used to manually initiate alarms, select zones, or any other action in the Exigo system.

Each of the module’s buttons features two independent indicators that show the status of the button’s function. Up to four EBMDR-8 button expansion modules can be daisy chained to one console panel.

MECHANICAL

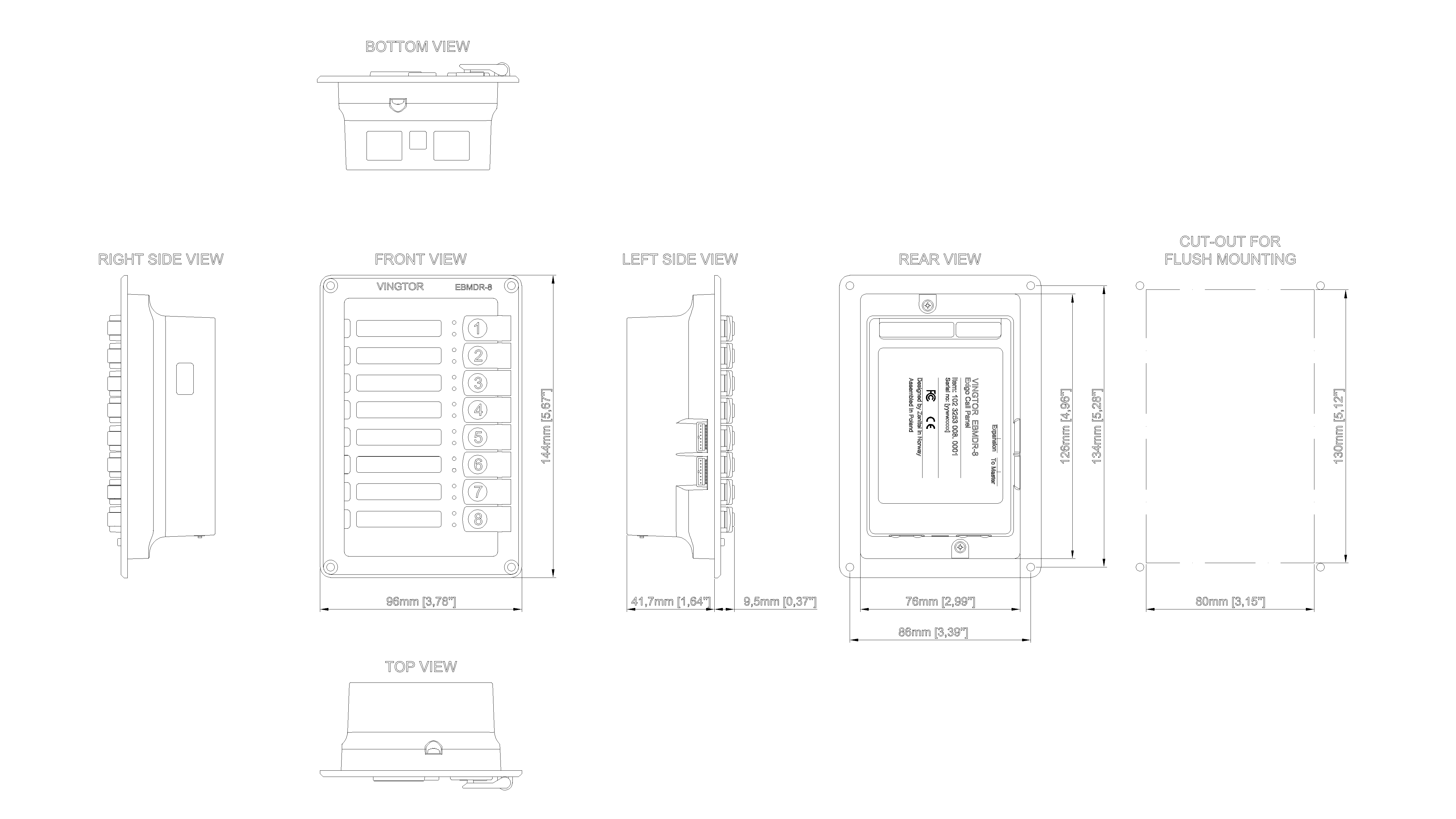

Dimensions (HxWxD): 144 x 96 x 41.5 mm
Weight: 500 g
Storage temperature: -40°C to +70°C
Storage humidity: 10% to 95% (non-condensing)
Air pressure: 600 hPa to 1300 hPa
IP rating: IP-32
ENVIRONMENTAL
Operating temperature: -10°C to +60 °C
Operating humidity: 10% to 95% (non-condensing)
CERTIFICATIONS
Immunity: EN 60945, EN 50130-4, EN 61000-6-1, EN 61000-6-2, EN 55103-2, FCC-47 part 15B
Emissions: EN 60945, EN 50130-4, EN 61000-6-3, EN 61000-6-4, EN 55103-1, FCC-47 part 15B
Safety: UL 60950-1, cUL 60950-1, CB to IEC 60950-1

EBMDR-8

EMBR-1

EMBR-1

Mounting Box for ECPIR, EAPIR and EBMDR-8 Panels

EMBR-2

EMBR-2

Mounting Box for ECPIR, EAPIR and EBMDR-8 Panels

Date Name Category Size Document
16.05.2023 MD-SDoC-1023253008-IHM-8003-41773-7770 Declaration 72.15 KB Login to download
16.12.2022 Declaration of Performance EN54-16 Exigo Declaration 99.43 KB Download
16.12.2022 EN54-16 Voice Alarm Control Exigo Certificate Certificate 470.98 KB Download
1.11.2022 RoHS Declaration 2021 Declaration 3.24 MB Download
5.01.2022 ExPIR E317047-20171129-UL Certificate of Compliance Certificate 277.31 KB Download
