GHG-411 EX

Item Number: 4000011297

Callbox EX GHG 411

  • Explosion-proof calling box for hazardous areas
  • Delivered for bulkhead mounting
  • Call-button for calling Master unit
  • To be used together with Ex horn speakers
General
Connections Screw terminals
Colour Black
Material Moulded polyamid reinforced by glass fibres
PTB approval EEx de IIC T6
IP rating IP-66

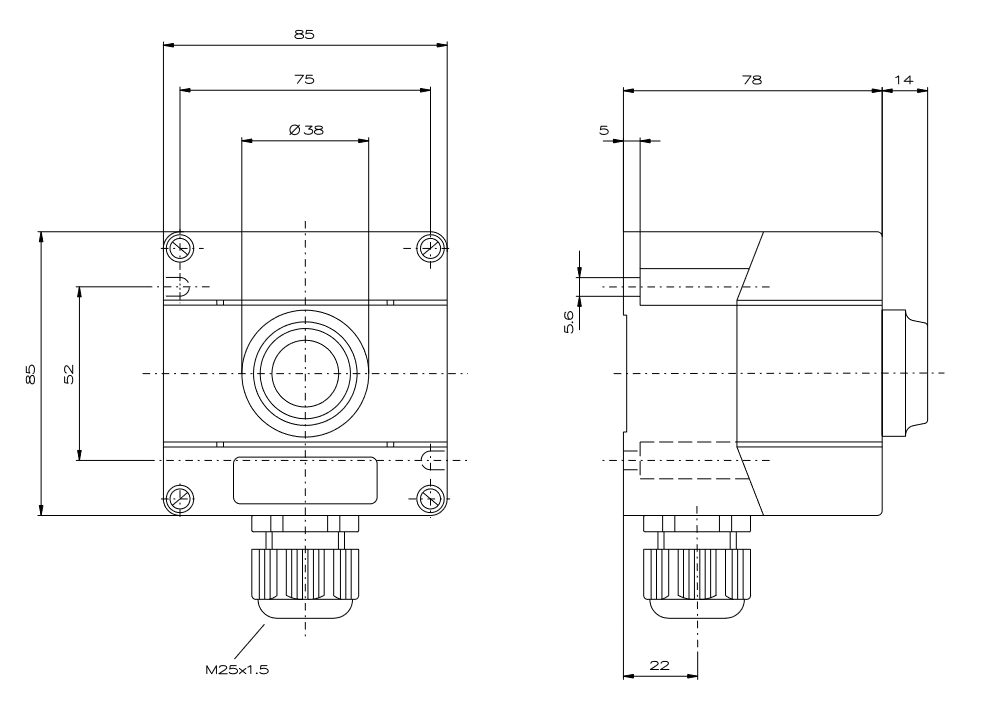

Dimensions (WxHxD) 85 x 85 (+ cable gland) x 92 mm

Date Name Category Size Document
9.08.2023 MD-SDoC-4000011297-IHM-8003-41818-77523 Declaration 72.14 KB Login to download
19.01.2021 3006206015 NEBB-42EX CAD 2D 57.67 KB Login to download
19.01.2021 CEAG NEBB-42-EX PTB 00ATEX3117 Certificate 313.79 KB Download
