HCV 6080RP Fixed Dome CCTV Camera

HCV-6080RP fixed dome camera

Item Number: 2310101072

2MP , D/N, 3,2 - 10 mm IR-LED, 1080p Analouge HD+, IP66 w/back box

  • Max. 2 megapixel resolution
  • 3.2 ~ 10mm (3.1x) motorized varifocal lens
  • Max. 25fps@1080p(P)
  • Day & Night (ICR), WDR (120dB)
  • SSNRⅣ, Motion detection
  • IR viewable length 30m, IP66, IK10
  • Transmission distance max.500m
  • Easy Installation (Plug & play), Dual power (24V AC ±10% & 12V DC ±10%)
  • Power Consumption: Max. 4.2W

The HCV-6080R is an affordable 2MP 1080p Analog HD Vandal-Resistant IR Dome Camera, 3.2 ~ 10.0mm motorized varifocal lens, IR, 120dB WDR.



VIDEO
Imaging Device 1/2.8" 2M CMOS
Total Pixels 1,945(H) x 1,109(V)
Effective Pixels 1,945(H) x 1,097(V)
Scanning System Progressive Scan
Min. Illumination Color : 0.11 Lux (F1.6, 1/30sec), B/W : 0 Lux (IR LED on)
S / N Ratio 52dB (AGC Off, Weight On)
LENS
Focal Length (Zoom Ratio) 3.2 ~ 10mm (3.1x) motorized varifocal
Max. Aperture Ratio F1.6
Angular Field of View H : 110.2˚(Wide) ~ 32˚(Tele) / V : 55.4˚(Wide) ~ 18˚(Tele) / D : 128.4˚(Wide) ~ 36.6˚(Tele)
Focus Control Simple focus (Motorized V/F) / Manual
Lens Type DC auto iris
Mount Type Board type
Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
OPERATIONAL
IR Viewable Length 30m (98.43ft)
Camera Title Off / On (Displayed up to 15 characters per line)
Multi-language support (16)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / User BLC / HLC / WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRIV (Off / On)
Motion Detection Off / On (4 zones)
Privacy Masking Off / On (6 zones)
Gain Control Off / Low / Middle / High / Very High
White Balance ATW / Outdoor / Indoor (4,500K° ~ 8,500K°) / Manual / AWC (1,800K° ~ 10,500K°)
Defog Off / Auto / Manual
Electronic Shutter Speed 1sec ~ 1/12,000sec
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic, Day & Night, Backlight, ITS, Indoor, User
Alarm I/O (MD) Output 1
Remote Control Interface Coaxial
Protocol AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron), CCP (CVI Coax Protocol), TCP (TVI Coax Protocol)
IR Distance 30m (98.43ft)
ENVIRONMENTAL
Operating Temperature / Humidity: -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C (+14°F)
IP66 / IK10
ELECTRICAL
Input Voltage / Current: Dual (24V AC ±10% & 12V DC ±10%)
Power Consumption: Max. 4.2W
MECHANICAL
Color / Material: Ivory / Aluminum

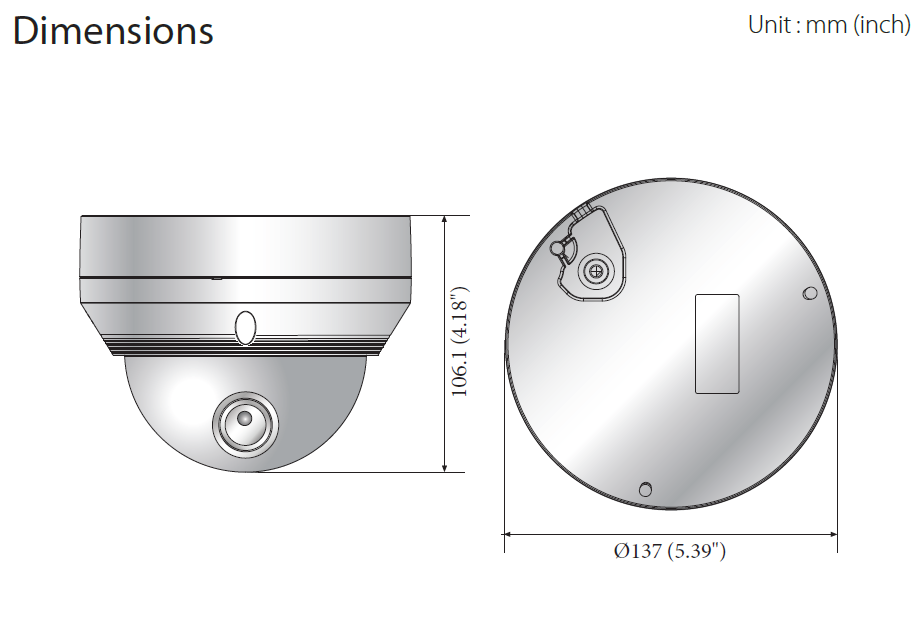

Dimensions (WxH): Ø137 × 106.1mm (Ø5.39" × 4.18")
Weight: 725g (1.60 lb)
