HP-15

Item Number: 4000010759

Horn Loudspeaker, 15W, 20 Ohm, IP66/IP67

  • Suitable for outdoor and indoor installation
  • IP66/67
IP67 IP67

The HP‑15 is a compact 15 W horn speaker delivering a powerful 108 dB SPL at 1W/1m. Built from durable ASA and rated IP66/67, it ensures reliable performance in harsh indoor and outdoor environments. With a frequency range of 330–8000 Hz, wide dispersion, and a robust mounting bracket, the HP‑15 is ideal for public address, safety, and industrial communication systems.

General
Rated power 15 W
SPL 1W / 1 m 108 dB
SPL rated power 118 dB
Effective freq. range 330 - 8000 Hz
Dispersion (-6dB) 1kHz / 4kHz 130° / 33°
Enclosure material / Colour ASA / RAL 7035
Mounting material Plastic bracket
Dimensions Ø 200 x 250D
Termination Spring clamps
Connection 1x M20 cable gland, 1x M20 blanking plug
M20 cable gland sealing range 5 - 12 mm
Weight 0.78 kg
IP-rating 66 / 67
Max. / min. amb. temp 90°C / -50°C
Environmental Condition Exposed

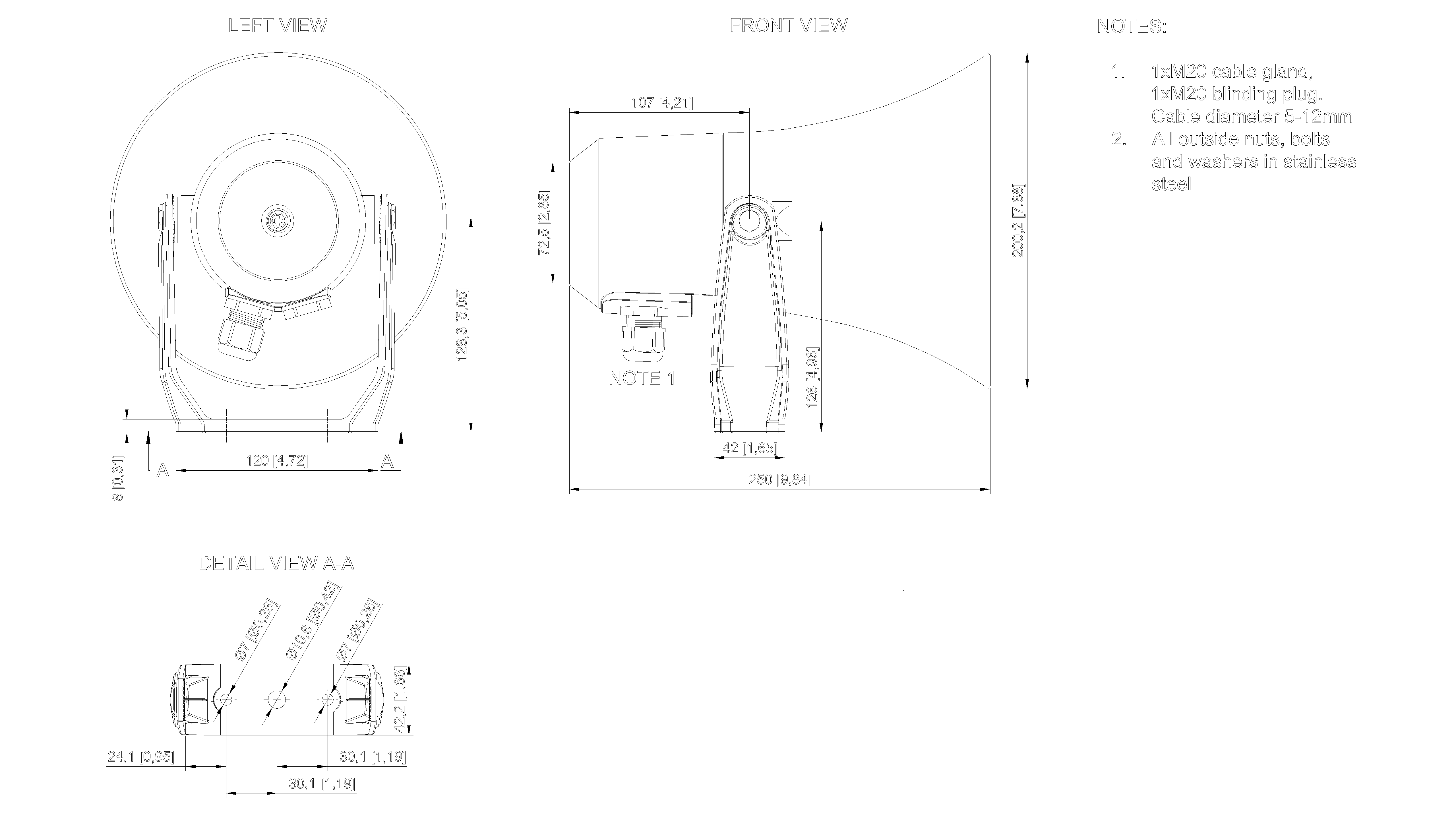

4000010759-HP-15_Dimensional_Drawing

HP-15TF

Horn Loudspeaker, 15W, 100V, IP66/67

Item Number: 3006100056

HP-15T Med Approved Compact Horn Speaker

HP-15T-MED

Horn Loudspeaker, 15W, 100V, IP66/67

Item Number: 2131000161

Date Name Category Size Document
4000010759-HP-15_Dimensional_Drawing CAD 2D 699.07 KB Login to download
MD-SDoC-4000010759-IHM-8003-70767-152073 Declaration 53.82 KB Login to download
