HP-15TF

Item Number: 3006100056

Hornspeaker 15W

  • Horn Loudspeaker for open deck and machinery spaces.
  • Excellent for P.A. / Intercom
  • With transformer for 100V amplifier line
  • 2x M20 cable gland (7-14mm)
  • Fuse
IP66 IP66
IP67 IP67

To install the loudspeaker:

  • Fasten the loudspeaker to the wall/ceiling with two screws through the foot bracket.
  • Remove the lid by 1 screw, lead cable trough cable gland, select required tapping, and connect to the terminal
  • To change the position of the loudspeaker please adjust the bracket (by loosening/tightening the screws) as required.

For optimum performance, always use the correct voltage/power and operate within the frequency limits as stated. Do not open the loudspeaker when energized.



General
Material / Colour ASA / RAL 7035
Dimensions Ø 200 x 250D
Mounting Bracket
Termination Inside screw connections
Weight 1,7 kg
Max. / min. amb. temp 90°C / -50°C
Rated / Max power 15W / 20W
SPL 1W / 1 m 108 dB
SPL rated power 118 dB
Effective freq. range 330-8000 Hz
Dispersion (-6dB) 1kHz / 4kHz 130° / 35°
Directivity factor, Q 8,3
Ingress protection IP66/67
Environmental Condition Exposed

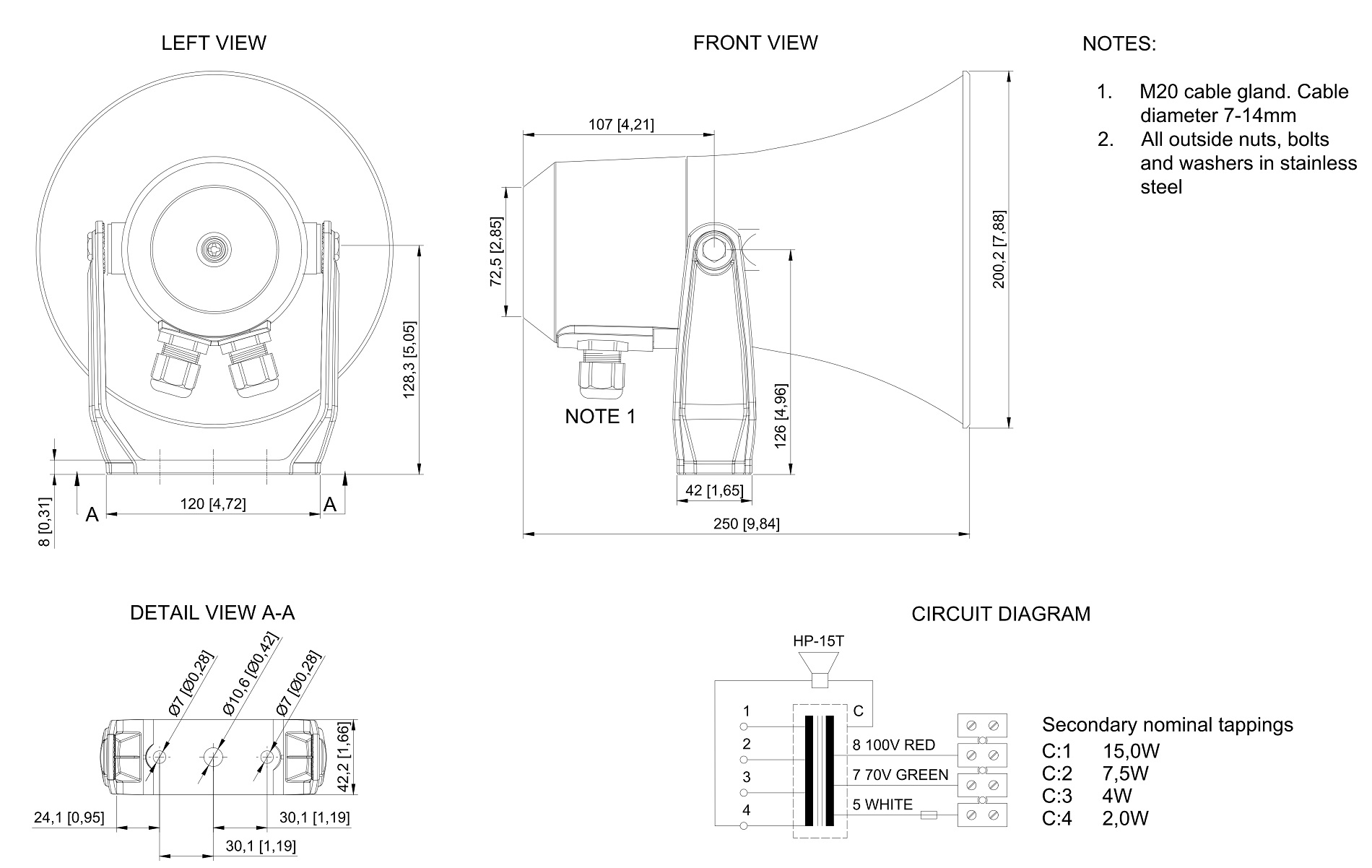

3006100056_HP-15TF_r01_DimDraw
