HP-30TF

HP-30T-MED

Item Number: 2131000162

Horn Loudspeaker, 30W, 100V, IP67

  • Suitable for outdoor and indoor installation
  • IP67
  • 70V / 100V
  • Tappings: 2W - 3.5W - 7.5W - 15W - 20W - 30W
  • MED Approved
MED EU Certification icon MED Certification
IP66 IP66
IP67 IP67

The HP‑30T-MED is a compact 30 W horn speaker delivering a powerful 110 dB SPL at 1W/1m. Built from durable polyamide and rated IP67, it ensures reliable performance in harsh indoor and outdoor environments. With a frequency range of 310–8000 Hz, wide dispersion, and a robust mounting bracket, the HP‑30T-MED is ideal for public address, safety, and industrial communication systems.

Installation, Operation and Maintenance Procedures

  • Remove the lid and lead cable through the cable gland.
  • Connect to terminal 70V: white-green or 100V: white-red.
  • Select the required power by changing the position of the black wire connected to the transformer; choose according to the label inside the loudspeaker.
  • Fasten bracket with 1-3 screws.
  • Fasten the lid with a torque of 2 Nm.
  • To change the loudspeaker's position, please adjust the bracket (by loosening/tightening the screws) as required.
  • For optimum performance, always use the correct voltage/power and operate within the frequency limits as stated.
General
Rated power 30 W
SPL 1W / 1m 110 dB
SPL rated power 124 dB
Effective freq.range 310 – 8000 Hz
Dispersion (-6dB) 1kHz / 4kHz 110° / 32°
Enclosure material / Color Polyamide / RAL 7035
Mounting material Stainless steel bracket
Dimensions (mm) 237Ø x 286D
Termination Spring clamps
Connection 1x M20 cable gland, 1x M20 blanking plug
M20 cable gland sealing range 5 - 12 mm
Weight 2.2 kg
IP-rating 67
Max. / min. amb. temp 110°C / -50°C
Thermal protection Integrated thermal fuse
Environmental Condition Exposed

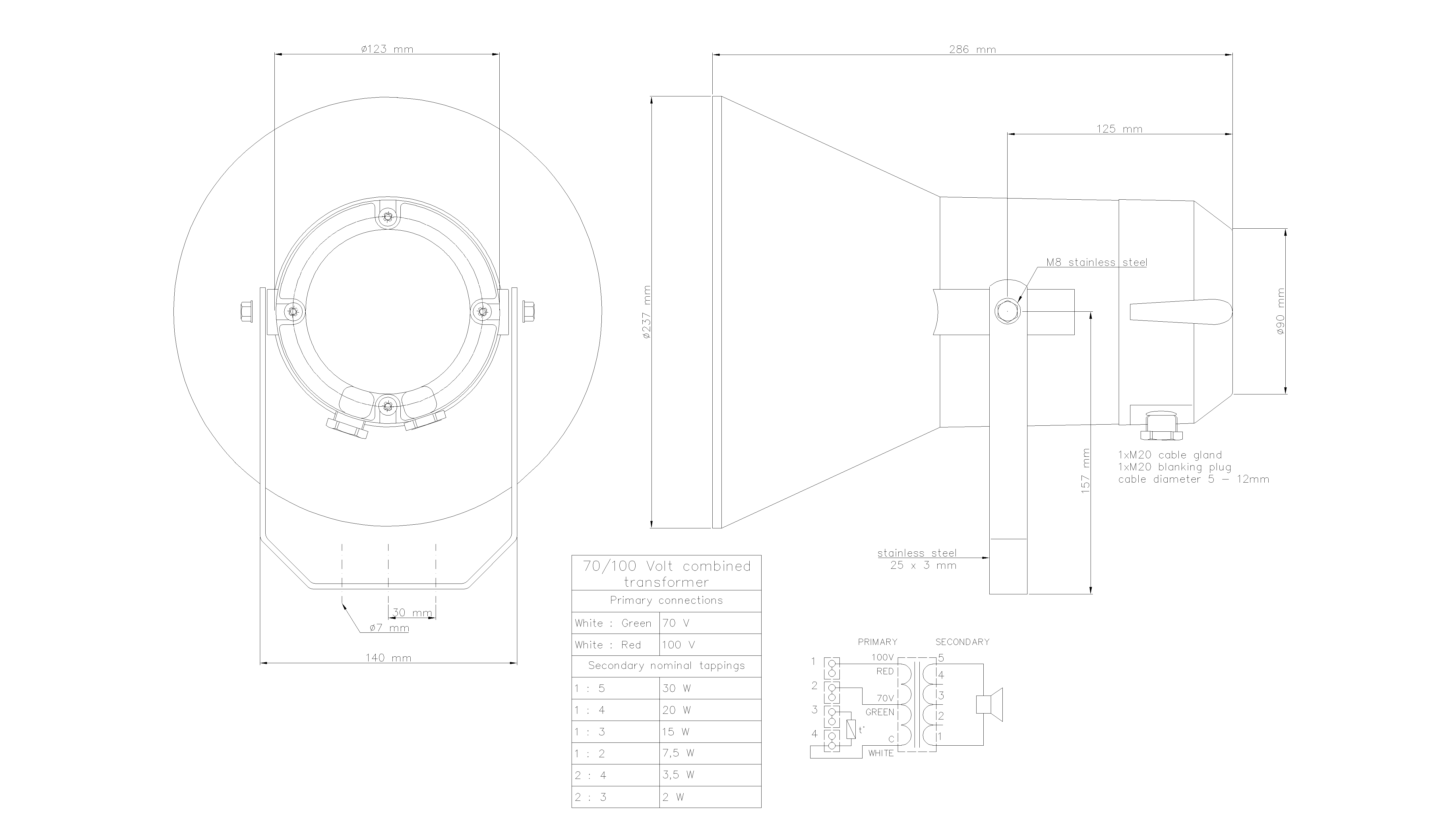

2131000162-HP-30T-MED_Dimensional_Drawing
4000016479-HP-30-Image

HP-30

Horn Loudspeaker, 30W, 20 Ohm, IP67

Item Number: 4000016479

HP-30TF

HP-30TF

Horn Loudspeaker, 30W, 100V, IP67

Item Number: 3006100063
