HP-30

Item Number: 4000016479

Horn Loudspeaker 30W, 20 ohm

  • General purpose 30W horn loudspeaker low ohmic
  • Especially suitabable for use in industrial sites or harsh environments
Marine 40x40 ico Onboard communication
IP67 IP67

When mounting the loudspeaker please ensure that it is re-assembled in the same manner in which it was assembled. Fasten bracket with 1-3 screws. To change the position of the loudspeaker please adjust the bracket (by loosening / tightening the screws) as required. For optimum performance, always use the correct voltage / power and operate within the frequency limits as stated. Do not open loudspeaker when in use. Fasten lid with a torque of 2 - 3 Nm.

General
Material / Color Polyamide / RAL 7035

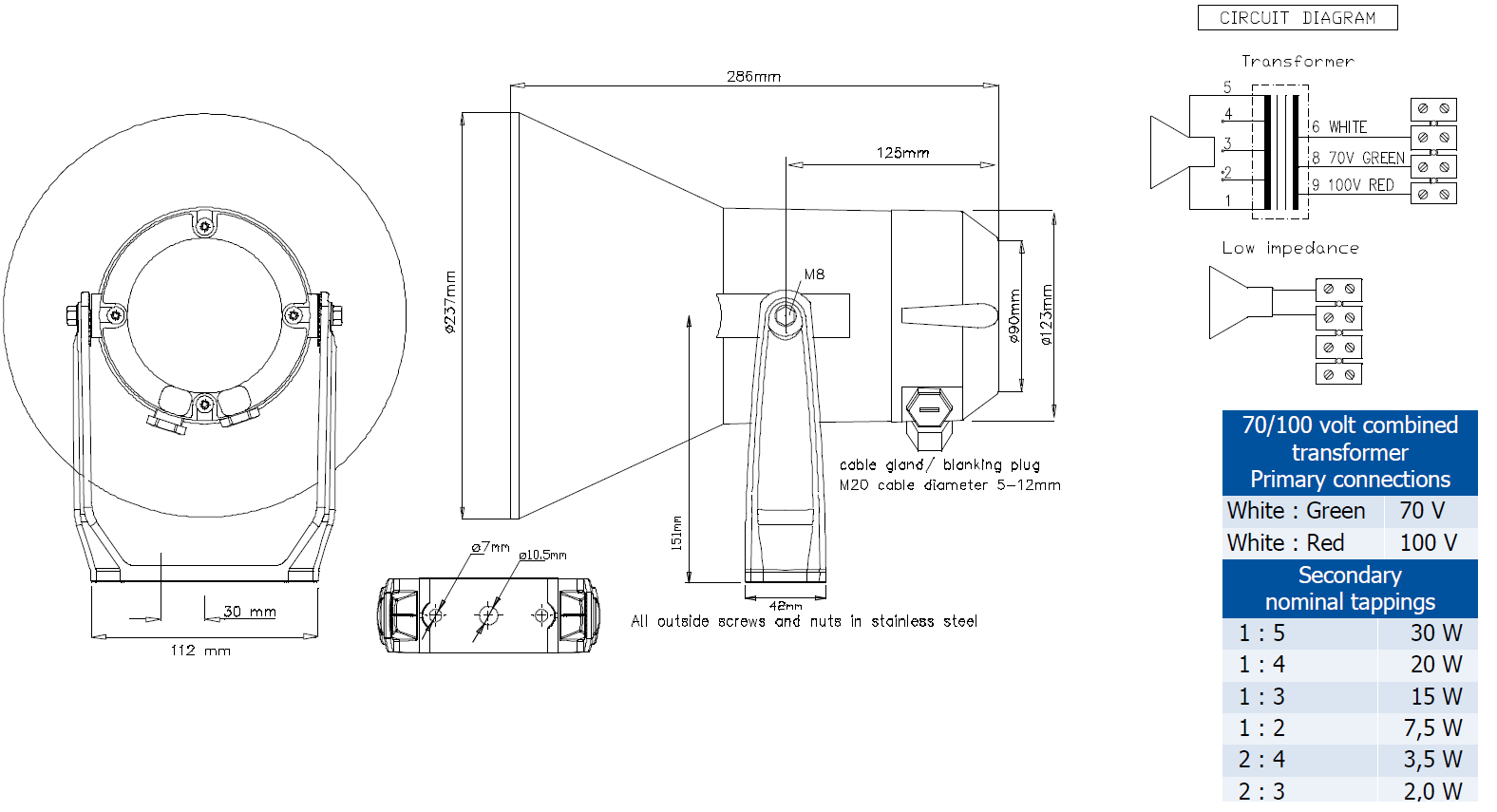

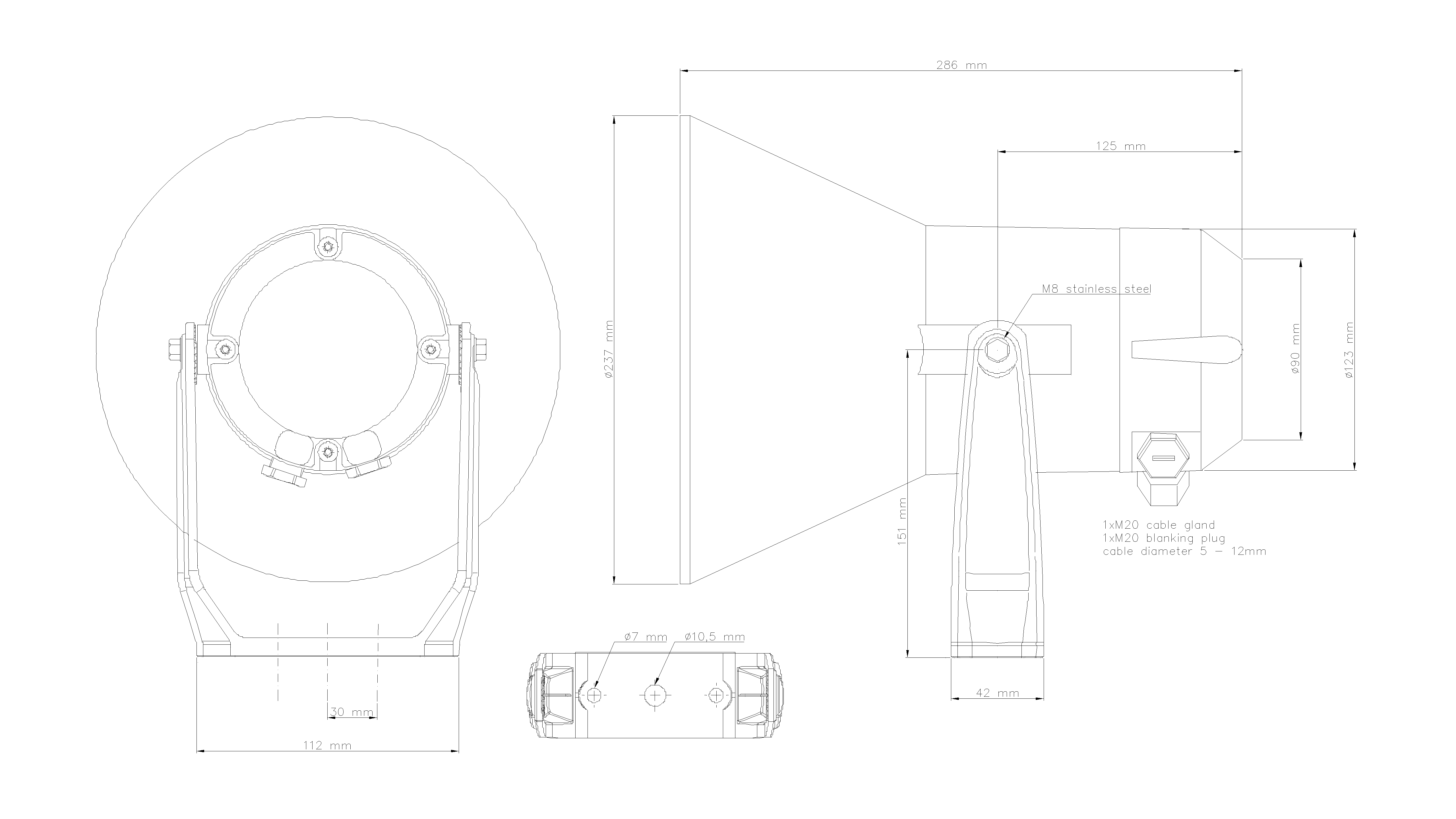

Dimensions Ø237 x 286D mm
Mounting Bracket
Termination Internal screw terminals
Weight 2.2 kg
Rated / Max power 30 W / 40 W

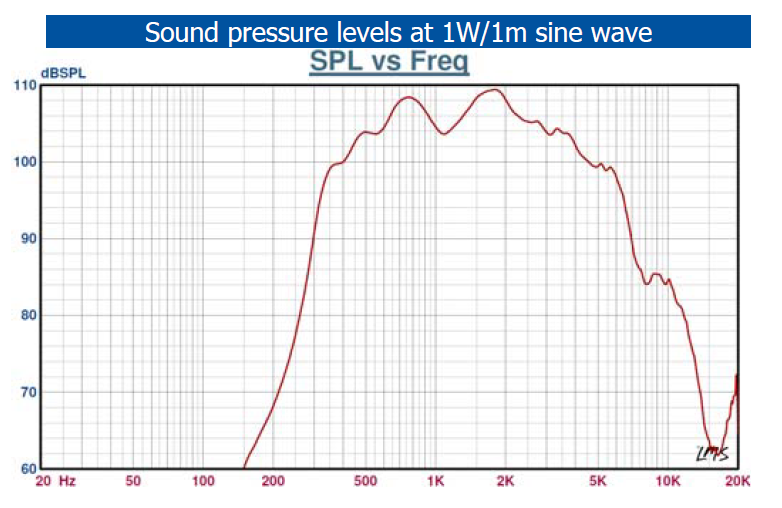

SPL 1W / 1 m 110 dB
SPL rated power 124 dB
Effective frequency range 310 - 8000 Hz
Dispersion (-6dB) 1kHz / 4kHz 110° / 32°
IP-rating 67
Max. / min. ambient temperature 110°C / -50°C
Environmental Condition Exposed
