IC-NDC-JB-V2 Junction box

Item Number: 2310111158

Junction box for IC-NDC Dome Cameras DS-1280ZJ-DM55

  • Aluminum alloy with surface spray treatment
  • With cable outlet(s)
  • Applies to both indoor conditons, and outdoor conditons

NOTICE

  • The mount should be installed on the flat surface.
  • Waterproof rubber is necessary for the outdoor application.
  • The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the junction box.
  • The maximum load capacity of the junction box is 2 kg (4.4 lb.).
Specification
Model DS-1280ZJ-DM55
Model Junction Box
Appearance Hikvision White
Application Suitable for dome camera
Material Aluminum Alloy

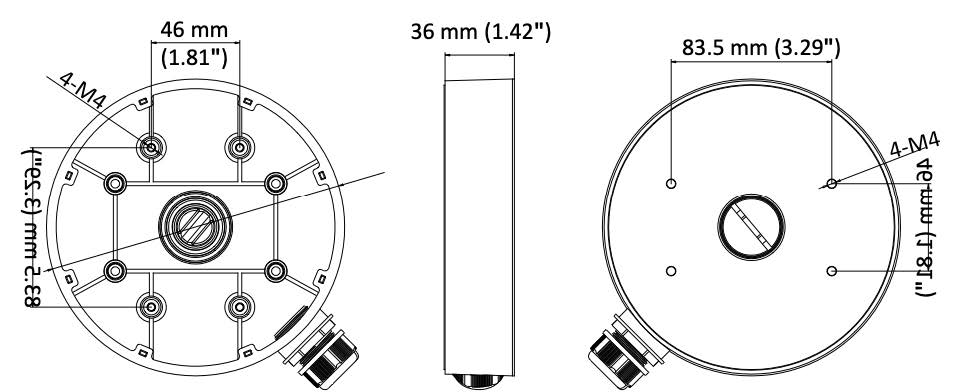

Dimension Φ 155 mm × 36 mm (Φ 6.1" × 1.42")
Weight 300 g (0.66 lb.)

IC-NDC-2MP-V2

2 MP Indoor WDR Motorized Varifocal Dome Network CCTV Camera

Date Name Category Size Document
2.06.2023 MD-SDoC-2310111158-IHM-8003-41782-144231 Declaration 72.15 KB Login to download
