Wiring kit for FXS-GW-24P
ICX-LCM-FXS_Image

ICX-LCM-FXS

Item Number: 1172200021

Wiring kit for FXS-GW-24 gateway

  • Complete wiring kit for FXS-GW-24P
  • Includes termination board and cable for connection to gateway
  • Push-in terminals for easy connection of FXS lines
  • Delivered together with 2x Wago 209-120 for DIN rail mounting

Complete wiring kit for FXS-GW-24P analog FXS gateway with termination board for up to 24 FXS extensions and ribbon cable for connection to the gateway.

GENERAL SPECIFICATIONS
Number of FXS extensions 24
Dimensions (termination board) 143 x 67,7 x 26,5 mm (HxWxD)
Cable 200 cm ribbon cable
Connector type 50 pin SCSI connector

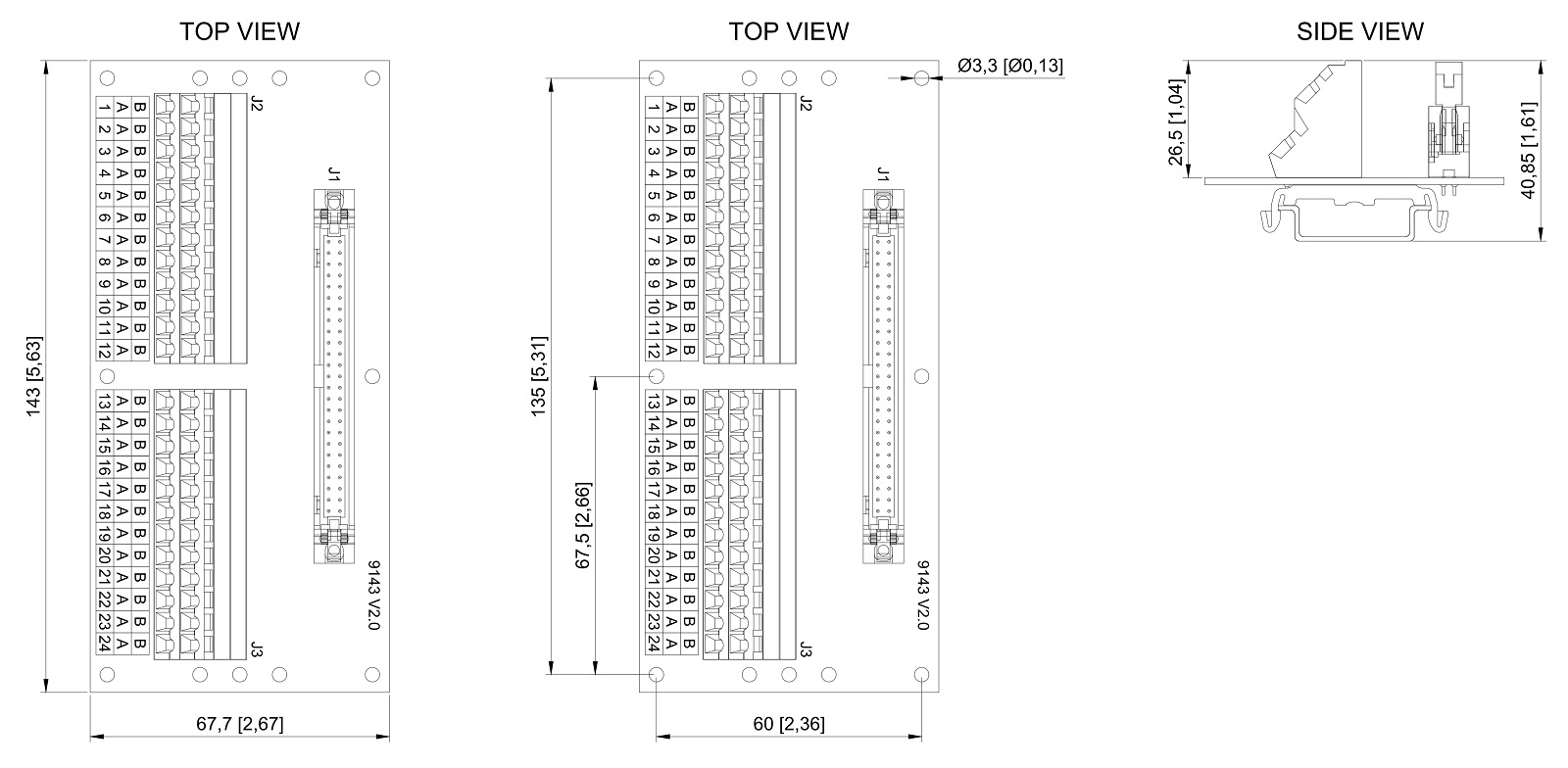

ICX-LCM-FXS - DimDraw

Date Name Category Size Document
5.06.2024 MD-SDoC-1172200021-IHM-8003-57862-177279 Declaration 70.89 KB Login to download
12.03.2024 ICX-LCM-FXS - Dimensional Drawing CAD 2D 369.34 KB Login to download
