IIR-50850-SR Infrared Illuminator Image

IIR-50850-SR Infrared Illuminator

Item Number: 2310102107

Infrared Light

  • Integrated adjustable photocell
  • Adjustable IR intensity
  • Interchangeable beam pattern diffusers to match beam to camera
  • Telemetry input and photocell output for external switching
  • Self-cleaning lens coating technology
IP66 IP66

The IIR-50850-SR Infrared illuminator provides covert or semi-covert lighting for short-range surveillance applications.

IR illumination dramatically improves nighttime imaging and reduces noise and bit rates. The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes.

IIR-50850-SR Infrared illuminator

The IIR-50850-SR Infrared illuminator has a self-cleaning window that reduces maintenance requirements. It is specifically designed for energy efficient operation and therefore, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, and cost-effective installation.

The IIR-50850-SR Infrared illuminator has energy efficient surface-mount high-power LEDs that deliver maximum illumination with reduced power consumption.

Additionally, the advanced electronic control circuitry delivers improved thermal management, long life, and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling.

Overall, the IIR-50850-SR Infrared illuminator offers easy access to power and photocell adjustment for quick and easy installation.

RANGE 850nm
Beam pattern diffuser Achievable Distance* HFOV
10° 156 m 27 m
20° 106 m 37 m
30° 78 m 42 m
60° 49 m 57 m
80° 35 m 59 m
95° 25 m 54 m
* Actual illumination distance achieved is dependent on camera and lens characteristics.
Optical
Wavelength 850nm
IR control Adjustable IR intensity (10% to 100%)
Day/night switch Photocell, sensitivity adjustable (20 lx to 70 lx)
Beam angles 10°, 20°, 30°, 60°, 80°, and 95°
Mechanical
Housing Robust anodized aluminum extrusion, black
Front window Polycarbonate high transmittance (vandalresistant) with self-cleaning technology
Mount Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
Cable 3 m
Dimensions (W x H x D) 110 x 68 x 75 mm
Bracket dimensions (W x H x D) 110 x 125 x 35 mm
Weight 750 g
Bracket Weight 0.2 kg
Power supply 12 to 32 VDC or 24 VAC ±10%
Power consumption 13 W
Environmental
Operation Temperature Range -50 °C to +50 °C (-58 °F to +122 °F)
Protection IP66

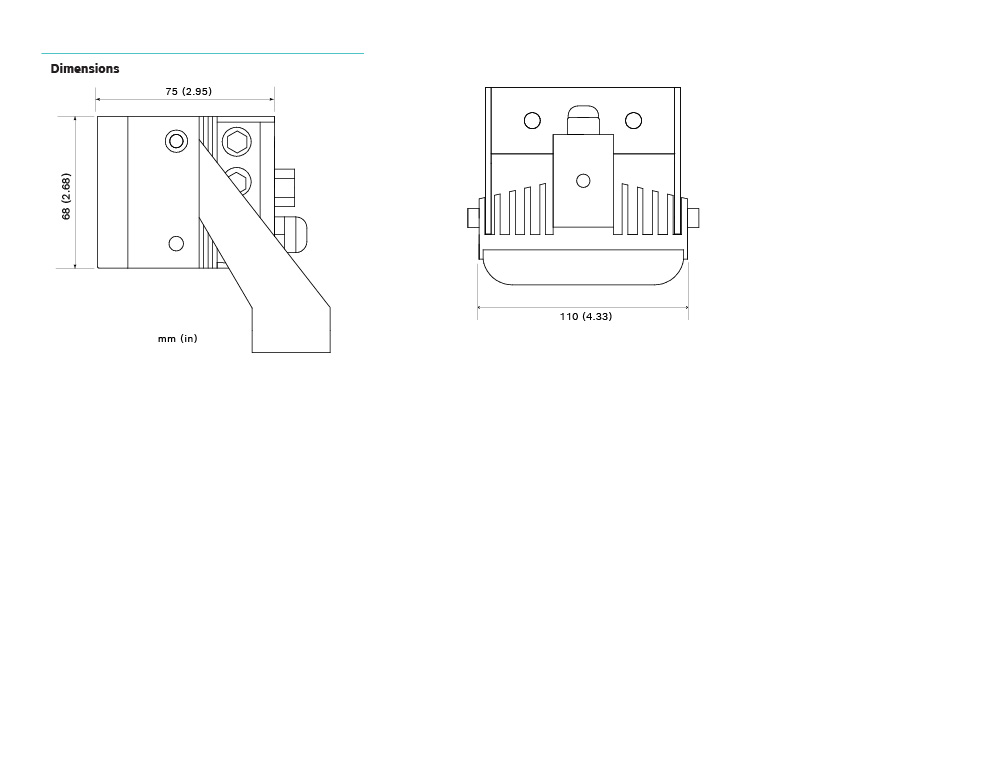

Dimensional Drawing IIR-50850-SR Infrared Illuminator
