IP-LCM-A

Item Number: 1008095201

IP Line Expansion Module with Inputs/Outputs

  • 8 relay outputs
  • 8 control inputs
  • Robust push-in connectors for cables up to 1.5 mm2/ 16 AWG (2.5 mm2/ 14 AWG without ferrules)
  • Audio in/out for interfacing to other systems
  • Device powered via the TKIS-2 kit using PoE or local power
  • All TKIS-2 features available
SIP
IC-Edge
alphacom_40x40 ICX-AlphaCom
EXIGO_40x40 Exigo

The IP-LCM enables easy control of auxiliary devices and integration to other systems

The IP-LCM  is an IP Line Expansion module to the TKIS-2 that adds high power relays and robust control inputs to the kit without extra wiring. DIN-rail mounting allows for a flexible I/O device that reduces the amount of wiring for I/O inside racks and other systems. The large robust connectors enables connections to external cabling without adding extra terminals and have been especially chosen to enable quick and easy connection of such systems.

Mechanical
HxWxD 125.4mm x 270.5mm x 66.6mm
Mounting Protected area, DIN-Mountable
Enviromental
Operational Temperature -40°C to + 70°C
Storage Temperature -40°C to + 70°C
Ingress Protection (IP) N/A
Impact Protection (IK) N/A
Electrical (via TKIS-2)
Power options PoE and/or external power supply
PoE (power over Ethernet) IEEE 802.3af standard, Class 0 (0.44W to 12.95 W)
External power supply 24 VDC (16 – 48 V)
Power consumption Idle 1.8W, max 12W
Connectors
Control Input Push in
- without ferrule 0.5mm-2.5mm / 20 AWG - 14 AWG
- with ferrule with plastic/metal collar 0.75mm-1.5mm / 18 AWG - 16 AWG
Output relays Push in
- without ferrule 0.5mm-2.5mm / 20 AWG - 14 AWG
- with ferrule with plastic/metal collar 0.75mm-1.5mm / 18 AWG - 16 AWG
Ethernet RJ45
All other connectors on TKIS-2 Tool less, spring loaded, vibration proof terminals
Control outputs
Number of Control outputs 8
Relay outputs DPDT (NO, NC, COM)
Switched voltage < 250VAC Rated (400VAC Max - NOTE! lower rating on Relay 5-8 contact set #1)
Switched Load < 2000 VA max
Switching Current < 8A rated (12A max 1s)
Control inputs
Robust control input 8
Type Closing contact or active input
Closing contact / Dry contract 12V
Active input 5Vdc - 48Vdc
General Purpose Input Output
Number 6 (configurable)
Connectors Tool less, spring loaded, vibration proof terminals
Output 12mA as LED drivers
Audio line input
Nominal input level 1 VRMS
Input impedance 10 kΩ
Frequency response 200 Hz to 18 kHz ±3 dB
Audio line output
Nominal output level 1 VRMS
Frequency response 200 Hz to 18 kHz ±3 dB

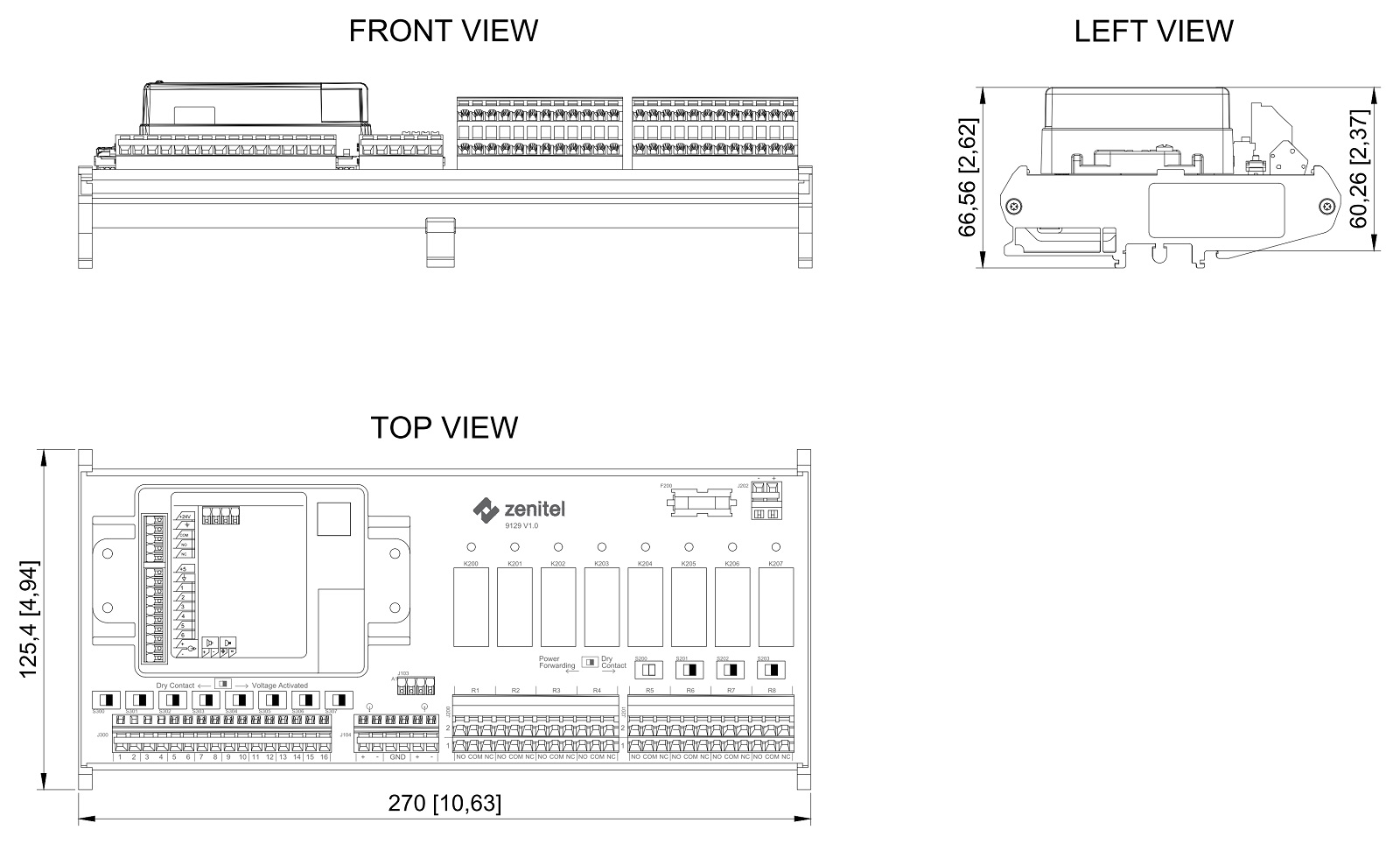

A100K11955 - 1008095201 - IP-LCM-A_DimDraw
