IRR-4

IRR-4

Item Number: 1020600993

Relay box

IP66 IP66
  • Multi-purpose relay unit for closing contact control signal to active external signal devices
  • Capable of powering units using 24V DC and/or 115V AC / 230V A

The IRR-4 can be used to activate an extra signal device, such as rotary or stroboscopic light, in noisy areas. Connect a potential-free normal open signal to the control input of the relay box, a power supply to the correct input and connect your signal device to the correct output. When the control input shorts, the output will engage the power.

General
Material / Color ABS / Grey
Dimensions (mm) W x H x D 120.5 x 122.5 x 55.5
Mounting Wall
Cable inlet 1 x PG-11, 2 x PG-13.5
Ingress Protection Rating IP-66
Termination Removable screw terminals
Electrical
Operating Voltage 20-28 VDC
Relay Breaking Current (AC/DC) 6.3A (fuse)

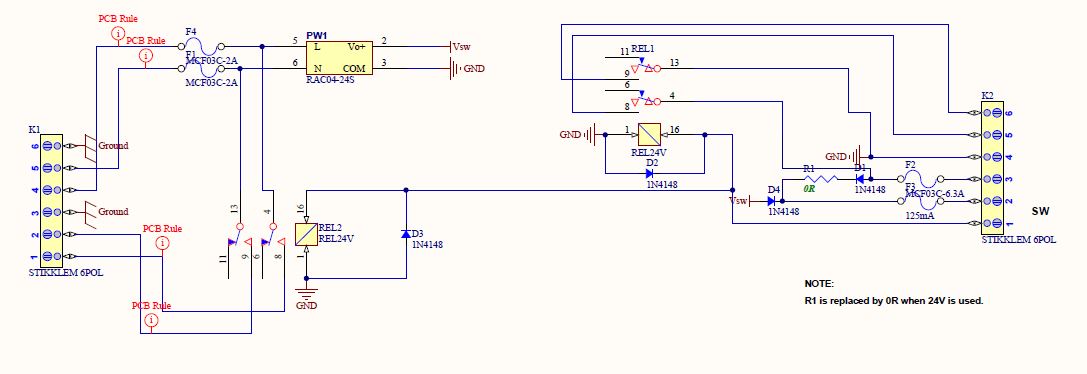

IRR-4 schematic

IRR-4 Terminal description



IRR-4

Date Name Category Size Document
15.05.2023 MD-SDoC-1020600993-IHM-8003-41808-17578 Declaration 72.16 KB Login to download
18.09.2019 1020600993 IRR-4 Relay Unit CAD 2D 257.53 KB Login to download
