ITCS-1A-10

Item Number: 4000016474

ITCS Control Unit for 10 positions

ITCS-1A-10 is a control unit for indication and acceptance of calls from more calling places in the same system.

  • Power ON switch incl indicator
  • Alarm leds
  • Buzzer
  • Accept Buttons
  • LED/Buzzer test button

Dimmer

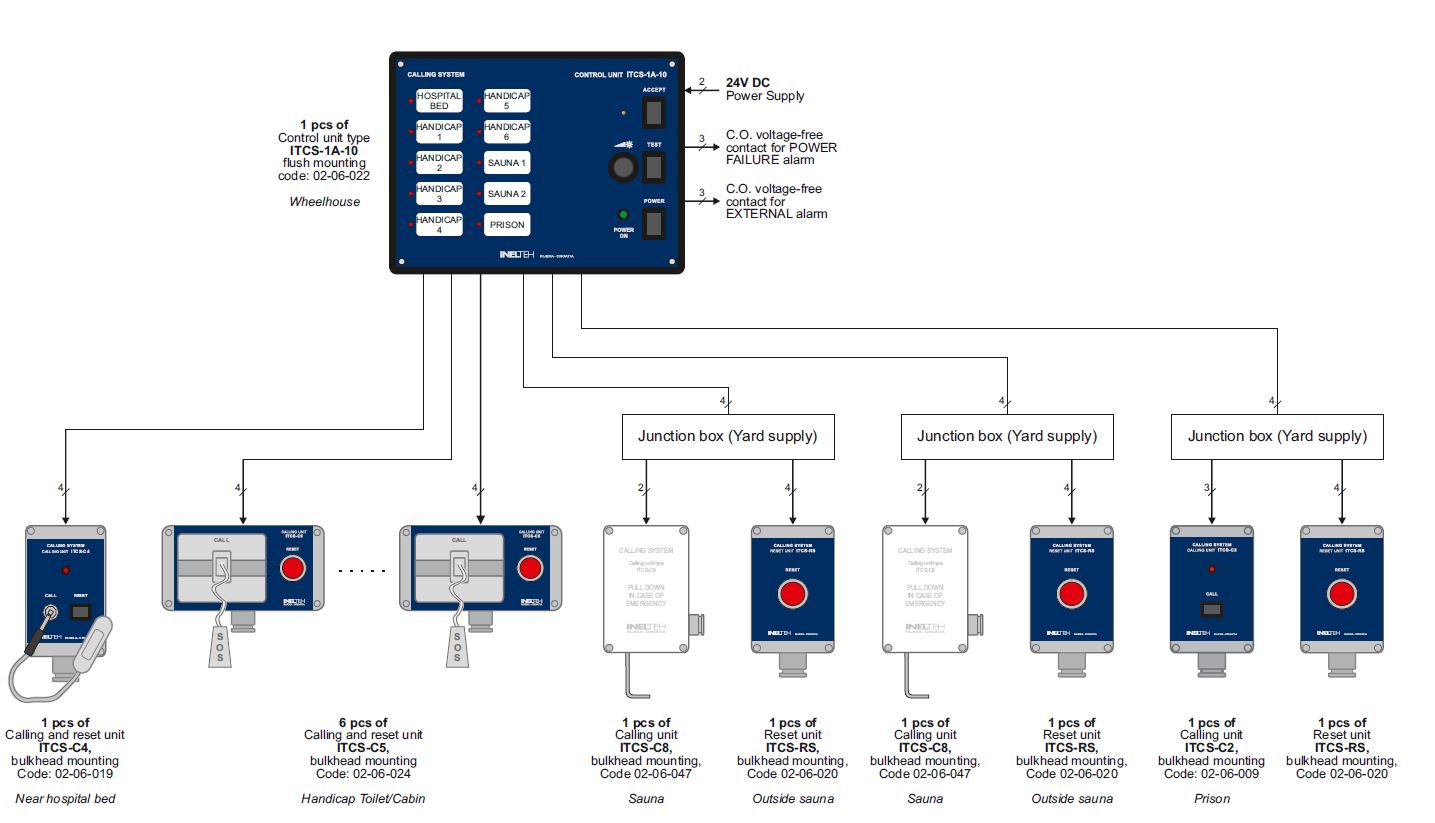

ITCS-1A-10 - connection block diagram

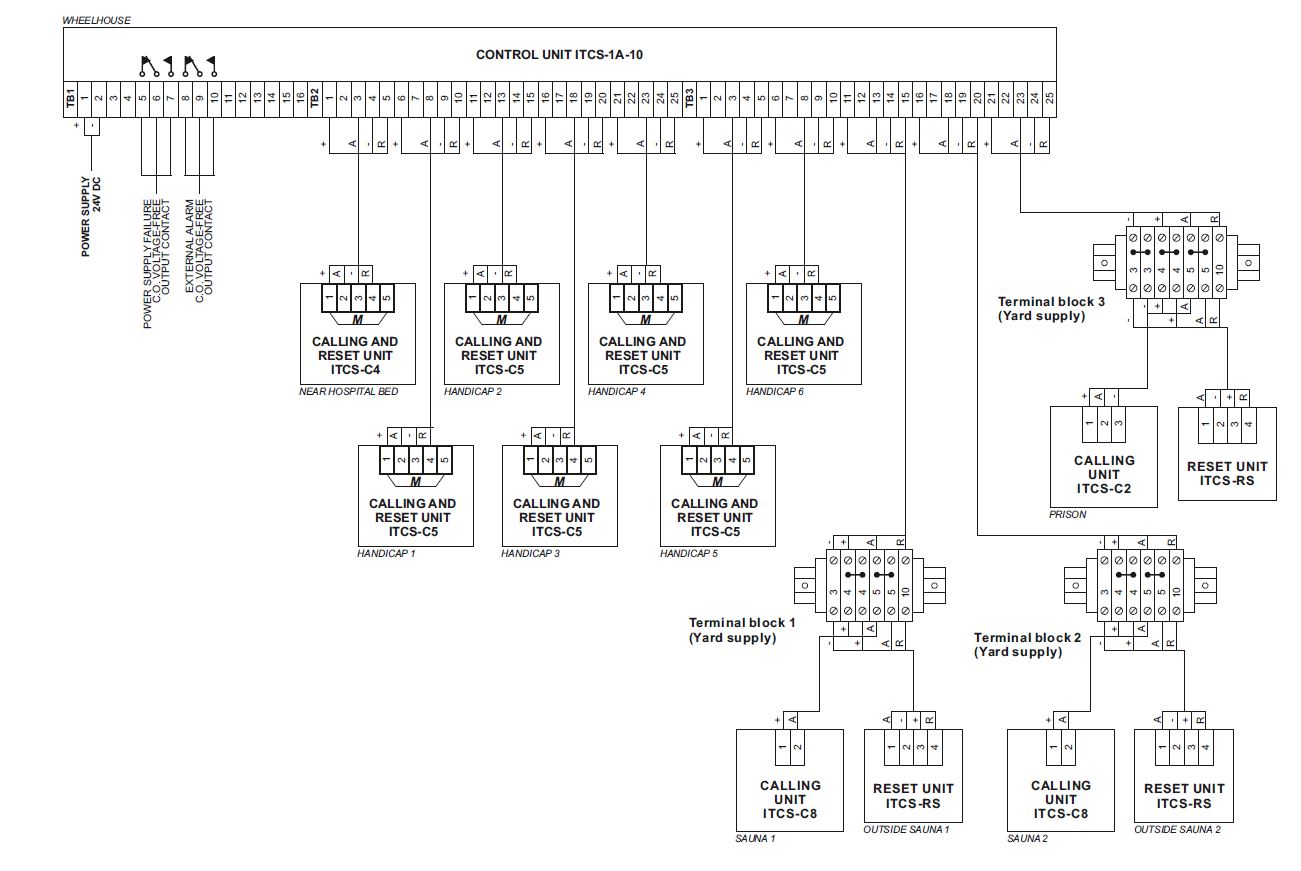

ITCS-1A-10 - connection diagram



ITCS-1A-10 - connection details



ITCS-C1-10 - measures

Mechanical
Dimensions (WxHxD) 196x144x96 mm
Weight 5.1 kg

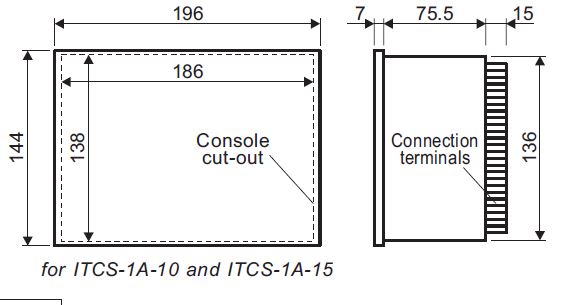

ITCS-1A-10 - outlines

Date Name Category Size Document
7.06.2024 MD-SDoC-4000016474-IHM-8003-57862-177308 Declaration 70.89 KB Login to download
21.02.2024 Calling system ITCS, ITCS-A, documentation, ver3 Manual 2.84 MB Download
