ITCS-C6, Unit For Calling And Call Reset - Layout

ITCS-C6

Item Number: 4000019391

Call and Reset unit

  • Water resistant (IP56)
  • Illuminated Call button (green)
  • Illuminated Reset button (red)

ITCS-C6 is water-resistant (IP 56) unit for calling and call reset. Call is done with illuminated green "CALL" push button. When call is done, red bulb situated in "RESET" push button is lighted up. Call reset can be done by that push button. After call is reset, red light goes off. Green bulb in "CALL" push button lights all the time (when system is on), to ensure visibility in dark spaces

Technical
Dimensions (WxHxD) 80 x 125 x 58 mm (HxWxD)
Weight 0.27 kg
Cable entry 1 pc. Gland - PG13.5
Power consumption 24VDC / 0.026A

4000019391 Terminals

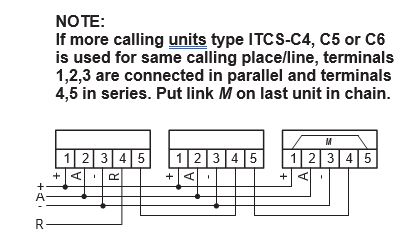

4000019391 Termination

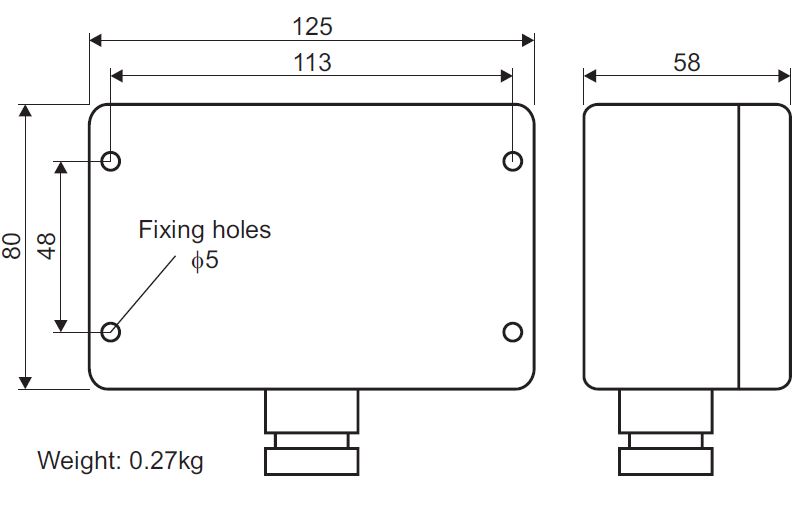

4000019391 - ITCS-C6 dimensions
