JBP-120EExeN

Item Number: 2340110016

Ex Junction box for Ex loudspeakers

IP67 IP67
Atex

Ex Junction box with 6 possible M20 entries, earth plate and 2,5 mm Wago terminal. Delivered with 3 cable glands and 4 blindplugs M20 unmounted.
Certified by/ Certification code / Number : NEMKO / Ex e IIC T6 Gb/ 12ATEX1207X

Installation, Operation and Maintenance Procedure:

  • Screw the box to the wall or ceiling with 2-4 screws.
  • JBP-120 has 6 entries, and is delivered with 3 pieces M-20EExe ATEX cable glands and 4 pieces M-20EExe ATEX blind plugs.
  • Fasten lid with four screws approximately 1 Nm.
  • JBP-120EExeN is delivered with Wago terminal 264 with max 2,5 mm².
General

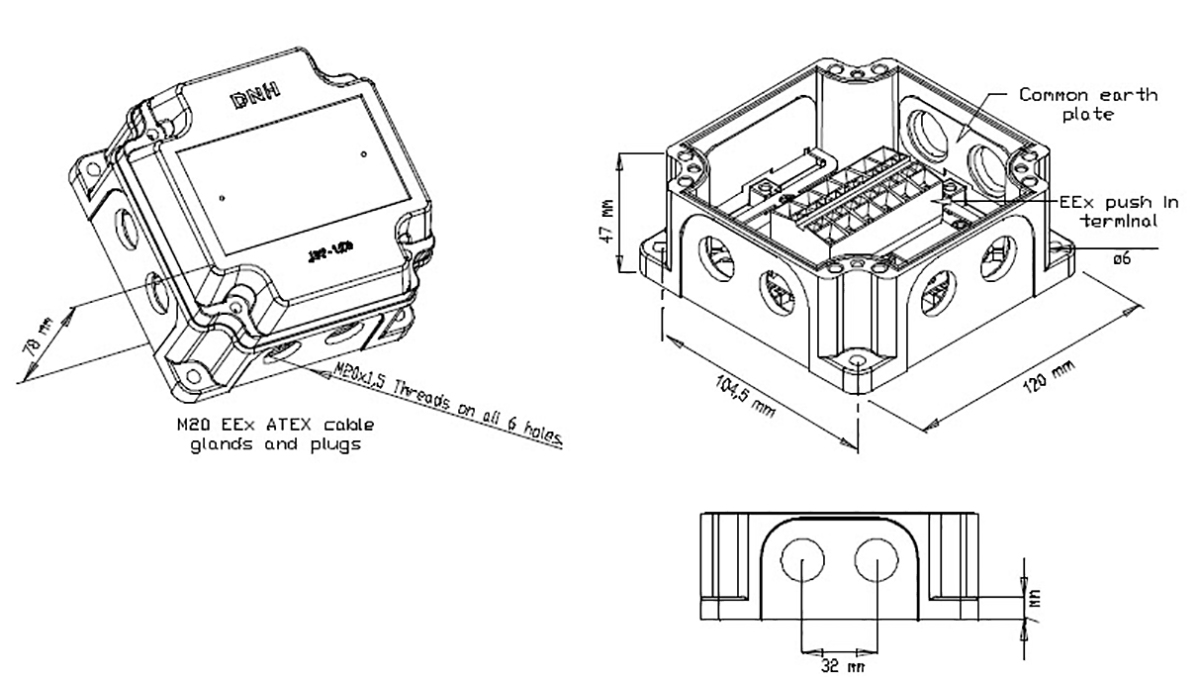

Dimensions WxHxD 120 x 47 x 104,5
Material / Color Antistatic PA/ Black
Mounting 4 screws
Termination Wago 264 terminal /earth plate
Weight 0,4 kg
Max. / min. amb. temp -50°C ≤ Ta ≤ +50°C
Cable inlet 1 3 x M20 EEx ATEX
Cable inlet 2 4 x M20 blindplugs M20
Environmental Condition Exposed
JBP-120EExeN
Date Name Category Size Document
23.06.2023 MD-SDoC-2340110016-IHM-8003-41770-126506 Declaration 72.18 KB Login to download
25.09.2019 JBP-120EEXEN 12ATEX1207X Issue 2.pdf Certificate 281.29 KB Download
25.09.2019 JBP-120EEXEN Lab 11457-8S CoC.pdf Certificate 137.93 KB Download
25.09.2019 JBP-120EEXEN NEM 12 0012X.pdf Certificate 294.1 KB Download
25.09.2019 JBP-120EEXEN Nemko QAN 98ATEX564Q.pdf Certificate 73.83 KB Download
