Junction Box for P-8301 Microphone

Item Number: 4000019634

  • IP 67
  • 2x Cable glands included
  • 4x blind plugs included
  • Earth plate

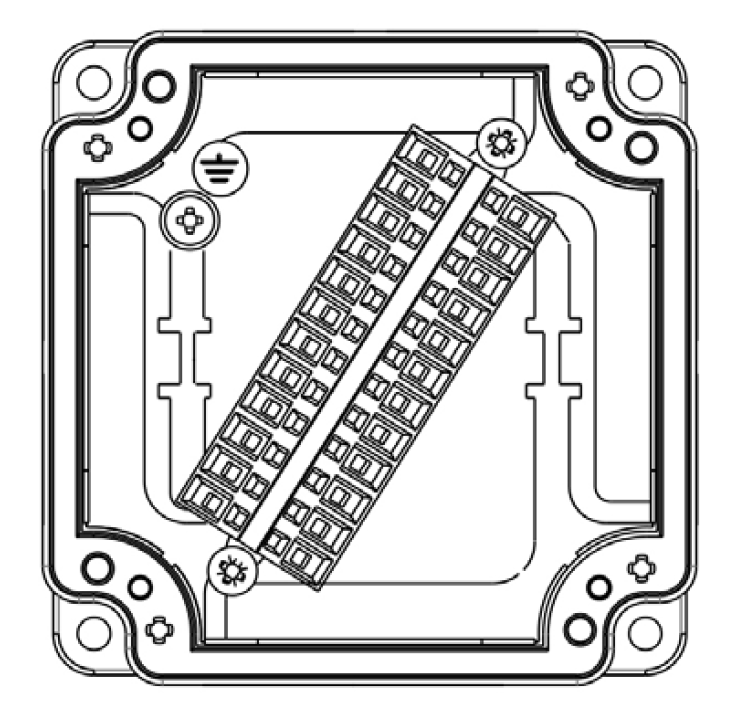

  • Wago Terminal board 12x 2,5mm
  • For use with SR-8301 MkII Microphone Unit

Junction Box for P-8301 MkII Microphone (Sound Reception System)

Product Description

The Junction Box P-8301 is a dedicated connection box designed exclusively for use with the SR-8301 MkII Microphone Unit in the Sound Reception System.

It provides protected cable termination between the microphone and the system cabling, ensuring reliable signal transmission for foghorn detection and sound monitoring applications.

The unit forms part of the P-8300 MkII Sound Reception System, where external microphones detect audible signals (e.g., foghorns) and forward them to the display unit on the bridge.




Material ASA halogen free
Color RAL 7035
Weight 0.35 kg
Termination 12 pcs - Wago 264 terminal /earth plate / 2.5 mm² / 600V
IP Rating IP-67
Max./min. Ambient Temperature 90 °C / -50 °C
SPL 1W/1m 0 dB
SPL Rated Power 0 dB
Cable Entry Sides/Bottom
Glands 2 pcs M20 / 5 Blind Plugs
