L-101-230Y

Item Number: 2340220015

Xenon Strobes 230VAC, IP66, Yellow

  • Pluggable terminals.
  • In and out terminals.
  • Multiple, user selectable flash rates.
  • User replaceable Xenon tube lamp.
  • Can be stacked to create multi-signal units.
IP66 IP66

The L-101-230Y is a compact, robust 5 Joule Xenon strobe beacon ideal for all general signalling applications including fire, security and process control. Features an automatically synchronised flash rate of 1Hz (60 flashes per minute).

Also available in following colors:

  • 2340220013 - L-101-230R Xenon Strobe, 230V AC, IP-66 Red
  • 2340220014 - L-101-230A Xenon Strobe, 230V AC, IP-66 Amber
  • 2340220015 - L-101-230Y Xenon Strobe, 230V AC, IP-66 Yellow
  • 2340220016 - L-101-230G Xenon Strobe, 230V AC, IP-66 Green
  • 2340220017 - L-101-230B Xenon Strobe, 230V AC, IP-66 Blue
  • 2340220018 - L-101-230C Xenon Strobe, 230V AC, IP-66 Clear
GENERAL
Dimension (HxWxD) (mm) 86 x 86 x 83
Weight 0.20 kg
Energy 5 Joules (5Ws)
Flash rate 1 Hz
Terminals 0.5 to 4 mm2 cables
Lens Colours Red, Amber, Yellow, Green, Blue, Clear
Tube life 70% after 8000000 flashes
IP IP-66
Operative temperature -25 ̊C to +55 ̊C
Relative humidity 90% at 20 ̊C
Version: Voltage range: Current mA:
230 VAC 50/60 Hz +/-10% 35 mA
ITEM NUMBER DESCRIPTION
2340220013 L-101-230R Xenon Strobe, 230V AC, IP-66 Red
2340220014 L-101-230A Xenon Strobe, 230V AC, IP-66 Amber
2340220015 L-101-230Y Xenon Strobe, 230V AC, IP-66 Yellow
2340220016 L-101-230G Xenon Strobe, 230V AC, IP-66 Green
2340220017 L-101-230B Xenon Strobe, 230V AC, IP-66 Blue
2340220018 L-101-230C Xenon Strobe, 230V AC, IP-66 Clear
Accessories
9021903001 Spare Lens for Beacon L101, Green

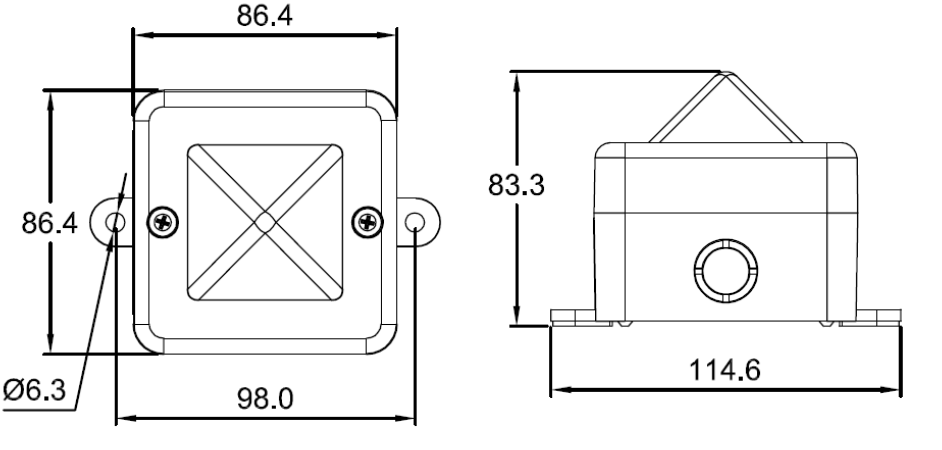

L-101-230Y Dimensions

Date Name Category Size Document
4.07.2023 MD-SDoC-2340220015-IHM-8003-41786-10237 Declaration 72.18 KB Login to download
21.12.2020 23402200xx L-101xx Xenon Strobe CAD 2D 195.25 KB Login to download
21.12.2020 L101 Xenon Strobes DoC.pdf Certificate 107.56 KB Download
16.10.2020 L101XAC230AR_Russian_EAC_Cert.pdf 1.66 MB Download
16.10.2020 L101XAC230AR_VdS_Cert.pdf 406.58 KB Download
