MarinMON 19" Panel Mount Monitor

Item Number: 2310102126

Flush Mount Monitor

  • Dimmable 10 -350 nits
  • 19” steel enclosed industrial display
  • IP65 compliant front bezel
  • VESA mount 75 x 75
  • Anti-reflection glass in front for protection
  • Default AC 100~240V input / DC 11~32V input

The MarinMON 19" Panel Mount Monitor with 1280 x 1024 has a default input of VGA, DVI, RCA, and S-Video.  It features a 19 inch steel enclosed industrial display with a IP65 compliant front bezel.

LCD
Display Type 19" TFT LCD
Max. Resolution 1280 x 1024
Max. Color 16.7M
Contrast Ratio 1000 : 1
View Angle 170 (H) / 160 (V)
Backlight Lifetime 50,000 hours
Luminance 350 nits
Mechanical
Construction Black Steel Front Panel, Option Front Bezel: 304 S.S / 316L S.S. / Aluminum Chassis Black Steel Back Cover
Mounting Panel mount / VESA mount 75 x 75 / Rack Mount (option)
IP Rating Front side IP65
Dimensions 467 x 379 x 68 mm
Net Weight 7. 6 kg
Environmental
Operating Temperature 0~50° C
Storage Temperature -20~ 60 °C
Storage Humidity 10~90 % @ 40 °C non-condensing
Certificate CE / FCC Class A
Default Inputs DVI, VGA, CV, and YC

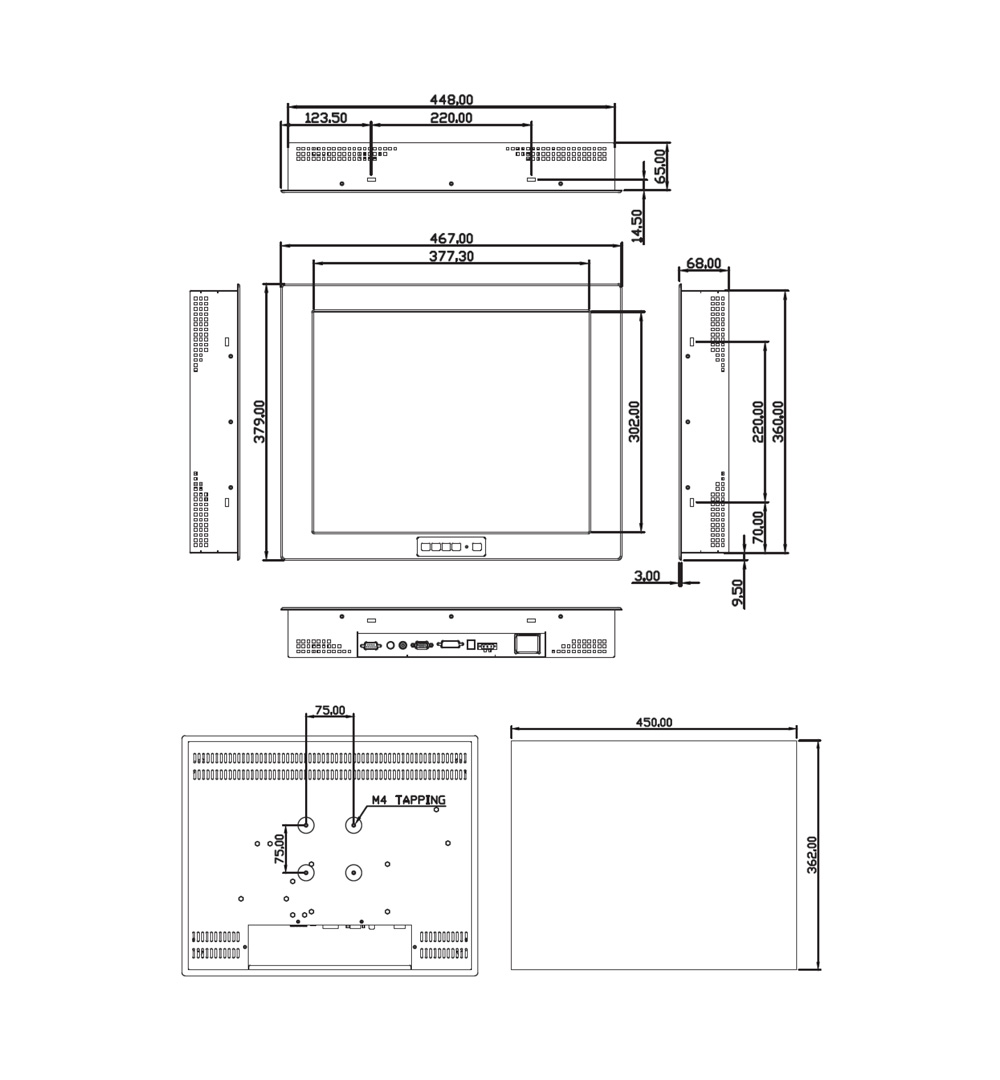

Dimensional Drawing MarinMON 19 inch Panel Mount Monitor

Date Name Category Size Document
26.03.2024 MD-SDoC-2310102126-IHM-8003-56005-126418 Declaration 71.87 KB Login to download
22.09.2023 2310102126 MarinMON 19 DoC Certificate 181.74 KB Download
