Maximus MMX24AZA Ex-proof Camera

Item Number: 2310131040

Ex Proof Camera

  • Certifications for use in Zones 1 and 2, IIB T6 or T5 Group (Gas) and in Zones 21 and 22, IIIC T85°C or T100°C Group (Dust)
  • AISI 316L stainless steel construction
  • Supports for ceiling, wall, and parapet installation
  • Camera Full HD 1080p, 3x with image stabilizer
ONVIF Conformant
IP66 IP66
IP67 IP67
Atex
H.264

Maximus MMX24AZA Ex-Proof Camera is perfect for efficient video surveillance and control of processes in hazardous environments where the atmosphere is potentially explosive due to the presence of inflammable gases or dust.

The housing is entirely manufactured in stainless steel AISI 316L offering complete resistance to corrosion. It can be installed in narrow locations due to its compactness.

The IP66/IP67/IP68/IP69 level guarantees complete protection against bad weather and water immersion. Another important feature of the CCTV camera is the extended certification temperature range of -40°C to 70°C.

MAXIMUS MMX24AZA Ex-Proof Camera

The camera is Lloyd's Register Type Approval System Test Specification Number 1 certified and therefore, can be used in Marine and Offshore applications for environmental categories ENV1, ENV2, ENV3 and ENV5 (eg. passenger ships, open-air decks, closed spaces and technical areas that may be subject to heat generated by other equipment or potentially explosive areas).

Description
Weight 8.5kg
Cable entry 1 hole, 1/2" NPT. Cable gland Ex d 1/2"NPT (with pre-installed cable only)
Supply voltage/Current consumption 24Vac ±10%, 1.32A, 50/60Hz, 24Vdc ±5%, 0.9A, PoE+ (IEEE 802.3at)
Ethernet connection RJ45 100 Base-TX
Device configuration TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
Streaming RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
Video compression H.264/AVC, MJPEG, MPEG4, snapshot JPEG
Video streams 3 independent video streams Full HD
Image resolution from 320x180pixel up to 1920x1080pixel in 8 steps
Camera Day/Night Full HD 3x
Resolution Full HD 1080p (1920x1080)
Image Sensor 1/2" type Exmor™ CMOS sensor
Effective Pixels Approx. 2.17 Megapixels
Signal system Max 1080p/30fps
Minimum Illumination (ICR-OFF) Color, 0.15lx, (1/30s) 0.0375lx, (1/7.5s), (Slow Shutter)
Minimum Illumination (ICR-ON) B/W, 0.1lx, (1/30s), 0.002lx, (1/7.5s), (Slow Shutter)
Lens From f= 3.6mm (wide) up to 10mm (tele), From F1.5 up to F2.7
Zoom 3x (96x with digital zoom)
Horizontal Viewing Angle From 88.4° (wide) up to 40.7° (tele)
Minimum object distance to 300mm (11.8in) (wide) up to 1000mm (39.4in) (tele)
Shutter speed From 1/8s up to 1/30000s, 14 steps
White balance Auto, Indoor, Outdoor, Manual
Wide Dynamic Range On/Off
Operating temperature from -40°C (-40°F) up to +65°C (149°F)
Certification temperature from -40°C (-40°F) up to +65°C (149°F) (T6/T85°C) or +70°C (158°F) (T5/T100°C)
IP protection degree IP66, IP67, IP68 (2 hours, 5m (16ft)), IP69

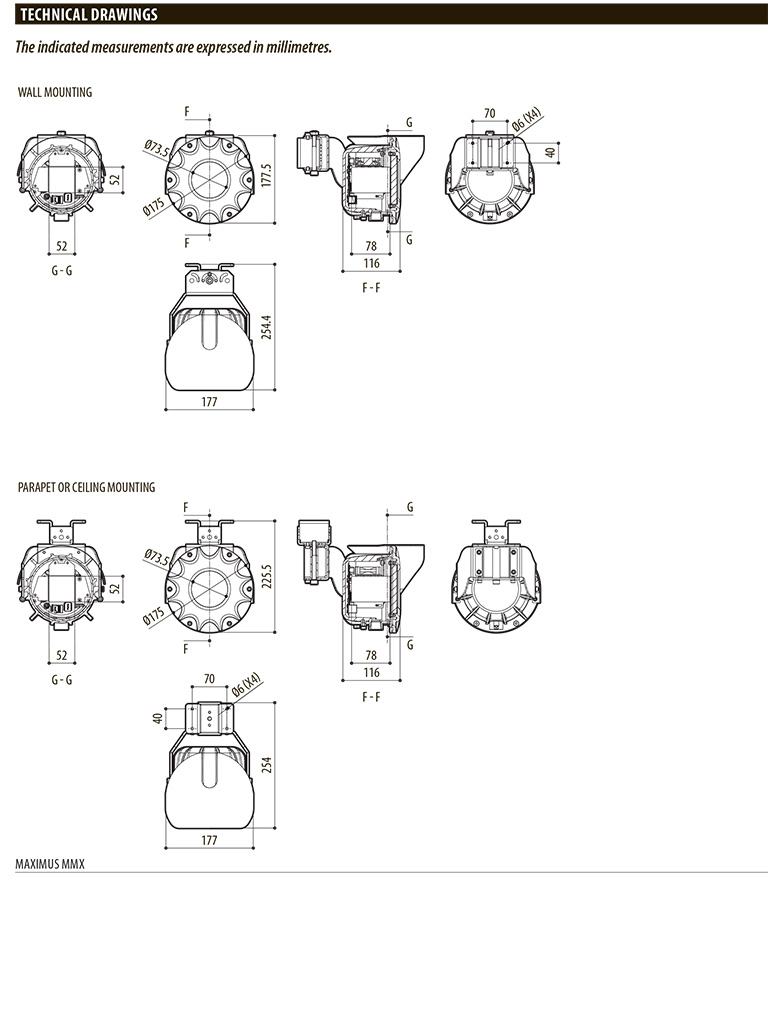

Dimensions (WxHxL) See Dimension Drawing

dimensional drawing 2310131040 MMX24AZA

Date Name Category Size Document
30.04.2024 MD-SDoC-2310131040-IHM-8003-56596-145647 Declaration 71.87 KB Login to download
9.10.2023 2310131040 Maximus MMX24AZA Explosion Proof Camera Manual Manual 32.73 MB Download
