NV-PL-048-F

Item Number: 2220015007

48 port IP over two-wire switch

  • Upgrade to IP with re-using existing single-pair cabling
  • 10Mbps symmetrical and PoE over single-pair cable
  • Up to 365 m between switch and endpoint
  • Robust power management capabilities

The NV-PL-048-F is a managed switch that represents an ideal solution for upgrading to an IP-based system or to extend the reach of any IP network. Combined with the NV-PLLK adapter the switch delivers Ethernet and PoE over a single-pair UTP cable with up to 365 m reach.

Dimensions 19 inches x 1HU, 252 x 435 x 44,5 mm
Weight 3,6 kg
Operating temperature 0 - 55 °C
Power supply Unit auto-sensing 100-240VAC, 50/60 Hz Power output: 500W max at 100VAC, 1000W max at 240VAC
Power Injection (PoE) DC voltage: 48VDC-56VDC; Endpoint devices must be compliant with IEEE 802.3af
Power consumption 40W (switch only)
Interface: Ethernet Uplink (Trunk IP) Maximum 2 uplinks, each 1Gb/s (full duplex), either: 2 mini-GBIC ports: 1000 Base-TX/SX/LX/EX/ZX/LHX (determined by SFP, transceiver module installed), Ethernet IEEE 802.3z, fiber optic cable, or 2 RJ45 ports: 10/100/1000 Base-T auto-sensing, independent speed selection, Ethernet IEEE 802.3, CAT5e copper cable
Interface: Downlink (PoE and IP to Adapter) 2 x RJ21 male telco connector (standard), 24 pairs used. Distance: 1200ft (365m) over CAT3 UTP cable, 24 AWG. Speed: 10 Mbps (full duplex) Power: 22 Watts
Management 1 LAN port (MGMT): RJ45, 10/100 Base-T auto-sensing, IEEE 802.3 1 UART console port: RJ45 to DB9 cable
PRODUCT VARIANTS
2220015007 NV-PL-048-F 48 port IP over two-wire switch, incl. net filter
2220015002 NV-PL-048 48 port IP over two-wire switch, for ICX-CAB-IP2W

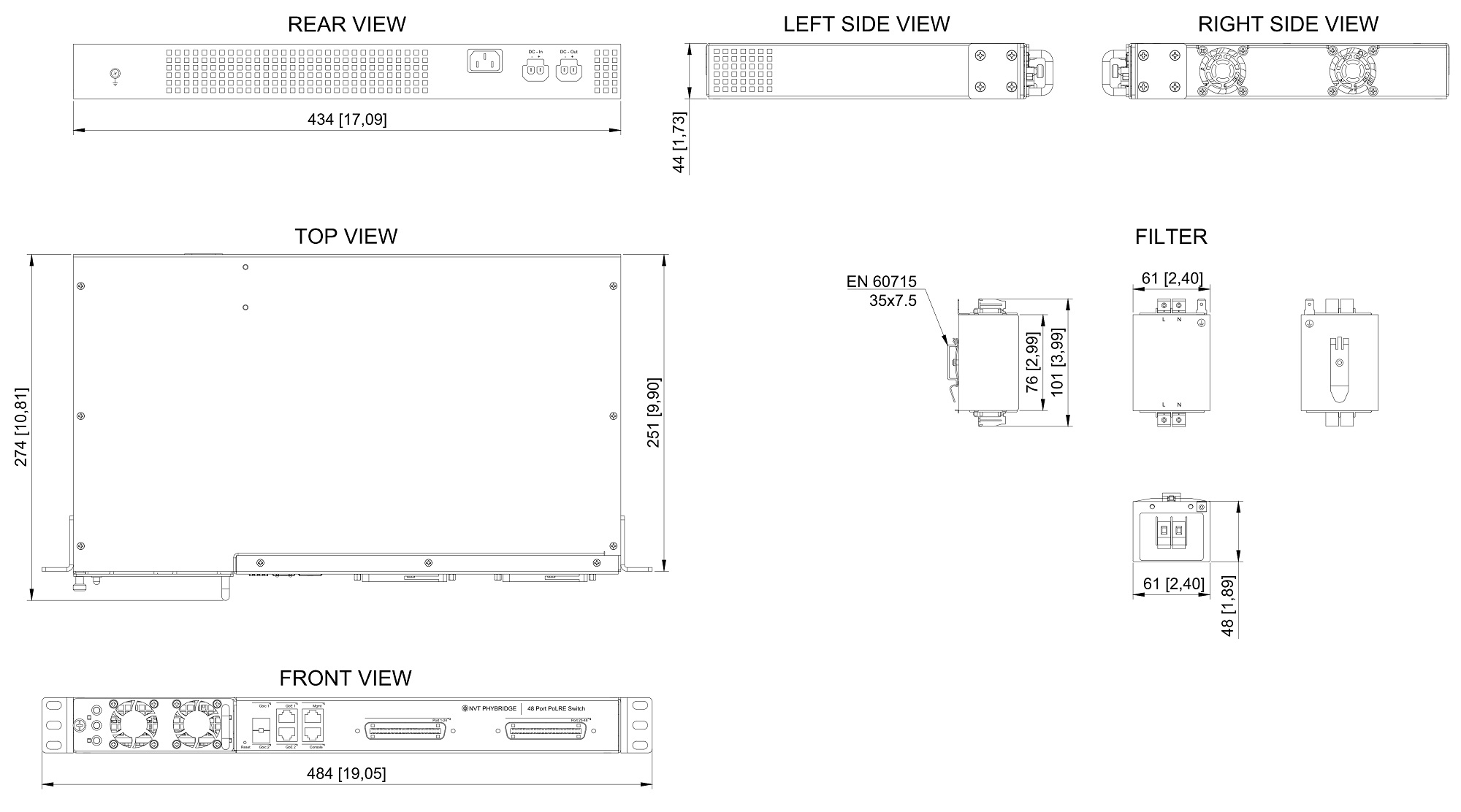

2220015007 - NV-PL-048-F - DimDraw
