UTP adapter for PoLRE switch, 6-pack

NV-PLLK-6 UTP Adapter for PoLRE switch

Item Number: 2220015004

UTP adapter

  • Powered from switch
  • PoE support
  • Sold as a 6 pack

The NV-PPL-6 UTP Adapter for PoLRE switch enables IP communication with PoE support over single pair UTP cables in combination with the NV-PL-024 and -048 switches. The adapter has a small form factor in order to make it easy to install next to intercom stations or other endpoint devices. The IP over two-wire solution is ideal for upgrading analog communication systems to modern IP based solutions or if the distances between the system rack and the field equipment exceeds the reach of standard ethernet cabling.

General Specifications
Weight 22 g
Interface Ethernet side: for IP endpoint device 1 RJ45 port: 10 Base-T
Power Consumption 0.9W
Power Injection (PoE) DC voltage on RJ45 port:
58V max
37V when 1200ft (365m) away from its PoLRE Switch powers Class 1, Class 2 and some Class 3 IEEE 802.3af compliant IP devices
Operating Temperature 32°F to 104°F (0°C to 40°C)
Humidity 10% to 95% (non-condensing) at 95°F (35°C) ADD
Casing Plastic
Wattage Delivery 22W
Dimensions (LxWxH) 6.5cm x 2.8cm x 1.8cm
Compliance and Agency Approval
EMC Emissions: FCC Part 15, ICES-003, EN 55032:2012 Class B Immunity: EN 55024:2010
Safety UL 60950-1 2nd Ed, CAN/CSA C22.2 No. 60950-1-07 IEC 62368-1:2014, EN 62368-1:2014, AS/NZS 62368.1:2018
Environment RoHS Directives 2011/65 and 2015/863

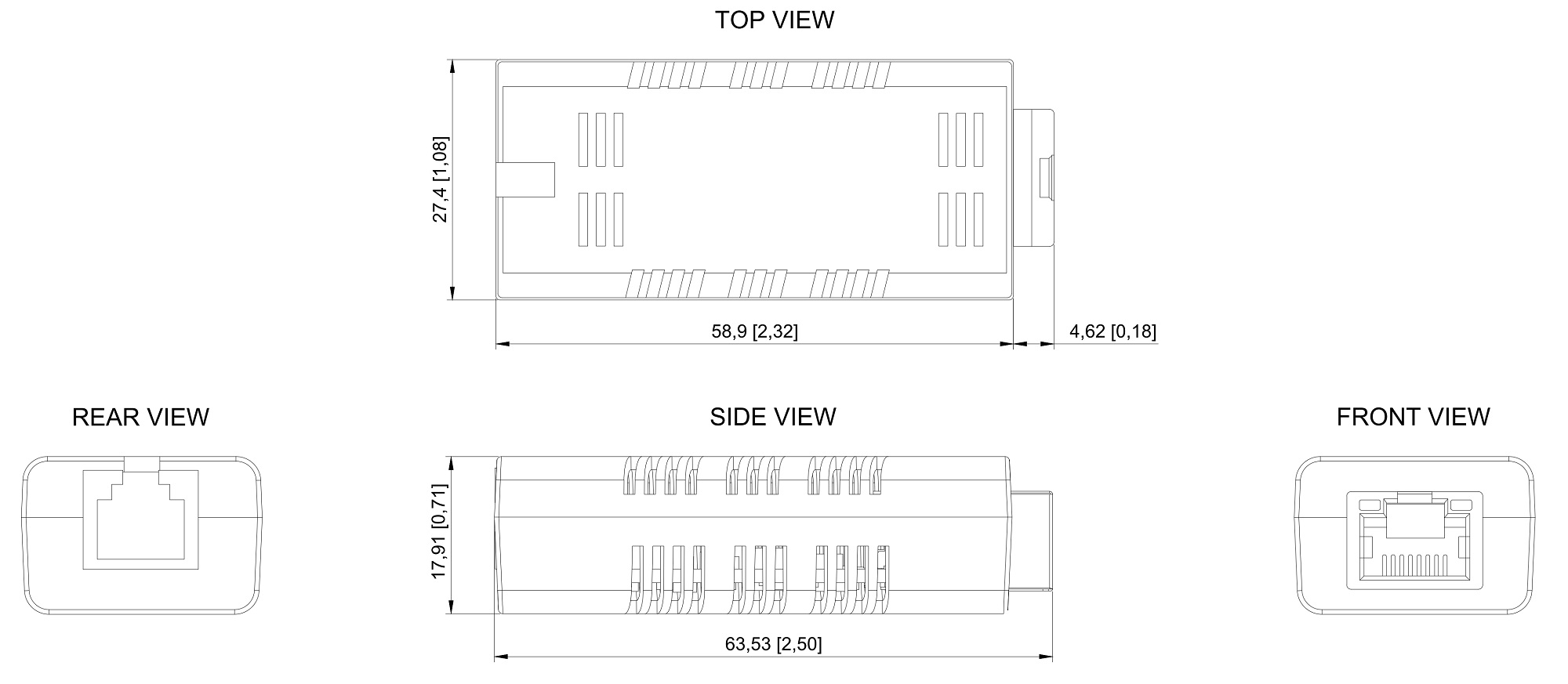

2220015004 - NV-PLLK-6 - DimDraw

Date Name Category Size Document
6.06.2024 MD-SDoC-2220015004-IHM-8003-57862-164800 Declaration 70.88 KB Login to download
25.01.2024 2220015004 - NV-PLLK-6 - Dimensional Drawing CAD 2D 310.09 KB Login to download
