NXWBS1 Stainless steel wall bracket for NXM36K

Item Number: 2310111198

Wall Mount

  • AISI 316L Stainless Steel
  • Wall Bracket with Joint

The NXWBS1 Wall Bracket for NXM36K, Stainless Steel is a heavy duty bracket made of AISI 316L thick gauge stainless steel. The rotation of the joint along the vertical and horizontal axes allows for a wide range of positions.

Specifications
Material AISI 316L electropolished stainless steel
Load rating 45kg
Dimensions 371x186mm
Unit Weight 2.5kg

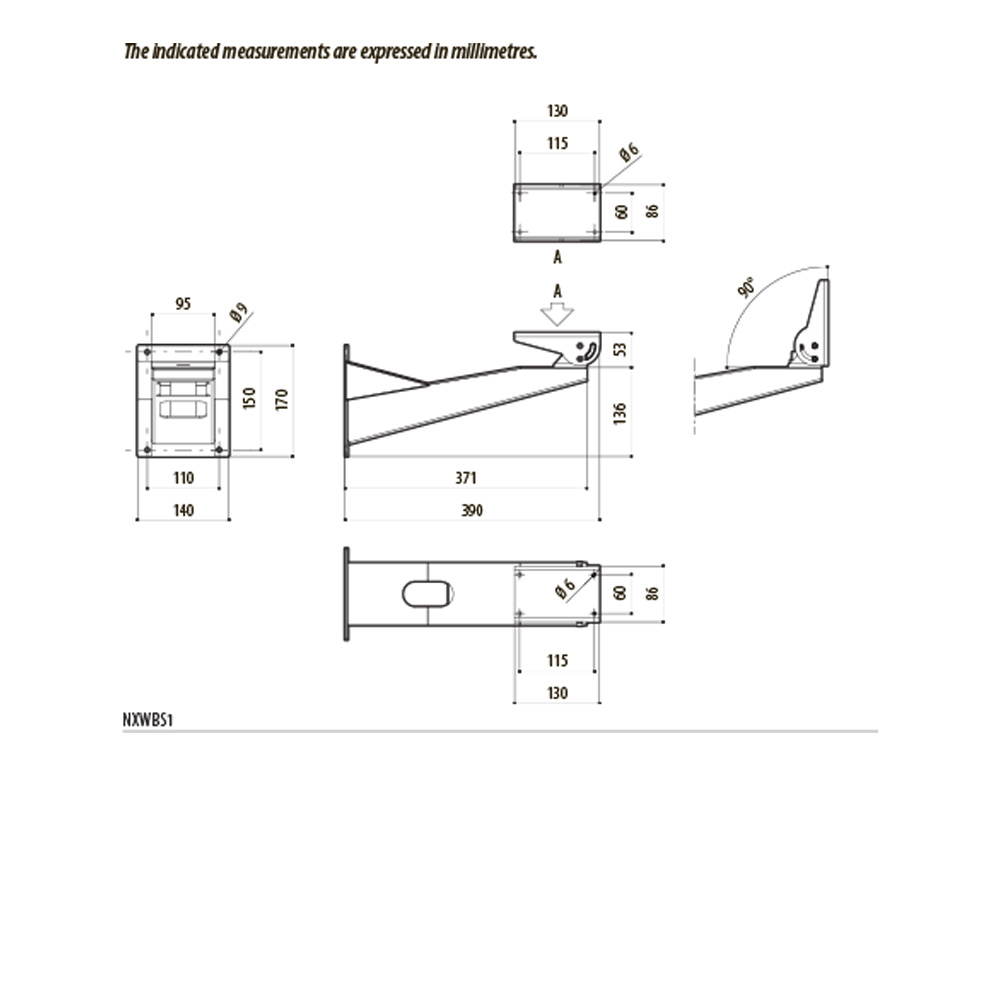

Dimensional Drawing NXWBS1 Stainless Steel Wall Bracket for NXM36K

Date Name Category Size Document
6.06.2024 MD-SDoC-2310111198-IHM-8003-57862-177327 Declaration 70.88 KB Login to download
