4 MP Anti Corrosion Network Dome Camera

OC-NDC-4MP

Item Number: 2310111178

4 MP Anti Corrosion Network Dome Camera

  • Up to 4 megapixel high resolution
  • 120dB Wide Dynamic Range
  • Three video streams
  • H.265, H.265+, H.264, H.264+
  • 6 behavior analyses, 2 exception detections, 1 recognition
  • Support on-board storage, up to 128GB
  • IR range: 10 m
  • DC 12V/PoE
  • Anti-Corrosion Standard: WF-2, NEMA 4X, C5-M
  • IP67
IP67 IP67
Video
Network

The OC-NDC 4MP has a SUS 316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras. It is IP67 water resistant, preventing water ingress for outdoor use. The camera supports H.265+/H.265/H.264+/H.264 encoding: efficient compression technology that saves storage space and reduces bandwidth requirements. The Lens angle adjustment allows the camera lens to be adjusted to manually focus in different directions (pan/tilt/rotate), for easy installation.

CAMERA
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2, AGC ON) ,0 Lux with IR on 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR on
Shutter Speed 1 s to 1/100,000 s, support slow shutter
Lens 4mm, horizontal field of view: 83°, vertical field of view: 44.7° 6mm horizontal field of view: 55.4°, vertical field of view: 30.4°
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
Angle Adjustment Tilt: 0° to 75°; Pan: -30° to 30°; Rotate: 0° to 360°
COMPRESSION STANDARD
Video Compression Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
H.264 Type Baseline profile/Main Profile/High profile
H.264+ Support
H.265 Type Main profile
H.265+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)
Max. Resolution 2560 × 1440
Main Stream 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720, 528 × 384)
Max. Frame Rate 60Hz: 24fps (2560 × 1440, 1920 × 1080, 1280 × 720, 528 × 384)
Sub Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Max. Frame Rate 60Hz: 24fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream 50Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Max. Frame Rate 60Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)
Image Enhancement BLC/3D DNR/Defog
Image Settings Rotate mode, saturation, brightness, contrast, etc., adjustable by client software or web browser
Region of Interest Support 4 customized region for each stream, and face dynamic tracking
Target Cropping Support
Day/Night Switch Auto/Schedule/Triggered by Alarm In
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
NETWORK
Network Storage Support Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
Standard ONVIF (PROFILE S, PROFILE G), ISAPI
General Function Mirror, anti flicker, heartbeat, watermark, password protection, privacy mask
INTERFACE
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm 1 alarm input, 1 alarm output
On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
SMART FEATURE SET
Behavior Analysis Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Line Crossing Detection Cross a pre-defined virtual line
Intrusion Detection Enter and loiter in a pre-defined virtual region
Region Entrance Detection Enter a pre-defined virtual region from the outside place
Region Exiting Detection Exit from a pre-defined virtual region
Unattended Baggage Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections Scene change detection, defocus detection
Face Detection Human face appears in the image can be detected and trigger linkage method
GENERAL
Operating Conditions -30°C to +60 °C (-22 °F to +140 °F), Humidity less than 95% (non-condensing)
Power Supply DC 12V, 0.4A, 5W, terminal block PoE (802.3af, class 3), 0.1A
Power Consumption Max. 5W
IR Range 10 m
Housing Material SUS 316L
Anti-Corrosion Standard WF-2, NEMA 4X
C5-M: 720H neutral salt spray, 480H water condensation;
Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity;
Interior environments: buildings or areas with almost permanent condensation and with high pollution.
Ingress Protection IP67
Dimensions Camera: Φ 113 × 77.3 mm (4.45″ × 3.04″) Package: 257 × 167 ×145 mm (10.12″ × 6.57″ × 5.71″)
Weight Camera: 1680 g (3.7 lb.)
Approval
EMC FCC: FCC SDoC(ANSI C63.4,FCC Part15 sub B)
CE: CE EMC(EN 50130 4:2011+A1:2014,EN 55032:2015,EN 61000 3 2:2014,EN 61000 3 3:2013)
RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015
IC: IC VoC(ICES 003 Issue 7:2020)
KC: KN 301489 1,KN 301489 17,RRA NOTICE 2017 14(2017.12.05),RRA NOTICE 2017 19(2017.12.28)
Safety UL: UL 60950 1:2014,CAN/CSA C22.2 No. 60950 1 07:2014
CB: IEC 60950 1
Environment CE: CE RoHS(RoHS Directive 2011/65/EU+2015/863)

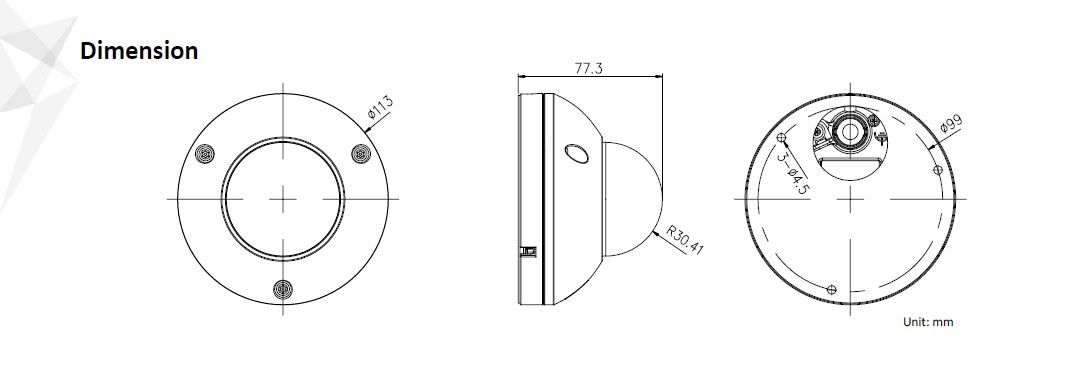

dimensional drawing OC-NDC-4MP
