ODS-1500EU

Item Number: 2990050012

Inverter 1500VA 24VDC to 230VAC

  • DNV approved

This DNV-approved inverter ODS-1500 is a robust DC/AC inverter designed specifically for industrial and marine environments. This single-phase sinusoidal inverter delivers up to 1500W of active power. It operates at an input voltage of between 16,8-30Vdc and an output voltage of 230VAC, ideal for a wide range of marine applications. The output voltage can be conveniently monitored and adjusted, along with other parameters, via RS232 through an application available with all models​​.

Enhanced with a tropicalized circuit for improved robustness, this model is built to withstand the demanding conditions of marine environments. It is designed for chassis mounting and a rackmount kit is available as well. An internal fan ensures efficient cooling, leading to an impressive efficiency of up to 91%​​.

The ODS-1500 is equipped with advanced protection features, including maximum average power protection and maximum output peak current protection. These safeguards protect the unit, even in the event of an output short-circuit.

General
Range Output Voltage 230 VAC
Output Power 1500 W
Efficiency 91 %
Number of outputs 1
Input Voltage DC 16,8 ~ 30 VDC
Max operate temperature +55 °C
Min operate temperature -25 °C
Dimensions (WxHxD) 160mm x 69mm x 385mm
Weight 3,8 Kg
MTBF 130 000 hours
Product variants
2990050012 Inverter 1500VA 24 Vdc to 230 Vac
2990050013 Inverter 3000VA 24 Vdc to 230 Vac
2990050021 Inverter 750VA 24 Vdc to 120Vac
2990050022 Inverter 1500VA 24 Vdc to 120 Vac
2990050031 Inverter 750VA 48 Vdc to 230 Vac approx.660W

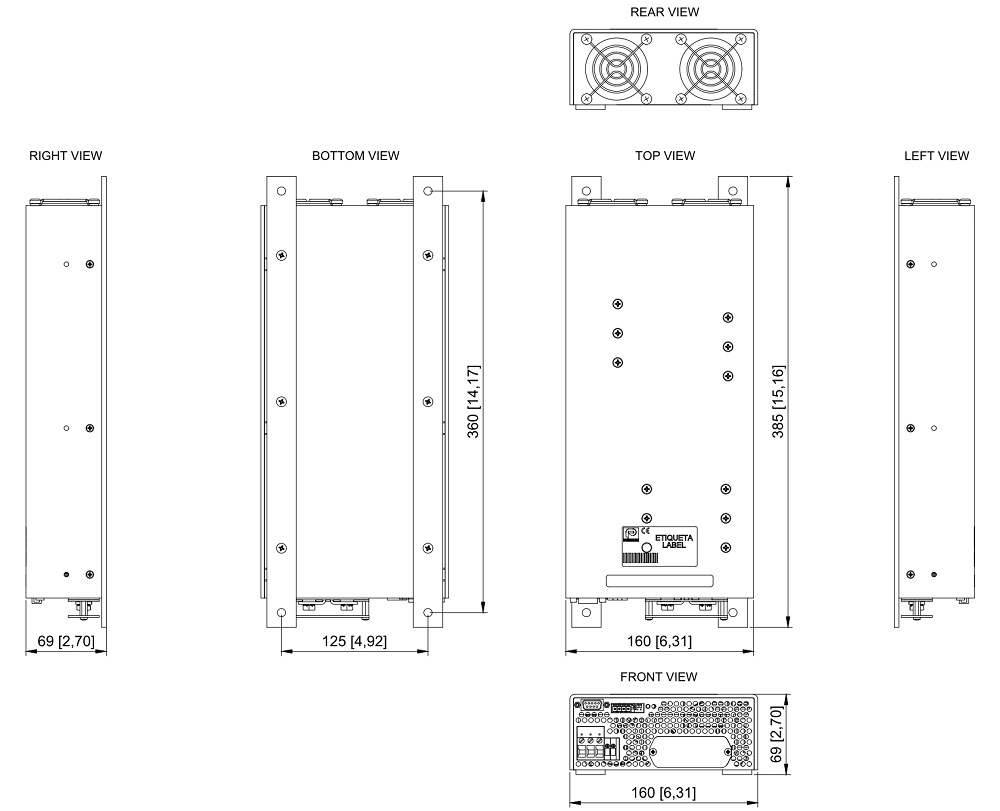

2990050012_ODS-1500_DimDraw

Date Name Category Size Document
12.10.2023 2990050012 - ODS-1500 Dimensional Drawing CAD 2D 2.1 MB Login to download
7.07.2023 MD-SDoC-2990050012-IHM-8003-41724-18519 Declaration 72.17 KB Login to download
16.10.2020 ODS_REACH.pdf 514.62 KB Download
16.10.2020 ODS_RoHS3.pdf 199.37 KB Download
16.10.2020 ODS_Conflict_minerals.pdf 316.43 KB Download
