ODS-750EU

Item Number: 2990050011

Inverter 750VA 24 Vdc to 230 Vac

  • DNV approved

The ODS-750EU is an industrial 750W inverter with input- and output alarm. It has a selectable output frequency between 50 or 60 Hz, remote inhibit and a High input-output isolation of 3000Vrms.

General
Range Output Voltage 230 VAC
Output Power 750 W
Efficiency 86 %
Number of outputs 1
Input Voltage DC 18 ~ 30 VDC
Max operate temperature +55 °C
Min operate temperature -25 °C
Dimensions (WxHxD) 130 mm x 50 mm x 270 mm
Weight 1.95 Kg
MTBF 160K hours
Product variants
2990050012 Inverter 1500VA 24 Vdc to 230 Vac
2990050013 Inverter 3000VA 24 Vdc to 230 Vac
2990050021 Inverter 750VA 24 Vdc to 120Vac
2990050022 Inverter 1500VA 24 Vdc to 120 Vac
2990050031 Inverter 750VA 48 Vdc to 230 Vac approx.660W

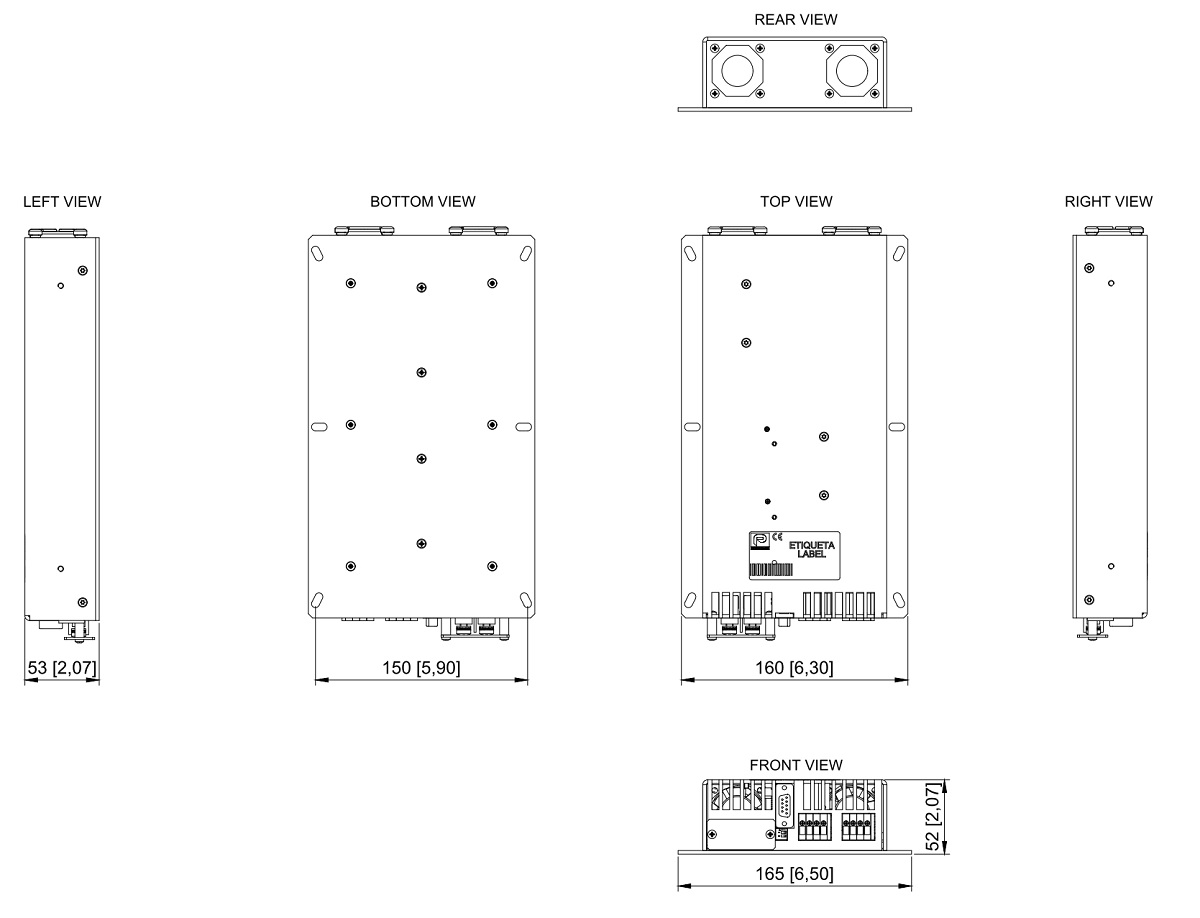

2990050011_ODS-750_DimDraw

Date Name Category Size Document
18.12.2023 2990050011 - ODS-750 - DNV - TAE0000447 Certificate 67.06 KB Download
12.10.2023 2990050011 - ODS-750 Dimensional Drawing CAD 2D 525.81 KB Login to download
7.07.2023 MD-SDoC-2990050011-IHM-8003-41724-19775 Declaration 72.16 KB Login to download
16.10.2020 ODS_ISO_14001_2015.pdf 204.15 KB Download
16.10.2020 ODS_REACH.pdf 514.62 KB Download
