P-4053

Item Number: 4000015155

Junction Box for VSP - Up to 12 telephones

Marine 40x40 ico Onboard communication
Mechanical
Dimensions (WxHxD) 360x160x90mm
Weight 2.8 kg
Color RAL 7000
Material Polyester
Mounting Wall
Fixing 4 x M6 bolts
Access Front
Cable Entry Bottom/Top
Cable Gland Optional (12x PG21 or M40 max)
Electrical

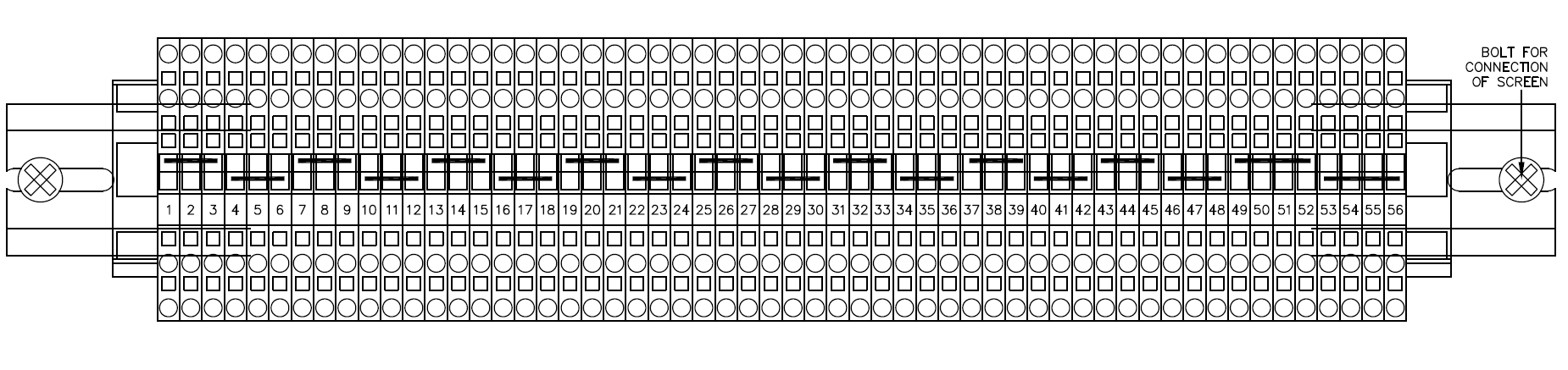

Termination 3x16 + 4x2 (56) pcs Wago 2002-1401 0.25 - 2.5 mm²
Compass Safe Distance > 5 m
Environmental
Temperature -25°C to +55°C (Storage: -25°C to +70°C)
Humidity +93% (at +40°C)
Ingress Protection Rating IP-56
