VSPM-JB-20

Item Number: 3006200063

Junction Box for VSP - Up to 20 telephones

Marine 40x40 ico Onboard communication
IP66 IP66

The VSPM-JB-20  is a junction box for up to 20 telephones in our VSP series (Batteryless Telephones).

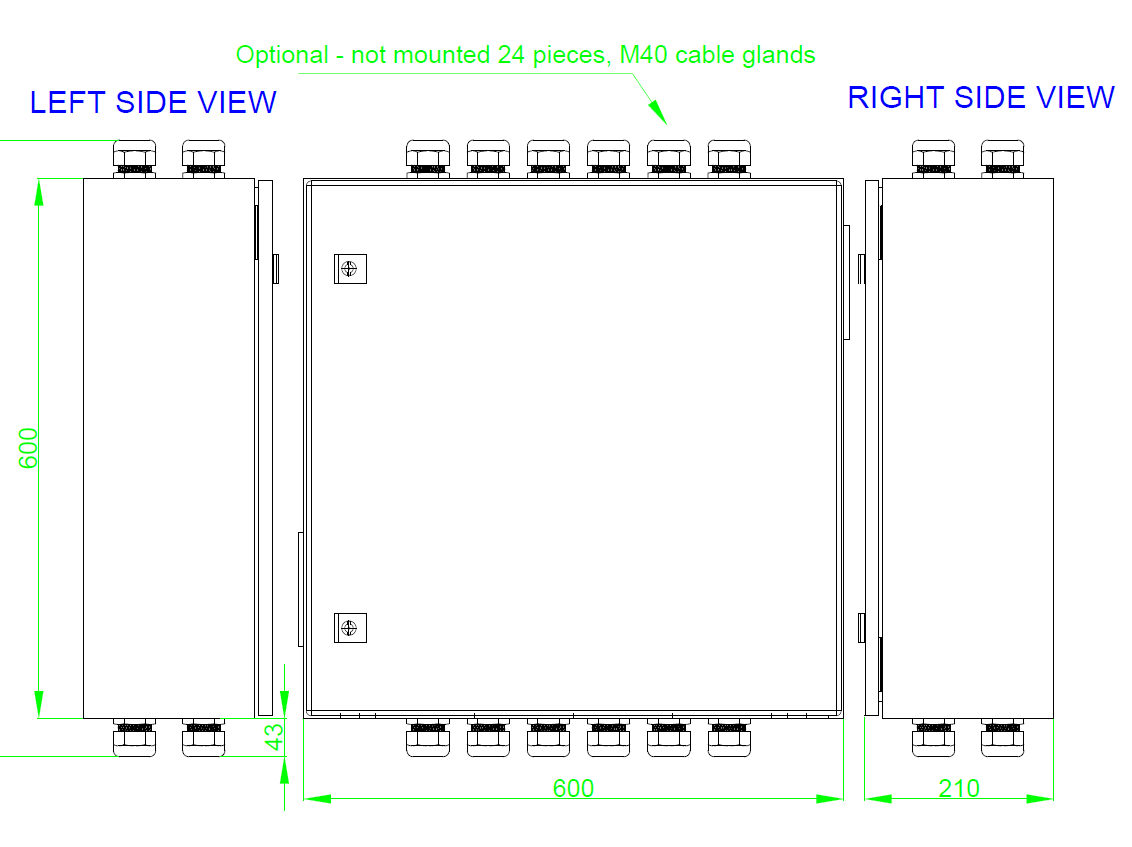

The cabinet is in painted sheet steel with seals and holds IP66 rating (if the optional cable glands are used). The cabinet is from world leading supplier Rittal with lockable front.

From the outside there are optional 24pcs M40 cable glands and on the inside, we have placed a 6x17 terminals (0.25 - 2.5 mm²)

Mechanical
Dimensions (WxHxD) 600x600x210 mm
Weight 25 kg
Color RAL 7035
Material Painted Sheet steel
Mounting Wall
Fixing 4 x M8 bolts
Access Front
Cable Entry Bottom lid (open) - Bottom/Top (cable glands)
Cable Gland (Optional) 24 pcs M40 (max)
Electrical
Termination 6x17 (102) pcs Wago 2002-1401 0.25 - 2.5 mm²
Compass Safe Distance > 5 m
Environmental
Temperature -25°C to +55°C (Storage: -25°C to +70°C)
Humidity +93% (at +40°C)
Ingress Protection Rating IP-66 (when bottom lid is on and cable glands are used)
