P-6211

Item Number: 4000200300

Industrial Telephone

  • Integrated loudspeaker/microphone
  • Handset, 2 meter sturdy curled cord
  • Hands-free, duplex communication
  • 2” Graphic backlit display:
    • Menus and navigation wheel/key
    • Contact list
    • Caller ID
  • Dimmable backlight (keypad)
  • Privacy switch (Do not disturb) with priority override
  • Manual PTT (push-to-talk) key
  • 3 pcs programmable direct access keys (A-B-C)
  • Volume adjustment with override
  • Speakerphone SPL level >85dB(A) (integrated loudspeaker)
  • Bulkhead mounted
  • MMI according to IEC 62288 Ed 2.0
  • Status/health indicator
  • Multiple ring melodies
  • Integrated call relay for external signal device
  • Output to external loudspeaker, 8 W; SPL level > 110dB (loudspeaker dependent)
  • Headset connection
  • Complies with IEC 60945 Standard for Marine Equipment
  • DNV/ABS/RMRS/CCS type approval and compatible with NORSOK

The P-6211 is equipped with an amplifier for additional external loudspeaker and relay for external call signal devices (beacon, siren, etc.). The unit is bulkhead mounted.

Mechanical
Dimensions (WxHxD) 144 x 216 x 120 mm
Weight 1.1 kg
Material Plastic (PC/ASA)
Color Grey – RAL 7021/7043
Mounting Bulkhead / Direct or Bracket
Fixing 4 x M4 bolts
Access Front
Cable Entry Side / Bottom – through Glands (optional)
Connector Type Terminals (P2.8/P2.9, screen P2.10)
Electrical
Power Supply System / Line feed (Basic telephone operation). Additional 24V/1.5A input for call relay and amplifier for external loudspeaker.
Line Format UpN (Digital 2Wire – 2B+D)
Power Consumption 10W (max – external loudspeaker)
Termination Line: RJ45, two center cores. External loudspeaker/external signal device, etc: clamp terminals.
Compass Safe Distance >5 m
External loudspeaker 8W / 20Ω
External signal device, Call relay 6.3A (max)
Environmental
Temperature -25°C to +55°C
Humidity +93% (at +40°C)
Ingress Protection Rating IP-56 (exposed)
UL94 V0

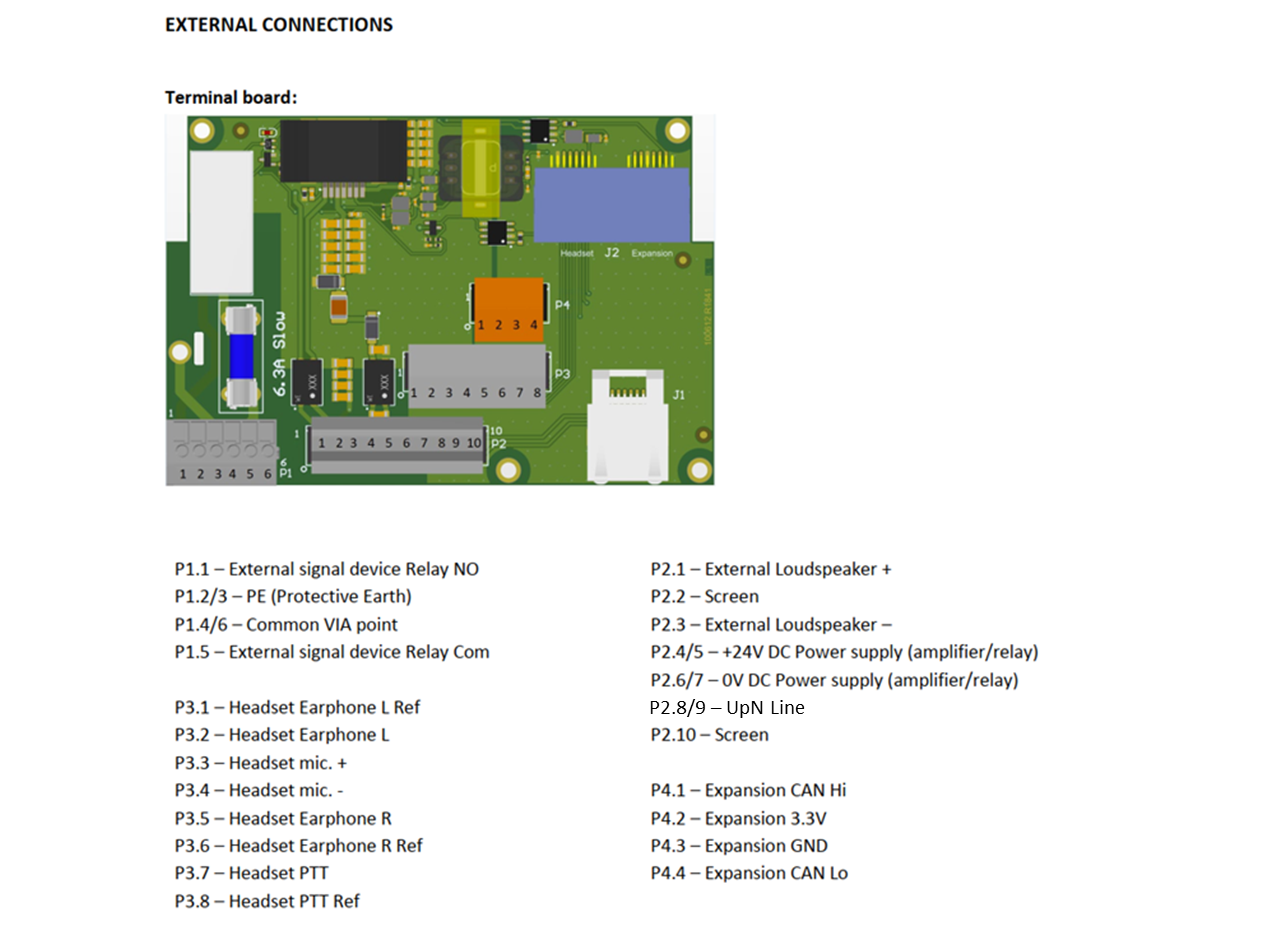

UpN connections

Date Name Category Size Document
10.09.2023 MD-SDoC-4000200300-IHM-8003-41772-117699 Declaration 72.15 KB Login to download
28.12.2022 Installation_Manual_ICS_6200_Web_version_K.pdf Manual 20.71 MB Download

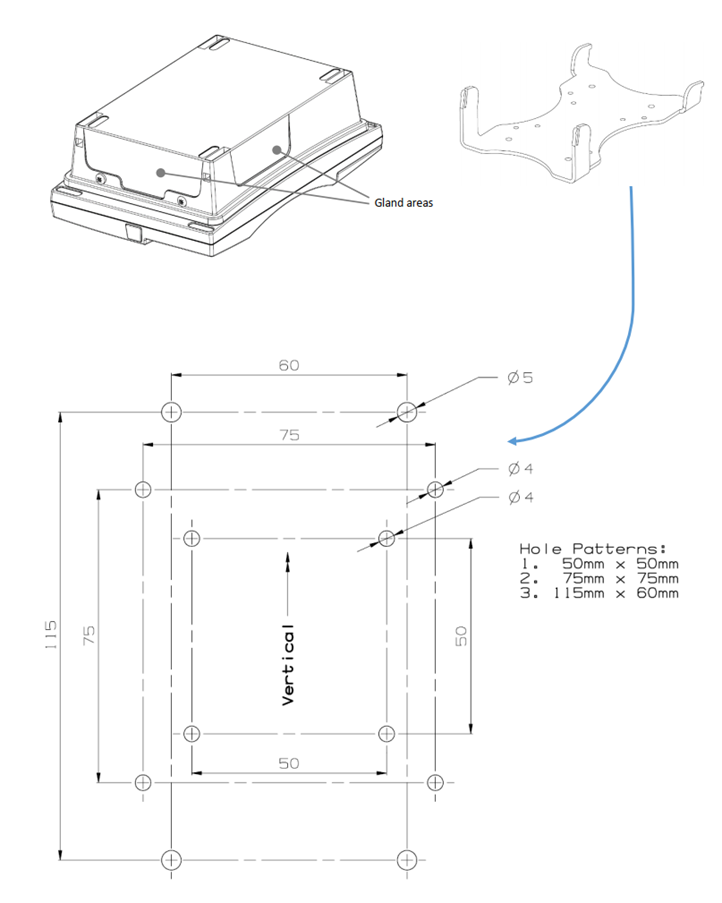

P-6211 bracket
