P-7210

Item Number: 4000200200

Desktop/Wall VoIP Telephone

  • Integrated loudspeaker / microphone
  • Handset, 2-meter sturdy curled cord
  • Hands-free, duplex communication
  • 2” Graphic backlit display:
    • Menus and navigation wheel/key
    • Contact list
    • Caller ID
  • Dimmable backlight (keypad)
  • Privacy switch (Do not disturb) with priority override
  • Manual PTT (push-to-talk) key
  • 3 pcs programmable direct access keys (A-B-C)
  • Volume adjustment with override
  • Speakerphone SPL level >85dB(A)
  • Desk or bulkhead mounted
  • MMI according to IEC 62288 Ed 2.0
  • Status/health indicator
  • Multiple ring melodies
  • 2-port 100Mbit Ethernet switch for data connectivity
  • Complies with IEC 60945 Standard for Marine Equipment
  • DNV/ABS/RMRS/CCS type approval and compatible with NORSOK

The P-7210 Telephone is an indoor accommodation unit, normally used in cabins, offices, etc. This is a VoIP station with handset, loudspeaker, internal microphone, memory functions and more. The unit can be desk or bulkhead mounted.

Mechanical

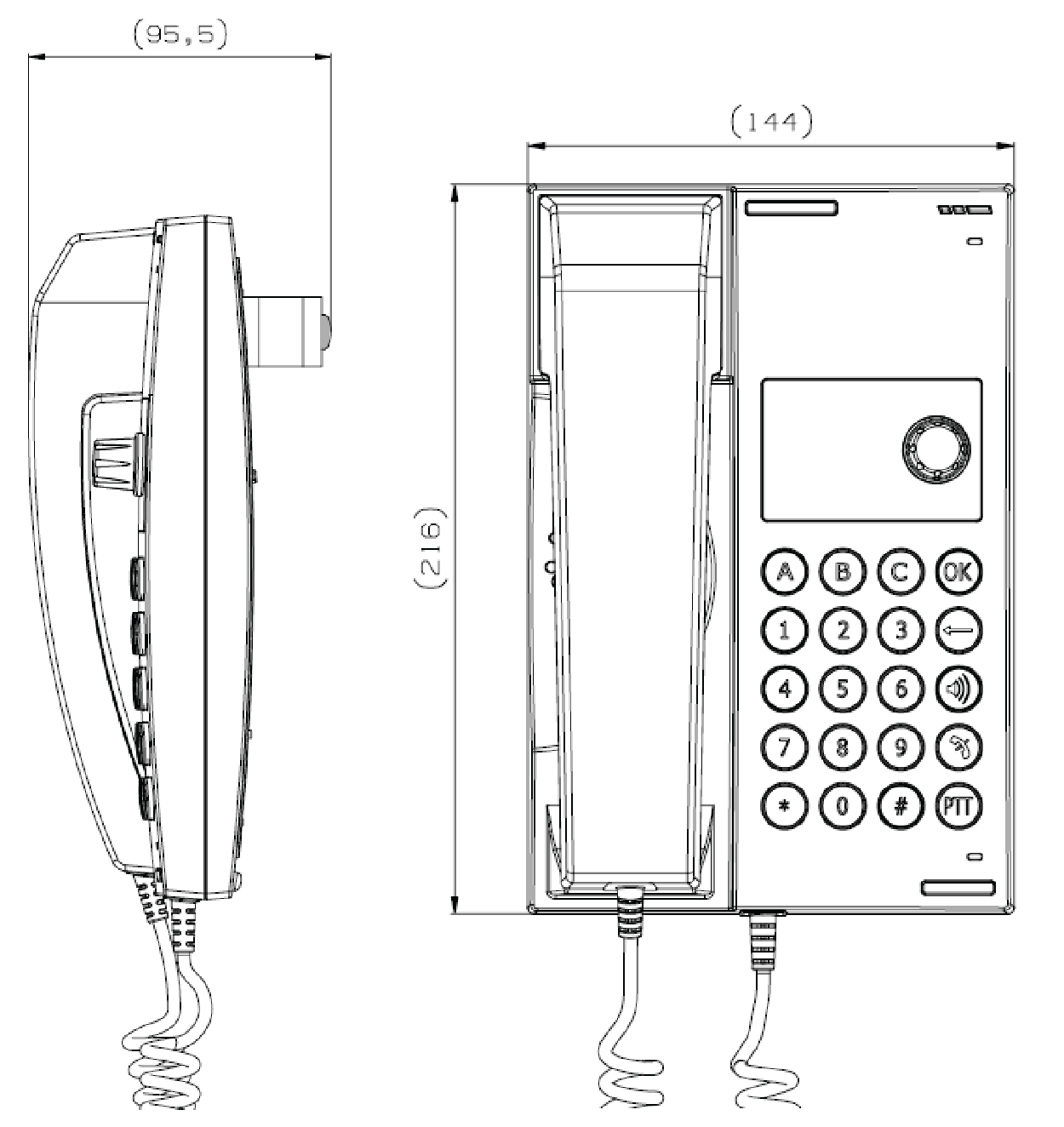

Dimensions (WxHxD) 144 x 216 x 95.5 mm
Weight 0.9 kg
Material Plastic (PC/ASA)
Color Grey – RAL 7021/7043
Mounting Table / Wall with wall contact
Fixing Bulkhead: 2 x M4 bolts
Access Front
Cable Entry Rear
Connector Type RJ45 (line) / RJ12 (headset)
Electrical
Power Supply PoE / 24VDC (Optional external power)
Line Format VoIP, PoE
Power Consumption 3 W (max)
Termination RJ45
Compass Safe Distance >5 m
Environmental
Temperature -15°C to +55°C
Humidity +93% (at +40°C)
Ingress Protection Rating IP-22 (protected environment)
UL94 V0
